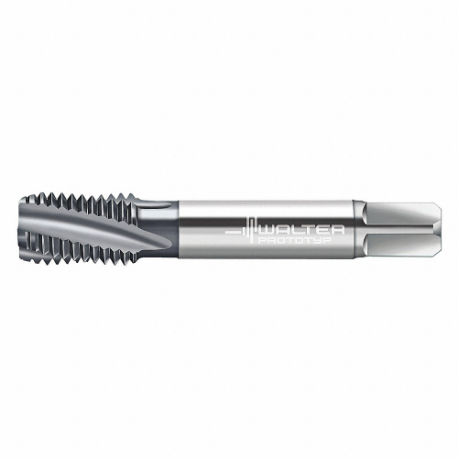

WALTER TOOLS A2345606-UNF7/8 Spiral Flute Tap, 7/8-14 Thread Size, 32 mm Thread Length, 119 mm Length | CU9DZP 427T67

WALTER TOOLS A2345606-UNF7/8 5347910 Spiral Flute Tap, 7/8-14 Thread Size, 32 mm Thread Length, 119 mm Length

Item: CU9DZPModel: A2345606-UNF7/8Cross Ref: 427T67 / 5347910
7 In Stock

Ships within 2 days via

€306.00 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Spiral Flute Tap
55% Thread Drill Size 20.9 mm
65% Thread Drill Size 13/16"
75% Thread Drill Size 20.4 mm
Clamping Width 0.523"
Class Of Fit Class 3B
Connection Dia. 0.697"
Coolant Fed Non Coolant Through
Drill Bit Size 0.803"
Driving Square Length 3/4"
Extended Neck Yes
Features For Long Chipping Materials
Finish TiCN
Functional Length 4.685"
Helix Angle 15°
Measurement System Fractional Inch
No. Of Flutes 4
No. Of Grooves 4
Overall Length 119 mm
Primary Material Application Nickel, Steel, Titanium
Primary Material Application Iso Code P, S
Secondary Material Application Aluminum, Brass, Bronze, Copper
Secondary Material Application Iso Code N
Shank Dia. 17.7 mm
Shank Length 49 mm
Shank Type-machining Straight
Spiral Direction Right Hand
Square Size 13.28 mm
System Of Measurement Imperial
Tap Chamfer Modified Bottoming, Semi Bottoming
Tap Finish TiCN
Tap Material High Speed Steel
Tap Style Spiral Flute
Tap Thread Size 7/8"-14
Tap Type Spiral Flute
Thread Direction Right Hand
Thread Length 32 mm
Thread Limit H4
Thread Limit/class Of Fit H4, 3B
Thread Size 7/8"-14
Thread Standard Fine
Thread Type UNF
Threads Per Inch 14
Usable Length 2.756"

Shipping Info:

Ship weight (kg) 0.1
Ship height (cm)2.54
Ship length (cm)11.9
Ship width (cm)2.54
Country of OriginDE

Product Variants

ProductModelThread SizeThread LengthThread DirectionThread LimitOverall LengthTap Finish75% Thread Drill SizeTap MaterialPrice
WALTER TOOLS A2340876-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWM 427T39 A2340876-UNF0#0-805.5 mmRight HandH141.3 mmTiCN1.2 mmHigh Speed Steel€129.31
WALTER TOOLS A2340806-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWN 427T32 A2340806-UNF0#0-805.5 mmRight HandH141.3 mmTiCN1.2 mmHigh Speed Steel€116.12
WALTER TOOLS 224101-UNJC10 Spiral Flute Tap, #10-24 Thread Size, 13.50 mm Thread Length, 70 mm Length | CU9CWT 427C96 224101-UNJC10#10-2413.5 mmRight Hand3B70 mmBright#25High Speed Steel€154.44
WALTER TOOLS 224164-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length | CU9CWU 427D31 224164-UNC10#10-2416 mmRight HandH2, H370 mmBright#25High Speed Steel€96.88
WALTER TOOLS 22416-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWV 427D37 22416-UNC10#10-2416 mmRight HandH3, H470 mmBright#25High Speed Steel€80.15
WALTER TOOLS 224102-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWW 427D04 224102-UNC10#10-2416 mmRight HandH3, H470 mmBright#25High Speed Steel€87.24
WALTER TOOLS P22509-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length | CU9CWY 428Z45 P22509-UNC10#10-248 mmRight HandH2, H370 mm-#25High Speed Steel€59.04
