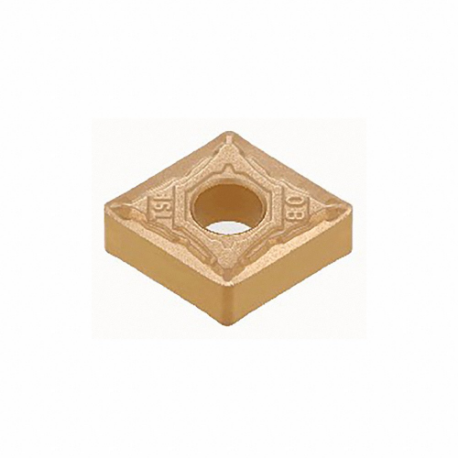

TUNGALOY 6772152 Turning Insert, Neutral/16 Inch Thick, 0.0470 Inch Corner Radius
Item: CU7DHFModel: 6772152Cross Ref: 60WH85
7 In Stock
Ships within 2 days via
5.00% off
€23.23 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CNMG120412-TSF |
| Chip Breaker | Yes |
| Chip-breaker Code | TSF |
| Chip-breaker Style | Yes |
| Coating Process | CVD |
| Corner Radius | 0.047" |
| Cutting Application | Finishing |
| Cutting Depth | 0.2 mm to 1.5 mm |
| Cutting Direction | Neutral |
| Cutting Edge | Rounded |
| Cutting Edge Length | 0.5" |
| Cutting Material Coverage | Multi Mini Tip |
| Finish-machining | Ticn+Al2O3+Tin |
| General Shape | Rhombic |
| Hole Type | Through Hole |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Code | CNMG433 |
| Insert Holding Type | Straight Hole |
| Insert Style | CNMG |
| Iso Number | CNMG120412 |
| Manufacturer Grade | Grade T9215 |
| Material | Carbide |
| Material-machining | Carbide |
| No. Of Cutting Edges | 2 |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Rake | 0° |
| Shape | Rhombic |
| System Of Measurement | Metric |
| Thickness | 3/16" |
| Through Hole Inside Dia. | 5.16 mm |
| Width | 4.76 mm |
| Wiper Insert | Yes |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Cutting Edge Length | Thickness | Material-machining | Manufacturer Grade | Primary Material Application Iso Code | Finish-machining | Cutting Depth | Secondary Material Application Iso Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6843406 | 0.256" | 3/32" | Carbide | Grade KS05F | K, N, S | Bright (Uncoated) | 0.1654" | - | €24.66 | |
 |
6837456 | - | 0.078" | - | - | M, P, S | - | - | M, P, S | €37.12 | |
 |
6888191 | 0.075" | 5/64" | CBN | Grade BX310 | H | Bright (Uncoated) | - | - | €92.01 | |
 |
6850126 | 0.508" | 3/16" | Carbide | Grade T5105 | K | Ticn+Al2O3+Tin | - | - | €22.54 | |
 |
6850129 | 0.508" | 3/16" | Carbide | Grade T5115 | - | Ticn+Al2O3+Tin | - | K | €21.95 | |
 |
6864987 | 0.256" | 3/32" | Carbide | Grade AH725 | S | TiAlN | - | K, M, P | €16.92 | |
 |
6857017 | - | 5/32" | Carbide | Grade AH725 | S | TiAlN | - | K, M, P | €31.12 |
