TEMPCO MTA01189 Thermocouple Probe, Type K, Grounded, 1/8 x 24 Inch Probe Size, Rounded Tip
Item: AC8HRZModel: MTA01189Cross Ref: 3AEY6
7 In Stock
Type K
1/8" x 24"
Grounded
Ships within 2 days via
5.00% off
€74.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thermocouple Probe |
| Accuracy | ±2.2°C Or ±0.75% |
| Alloy Type | Alloy 600 |
| Connector Type | Mini Plug With Mating Jack |
| Error Accuracy (%) | (Over 293 C) +/-0.75 |
| Error Accuracy (deg. C) | +/-2.2 Below 293 |
| For Air | Yes |
| For Application | Appliances, Duct, Food And Beverage, HVAC, Ovens, Packaging, Pharmaceutical |
| For Gases | Yes |
| For Liquids And Gels | Yes |
| For Solids | Yes |
| For Surfaces | No |
| Grounded/ungrounded | Grounded |
| Included Thermowell | No |
| Insulation Material | Magnesium Oxide |
| Junction Type | Grounded |
| Material | Inconel |
| Max. Pressure | 1000 psi |
| Max. Temp. | 1260°C , 2300°F |
| Max. Wire Gauge | 0.25 mm |
| Min. Temp. | 0°C , 32°F |
| Plug Or Connector Type | Mini Plug |
| Probe Bend | Straight |
| Probe Dia. | 0.125" , 1/8" |
| Probe Length | 24" |
| Probe Sheath Material | Inconel 600 |
| Probe Size | 1/8" x 24" |
| Probe Tip Dia. | 1/8" |
| Product Type | Thermocouple Probe |
| Sensor Type | Thermocouple |
| Sheath Size | 0.125" , 1/8" |
| Sheath Size (in.) | 0.125 |
| Temp. | 32°F to 2300°F |
| Temp. Limit | 2100°F |
| Temp. Limit (deg. F) | 2100 |
| Thermocouple Element | 24 AWG |
| Thermocouple Type | K |
| Thermocouple Type | Type K |
| Tip Style | Rounded |
| Type | K |
| Wire Size | 24 AWG |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 78.49 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 3.81 |
| HS code | 9025198080 |
| Country of Origin | US |
Product Variants
| Model | Probe Dia. | Type | Material | Insulation Material | Temp. | Probe Sheath Material | Probe Size | Cable Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TTW00179 | 0.188" | J | Stainless Steel | Fiberglass | 32°F to 1400°F | Grade 304 Stainless Steel | 3/16" x 12" | 6 ft. | €42.57 | |
| TTW00180 | 0.188" | K | Stainless Steel | Fiberglass | 32°F to 2300°F | Grade 304 Stainless Steel | 3/16" x 3" | 3 ft. | €32.64 | |
| TTW00181 | 0.188" | K | Stainless Steel | Fiberglass | 32°F to 900°F | Grade 304 Stainless Steel | 3/16" x 6" | 6 ft. | €48.58 | |
| TTW00182 | 0.188" | K | Stainless Steel | Fiberglass | 32°F to 2300°F | Grade 304 Stainless Steel | 3/16" x 12" | 6 ft. | €58.07 | |

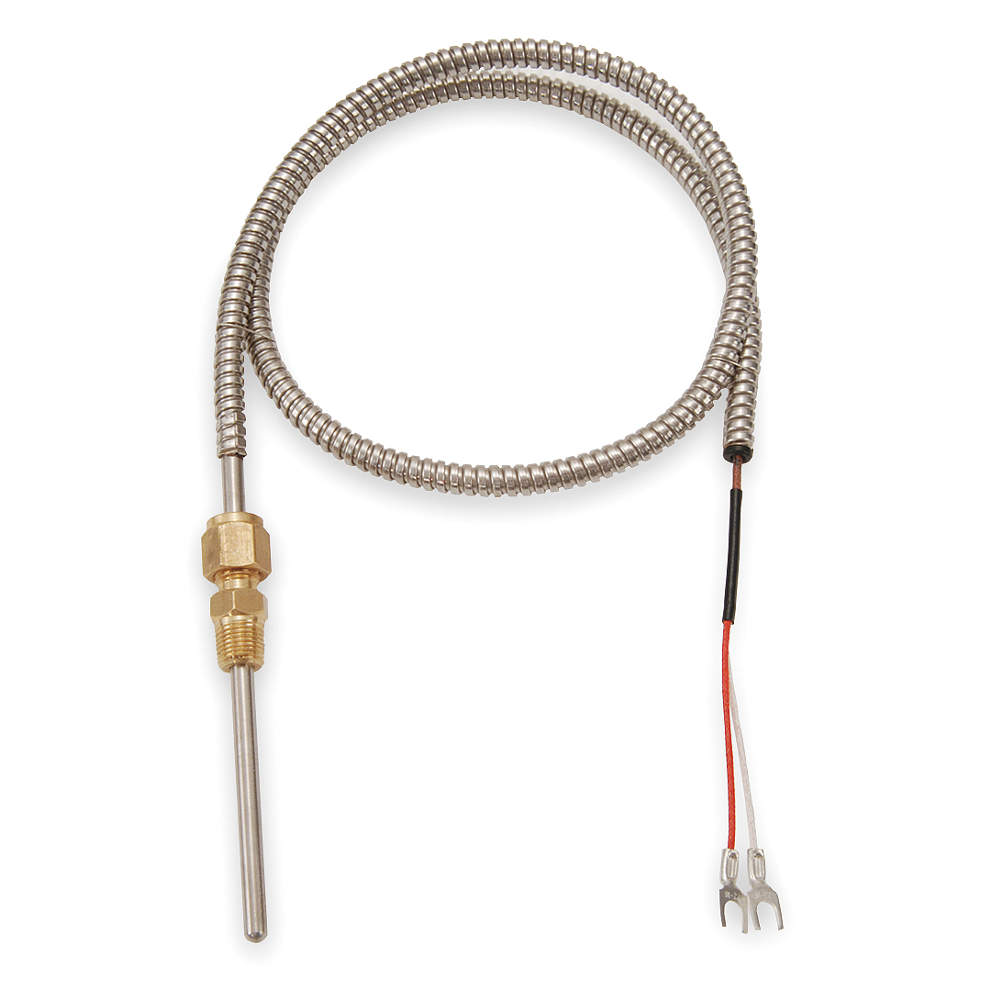

| TCP60089 | 0.188" | J | Stainless Steel | Fiberglass | 32°F to 1400°F | Grade 304 Stainless Steel | 3/16" x 4" | 6 ft. | €70.70 | |
| TCP60090 | 0.188" | J | Stainless Steel | Fiberglass | 32°F to 1400°F | Grade 304 Stainless Steel | 3/16" x 4" | 8 ft. | €85.04 | |
| TCP60091 | 0.188" | J | Stainless Steel | Fiberglass | 32°F to 1400°F | Grade 304 Stainless Steel | 3/16" x 4" | 10 ft. | €100.23 |
