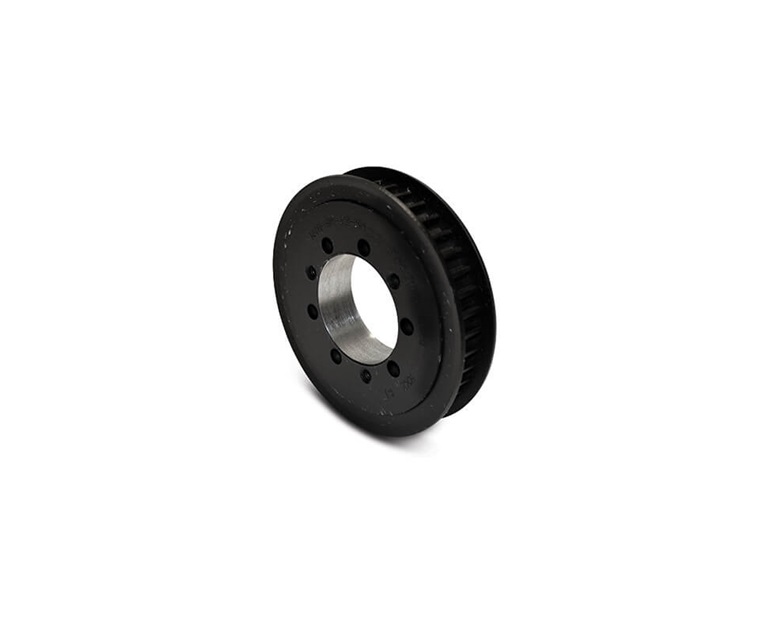

TB WOODS W488M12 QT Power Chain Belt Sprocket, Cast Iron, 12mm Belt Width, 4.812 inch Pitch Dia.
Item: AK6XCFModel: W488M12
7 In Stock
48
Ships within 2 days via
€314.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Belt Width | 12 mm |
| Bore Type | Quick Disconnect Bushing |
| Bushing | SDS |
| Construction | Plain |
| Dimension E | 0.55" |
| Dimension L | 1.31" |
| Dimension M | 0.06" |
| Face Width | 0.83" |
| Hub Length | 1 1/4" |
| Hub Location | 2/25" |
| Inside Dia. | 3 4/5" |
| Material | Cast Iron |
| Max. Rpm | 5260 RPM |
| Number Of Teeth | 48 |
| Outside Dia. | 4 19/25" |
| Pitch Dia. | 4.812" |
| Rpm High | 5260 RPM |
| Rpm High | 5,260 rpm |
Shipping Info:
| Ship weight (kg) | 1.17 |
| Ship height (cm) | 12.09 |
| Ship length (cm) | 12.09 |
| Ship width (cm) | 1.19 |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Belt Width | Max. Rpm | Rpm High | Bushing | Pitch Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
32808M12W | 410 | - | - | 12 mm | - | - | - | 3280 mm | €167.54 | |
 |
32808M22W | 410 | - | - | 22 mm | - | - | - | 3280 mm | €274.15 | |
 |
W11214M120 | 112 | 19.65" | 19.54" | 120 mm | 1280 RPM | 1280 RPM | - | - | €2,210.62 | |
 |
W11214M20 | 112 | 19.65" | 19.54" | 20 mm | 1280 RPM | 1280 RPM | E | - | €1,169.71 | |
 |
W11214M42 | 112 | 19.65" | 19.54" | 42 mm | 1280 RPM | 1280 RPM | F | - | €1,427.29 | |
 |
W11214M65 | 112 | 19.65" | 19.54" | 65 mm | 1280 RPM | 1280 RPM | J | - | €1,652.50 | |
 |
W11214M90 | 112 | 19.65" | 19.54" | 90 mm | 1280 RPM | 1280 RPM | J | - | €1,992.62 |
