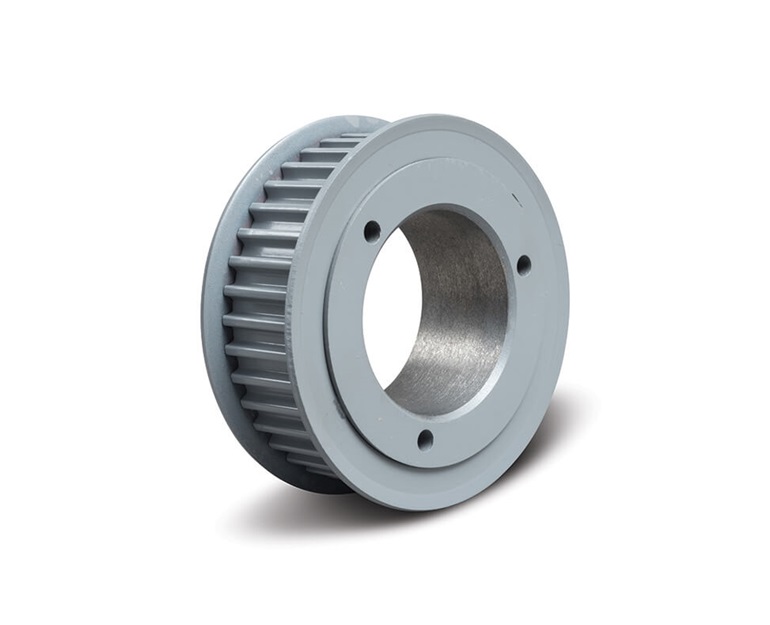

TB WOODS P445M15 Synchronous Plus Belt Sprocket, Ductile Iron, 15mm Belt Width, 2.757 inch Pitch Dia.
Item: AK6VJZModel: P445M15
7 In Stock
44
Ships within 2 days via
€113.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sprocket |
| Belt Width | 15 mm |
| Bore Type | Quick Disconnect Bushing |
| Bushing | JA R |
| Construction | Plain |
| Dimension E | 9/25" |
| Dimension L | 1" |
| Dimension M | 0.47" |
| Face Width | 0.89" |
| Hub Length | 14/25" |
| Material | Ductile Iron |
| Max. Rpm | 14080 RPM |
| Number Of Teeth | 44 |
| Outside Dia. | 2.71" |
| Pitch Dia. | 2.757" |
| Product Type | Synchronous Plus |
| Rpm High | 14080 RPM |
| Rpm High | 14,080 rpm |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 6.88 |
| Ship length (cm) | 6.88 |
| Ship width (cm) | 1.5 |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Belt Width | Pitch Length | Rpm High | Max. Rpm | Bushing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
315014M85 | 225 | - | - | 85 mm | 3150 mm | - | - | - | €1,060.72 | |
 |
P2814M40 | 28 | 4.912" | 4 4/5" | - | - | 5210 RPM | 5210 RPM | - | €234.31 | |
|
P2814M55 | 28 | 4.912" | 4 4/5" | 55 mm | - | 5210 RPM | 5210 RPM | SK R | €275.67 | |
|
P2914M40 | - | 5.088" | 4.98" | 40 mm | - | 5030 RPM | 5030 RPM | SK R | €278.68 | |
|
P2914M55 | 29 | 5.088" | 4.98" | 55 mm | - | 5030 RPM | 5030 RPM | SK R | €311.08 | |
 |
P3014M40 | 30 | 5.263" | 5.15" | 40 mm | - | 4860 RPM | 4860 RPM | SK | €256.36 | |
|
P3014M55 | 30 | 5.263" | 5.15" | 55 mm | - | 4860 RPM | 4860 RPM | SK | €297.71 |
