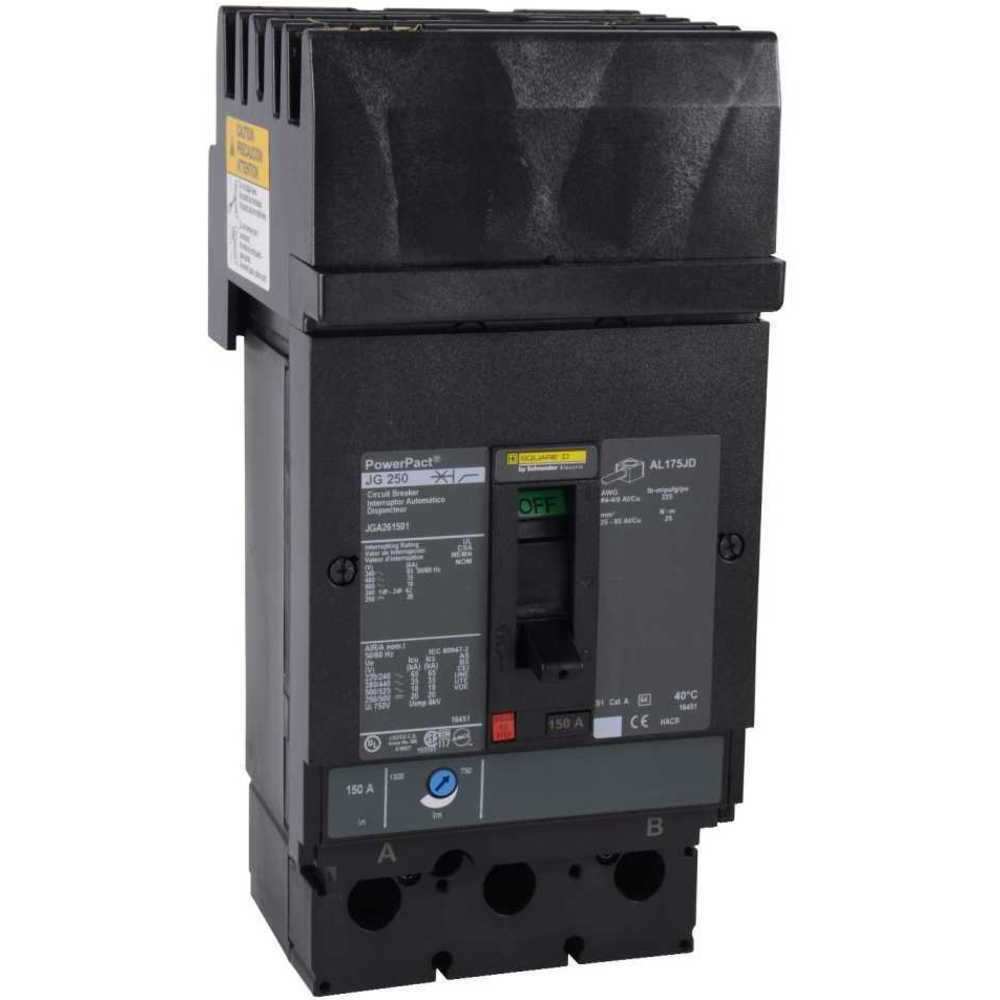

SQUARE D JGA261502 Circuit Breaker 150a 2p 600vac Lug
Item: AF9HDHModel: JGA261502Cross Ref: 2GNU3
7 In Stock
Ships within 2 days via
5.00% off
€8,419.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Amps | 150A |
| Awg Gauge | 4 AWG to 4/0 AWG |
| Breaking Capacity | 65 kA 240V AC 50/60 Hz UL 489, 35 kA 480V AC 50/60 Hz UL 489, 18 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 20 kA 500V DC UL 489 |
| Breaking Capacity Code | G |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Application | HACR Rated |
| Circuit Breaker Mounting Style | Plug In Panelboard |
| Circuit Breaker Type | Standard |
| Communication Interface | Modbus, Ethernet |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Toggle |
| Dc Voltage | 250V DC |
| Dc Voltage Rating | 250V AC |
| Depth | 3.4" , 5" |
| Device Application | Distribution |
| Electrical Connection | I-Line Connection, Line, Lugs, Load |
| For Use With | I Line Panelboards |
| Frame Size | 250A, JG |
| Height | 7 1/2" |
| High Amp Trip Setting | 1500A |
| Instantaneous Trip | Adjustable |
| Ip Degree Of Protection | IP40 |
| Line Rated Amps | 150A |
| Local Signalling | Switched Off 1 Trip Indicator Green |
| Long Time Pick-up Adjustment Range | 0.25-1 Times In |
| Low Amp Trip Setting | 750A |
| Magnetic Hold Amps | 750A |
| Magnetic Tripping Amps | 1750A |
| Max. Air Rating | 65 kA At 240V AC |
| Max. Air Rating | Not Rated |
| Max. Wire Size | 4/0 AWG |
| Min. Wire Size | 4 AWG |
| Mounting | Plug In Panelboard |
| Mounting Height | 4.5" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 2 |
| Number Of Poles | 2 |
| Number Of Slots | 5 |
| Operating Altitude | 0 ft. to 6561.68 ft. Without Derating, 5000m With Derating |
| Phase | 1 |
| Phase Connection | AC |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1" |
| Protection Type | Overload Protection, Short Circuit Protection |
| Quality Labels | ce.png |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 750V |
| Rated Operational Voltage | 600V |
| Rated Service Breaking Capacity | 65 kA @ 220/240V AC @ 50/60 Hz, 35 kA @ 380/440/415V AC @ 50/60 Hz, 18 kA @ 500/525V AC @ 50/60 Hz, 20 kA @ 250V DC, 20 kA @ 500V DC |
| Returnability | Yes |
| Suitability For Isolation | Yes, IEC 60947-2 |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Tightening Torque | 25 N-m |
| Trip Type | Thermal Magnetic |
| Trip Unit Technology | Thermal-Magnetic |
| Utilisation Category | Category A |
| Width | 4.09" , 4.1" |
Shipping Info:
| Ship weight (kg) | 2.97 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 10.41 |
| HS code | 8536200020 |
| Country of Origin | US |
Product Details:
- Instantaneous Trip (Adjustable)
Product Variants
| Model | Number Of Poles | Amps | Phase | Phase Connection | Min. Wire Size | Dc Voltage Rating | Terminal Connection | High Amp Trip Setting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| JGA261751 | 2 | 175A | 1 | AB | 4 AWG | 250V AC | Lug | 1750A | €6,120.96 | |
| JGA261752 | 2 | 175A | 1 | AC | 4 AWG | 250V AC | Lug | 1750A | €9,135.19 | |
| JGA261754 | 2 | 175A | 1 | BC | 4 AWG | 250V AC | Lug | 1750A | €6,120.96 | |
| JGA262001 | 2 | 200A | 1 | AB | 3/0 AWG | 250V AC | Lug | 2000A | €4,703.66 | |
| JGA262002 | 2 | 200A | 1 | AC | 3/0 AWG | 250V AC | Lug | 2000A | €4,862.05 | |
| JGA262004 | 2 | 200A | 1 | BC | 3/0 AWG | 250V AC | Lug | 2000A | €8,862.64 | |
| JGA262251 | 2 | 225A | 1 | AB | 3/0 AWG | 250V AC | Lug | 2250A | €8,156.74 |
