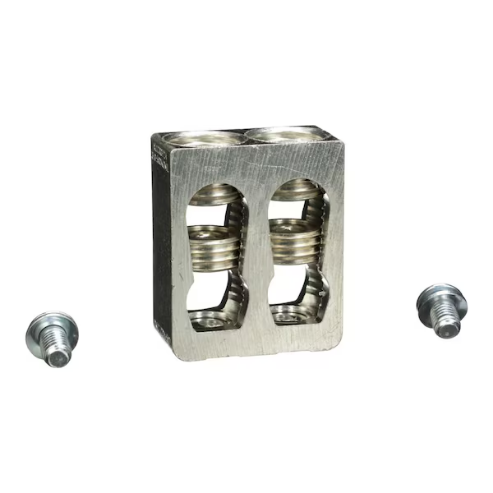

SQUARE D AL1200P24K Lug Kit, Mechanical Lug Kit
Item: CU4FUFModel: AL1200P24KCross Ref: 48M186
7 In Stock
Ships within 2 days via
5.00% off
€429.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lug Kit |
| Accessory Type | Circuit Breaker Mechanical Lug Kit (1) |
| Amps | 800-1200A |
| Awg Gauge | 3/0 AWG to 500 kcmil |
| Body Material | Aluminum |
| Circuit Breaker Type | M Frame, P Frame |
| Comm Code Enhanced | 32900 |
| Component Type | Mechanical Lug |
| Conductor Material | Aluminum, Copper |
| Discount Schedule | 0DE2 |
| For Use With | PowerPact M And P-Frame Circuit Breakers |
| Frame Type | PGA, PJA, PLA, MGA, MJA |
| Line Rated Amps | 800/1200A |
| Location Of Connection | Downstream |
| Material | Aluminum |
| Max. Breaker Amps Rating | 1200A |
| Max. Conductor Size | 500 kcmil |
| Min. Conductor Size | 3/0 AWG |
| Mounting Mode | I Line, Unit Mount |
| Mounting Type | Unit, I Line |
| No. Of Conductor | 4 |
| No. Of Wire | 1 |
| Pole | 3 |
| Product Compatibility | PowerPact P PowerPact, PowerPact M PowerPact |
| Product Or Component Type | Mechanical Lug |
| Quantity Per Set | Set of 1 |
| Returnability | Yes |
| Series | AL Series |
| Size | 500 kcmil |
| Tightening Torque | 442.5 lbf.in. @ 0.1 sq. in. to 0.4 sq. in. @ 3/0 AWG to 500 kcmil |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 7.7 |
| Ship length (cm) | 18.59 |
| Ship width (cm) | 16.79 |
| Country of Origin | US |
Product Variants
| Product | Model | Returnability | Conductor Material | Component Type | Quantity Per Set | No. Of Poles | No. Of Lugs Included | Amps | Max. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO70AN | Yes | - | - | - | - | - | - | - | €17.80 | |
 |
LV426972 | No | Steel | Cable Connector | Set of 1 | 1 | 1 | - | 2/0 AWG (Fine Stranded), 3/0 AWG (Stranded) | €50.74 | |
 |
LV426965 | No | Copper | Mechanical Lug | Set of 3 | 3 | 3 | 125A | 1/0 AWG | €189.53 | |
 |
LV426962 | Yes | - | Terminal Kit | Set of 2 | 2 | 2 | 125A | - | €239.85 | |
 |
LV426963 | Yes | - | Terminal Kit | Set of 3 | 3 | 3 | 125A | - | €246.65 | |
 |
LV426989 | Yes | Aluminium, Copper | Compression Lug | Set of 3 | None | 3 | 125A | 1/0 AWG | €377.00 | |
 |

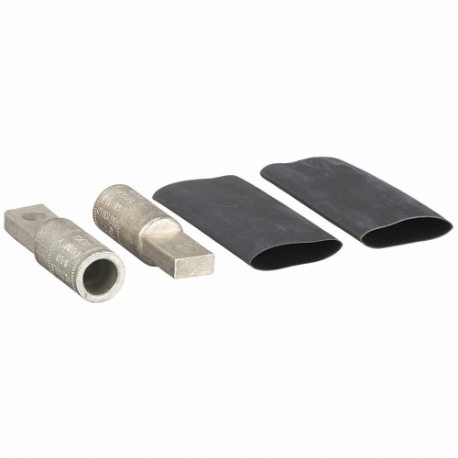

LV426988 | Yes | Aluminium, Copper | Compression Lug | Set of 2 | None | 2 | 125A | 1/0 AWG | €324.17 |
