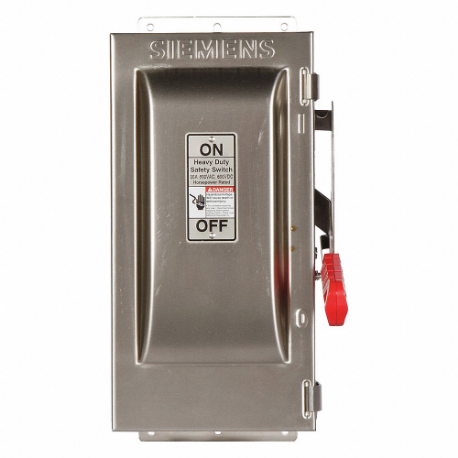

SIEMENS HF261S Safety Switch, Fusible, 30 A, Single Phase, 600 Vac, 304 Stainless Steel, Indoor/Outdoor
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,616.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 30A |
| Contact Form | DPST |
| Current Rating | 30A |
| Depth | 8 1/2" |
| Duty | Heavy Duty |
| Environment | Indoor/Outdoor |
| For Fuse Class | Class J, Class R |
| For Use With | Class J, R Fuse |
| Fuse Kit (class R) | Mfr. No. HRK4060 |
| Fuse Ul Class | Class J, Class R |
| Fusible / Nonfusible | Fusible |
| Height | 15 1/2" |
| Horsepower @ 600v Ac | 10 hp |
| Housing Grade | Grade 304 |
| Housing Material | Stainless Steel |
| Hp @ 240vac | 75 hp |
| Hp @ 600vac | 10 hp |
| Ip Rating | Not Rated |
| Metallic / Non-metallic | Metallic |
| Nema Enclosure Rating | NEMA 4, NEMA 4X |
| Neutral Assembly Included | No |
| Number Of Mounting Holes | 3 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Protection Method | Fusible |
| Resistance Properties | Corrosion Resistant |
| Standards | Ul 98 |
| Ul Fuse Class | J, R |
| Voltage | 600V AC |
| Voltage Rating | 600V AC |
| Width | 9" |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 39.37 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 22.86 |
| Country of Origin | MX |
Product Variants
| Product | Model | Environment | Amps | Number Of Wires | Phase | Number Of Poles | Protection Method | Voltage | Duty | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HF223J | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €1,330.22 | |
 |
HF223N | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €618.80 | |
 |
HF223NR | Indoor/Outdoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €931.20 | |
 |
HF223S | Indoor/Outdoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €5,216.45 | |
 |
GF223N | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Standard | €361.64 | |
 |
GF223NR | Indoor/Outdoor | 100A | 3 | - | 2 | Fusible | 240V AC | Standard | €275.63 | |
 |
HF263 | Indoor | 100A | 3 | Single | 2 | Fusible | 600V AC | Heavy Duty | €956.15 |
