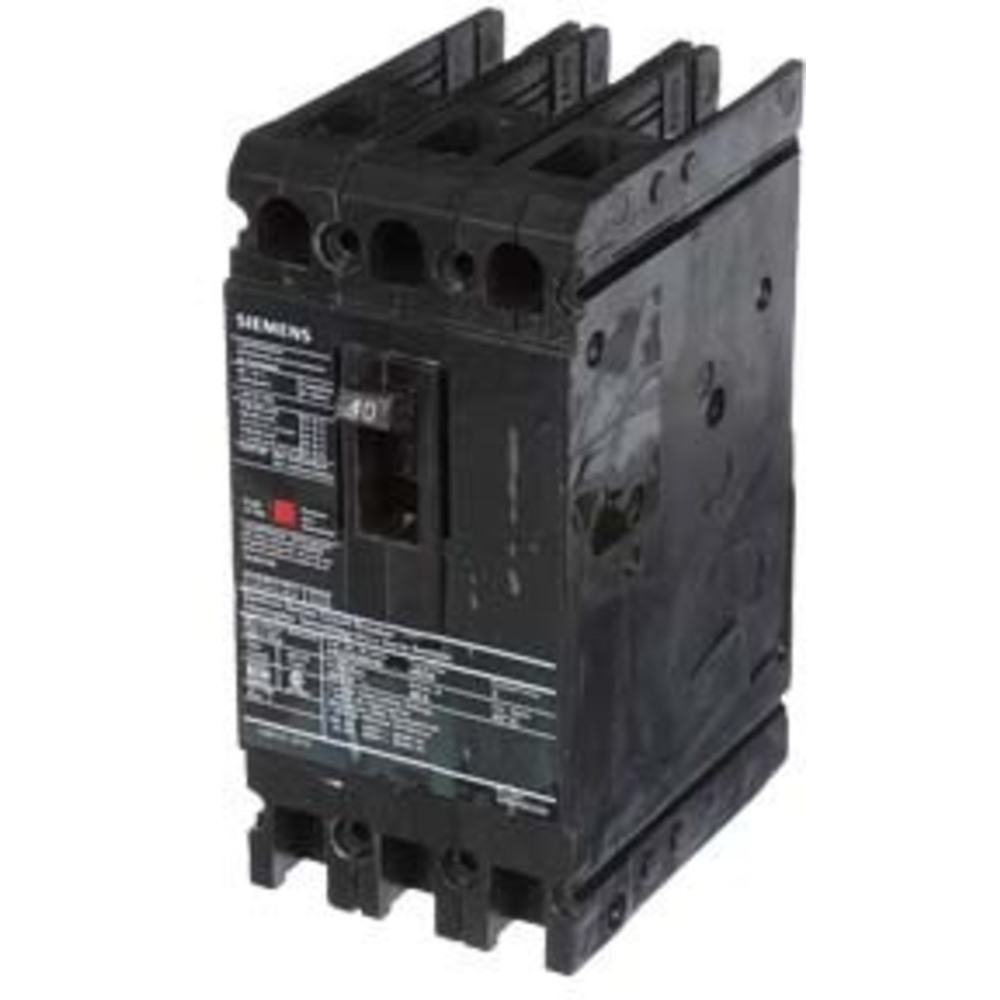

SIEMENS HED43B040 Bolt On Circuit Breaker Hed 40 Amp 480vac 3p 42kaic@480v
Item: AG8PCLModel: HED43B040Cross Ref: 3CMR5
7 In Stock
40A
3
Ships within 2 days via
10.00% off
€966.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 480V AC |
| Aic Rating | 42 kAIC @ 480V |
| Amps | 40A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Lug In Panelboard |
| Circuit Breaker Type | High Interrupting Capacity |
| Dc Voltage Rating | Not Rated |
| Depth | 4" |
| For Use With | SB Switchboards, Sentron Panelboards |
| Frame Size | 125A, ED |
| Frame Type | HED |
| Height | 6.34" |
| High Amp Trip Setting | 40A |
| Instantaneous Trip | Fixed |
| Low Amp Trip Setting | 40A |
| Max. Wire Size | 1/0 AWG |
| Maximum Air Rating | 42 Ka @ 480V Ac |
| Min. Wire Size | 10 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Phase Connection | ABC |
| Series | HED4 Series |
| Terminal Connection | Load Side Lug |
| Trip Type | Thermal Magnetic |
| Voltage | 480V |
| Voltage Type | AC |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 1.64 |
| Ship height (cm) | 16.13 |
| Ship length (cm) | 9.96 |
| Ship width (cm) | 7.62 |
| HS code | 8536200020 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Poles | Amps | Circuit Breaker Type | Frame Size | Ac Voltage Rating | Phase | Phase Connection | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HED41B045 | 1 | 45A | Standard | 125A, ED | 277V AC | Single | ABC | 277V | €1,881.08 | |
 |
HED41B050 | 1 | 50A | High Interrupting Capacity | 125A, ED | 277V AC | Single | Any | 277V | €1,881.08 | |
 |
HED41B060 | 1 | 60A | High Interrupting Capacity | 125A, ED | 277V AC | Single | Any | 277V | €1,881.08 | |
|
HED41B100 | 1 | 100A | High Interrupting Capacity | 125A, ED | 277V AC | Single | Any | 277V | €2,170.16 | |
 |
HED42B015 | 2 | 15A | High Interrupting Capacity | 125A, ED | 480V AC | Single | Any | 480V | €822.67 | |
|
HED42B100 | 2 | 100A | High Interrupting Capacity | 125A, ED | 480V AC | Single | Any | 480V | €4,880.63 | |
 |
HED42B110 | 2 | 110A | Standard | 125A, ED | 480V AC | Single | ABC | 480V | €1,196.40 |
