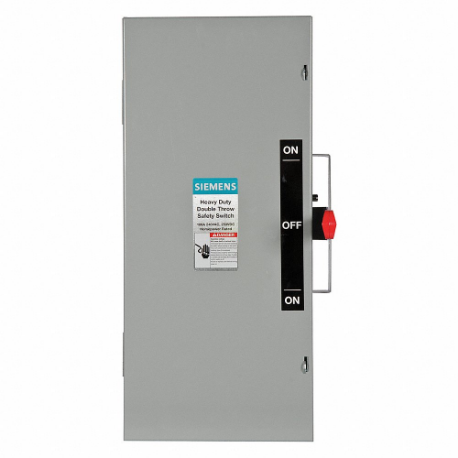

SIEMENS DTNF223 Safety Switch, Non-Fusible, 100 A, Single Phase, 240 Vac, Galvanized Steel, Indoor
Get it by Monday, Dec 22
10.00% off
€1,578.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 100A |
| Contact Form | DPDT |
| Current Rating | 100A |
| Depth | 8 1/2" |
| Environment | Indoor |
| For Fuse Class | Not Applicable |
| Fusible / Nonfusible | Nonfusible |
| Height | 27 1/2" |
| Housing Material | Steel |
| Hp @ 240vac | 40 hp |
| Maximum Enclosure Depth | 27.62" |
| Maximum Mounting Depth | 19 9/25" |
| Metallic / Non-metallic | Metallic |
| Minimum Enclosure Depth | 12.18" |
| Minimum Mounting Depth | 8" |
| Nema Enclosure Rating | 1 |
| Neutral Assembly Included | No |
| Number Of Mounting Holes | 3 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Protection Method | Non Fusible |
| Standards | Ul 98, Ul Listed |
| Voltage | 240V AC |
| Voltage Rating | 240V AC |
| Width | 14" |
Shipping Info:
| Ship weight (kg) | 16.2 |
| Ship height (cm) | 69.85 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 35.56 |
| Country of Origin | MX |
Product Variants
| Product | Model | Environment | Amps | Number Of Wires | Phase | Number Of Poles | Protection Method | Voltage | Duty | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HF223J | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €1,330.22 | |
 |
HF223N | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €618.80 | |
 |
HF223NR | Indoor/Outdoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €931.20 | |
 |
HF223S | Indoor/Outdoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €5,216.45 | |
 |
GF223N | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Standard | €361.64 | |
 |
GF223NR | Indoor/Outdoor | 100A | 3 | - | 2 | Fusible | 240V AC | Standard | €275.63 | |
 |
HF263 | Indoor | 100A | 3 | Single | 2 | Fusible | 600V AC | Heavy Duty | €956.15 |
