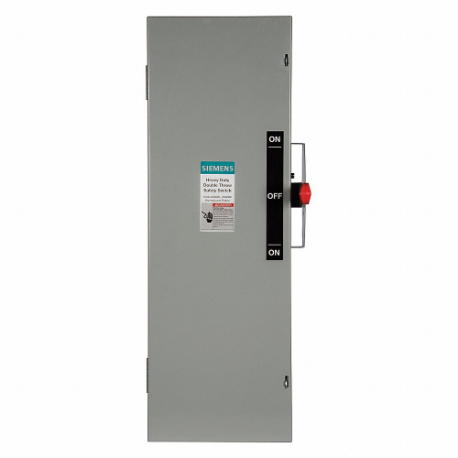

SIEMENS DTF323 Safety Switch, Fusible, 100 A, Three Phase, 240V AC, Galvanized Steel, Indoor
Get it by Monday, Dec 22
10.00% off
€3,685.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 100A |
| Contact Form | 3PDT |
| Current Rating | 100A |
| Depth | 8 1/2" |
| Duty | Heavy Duty |
| Environment | Indoor |
| For Fuse Class | Class H, Class J, Class R, Class T |
| For Use With | Class H, J, R, T Fuse |
| Fuse Ul Class | Class H, Class J, Class R, Class T |
| Fusible / Nonfusible | Fusible |
| Height | 37" |
| Housing Material | Steel |
| Hp @ 240vac | 15 hp |
| Maximum Enclosure Depth | 36 11/25" |
| Maximum Mounting Depth | 28.11" |
| Metallic / Non-metallic | Metallic |
| Minimum Enclosure Depth | 12.18" |
| Minimum Mounting Depth | 8" |
| Nema Enclosure Rating | 1 |
| Number Of Mounting Holes | 3 |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Phase | 3 |
| Protection Method | Fusible |
| Standards | Ul 98, Ul Listed |
| Ul Fuse Class | H, J, R, T |
| Voltage | 240V AC |
| Voltage Rating | 240V AC |
| Width | 14 1/4" |
Shipping Info:
| Ship weight (kg) | 24.28 |
| Ship height (cm) | 93.98 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 36.2 |
| Country of Origin | MX |
Product Variants
| Product | Model | Environment | Amps | Number Of Wires | Phase | Number Of Poles | Protection Method | Voltage | Duty | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HF223J | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €1,330.22 | |
 |
HF223N | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €618.80 | |
 |
HF223NR | Indoor/Outdoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €931.20 | |
 |
HF223S | Indoor/Outdoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €5,216.45 | |
 |
GF223N | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Standard | €361.64 | |
 |
GF223NR | Indoor/Outdoor | 100A | 3 | - | 2 | Fusible | 240V AC | Standard | €275.63 | |
 |
HF263 | Indoor | 100A | 3 | Single | 2 | Fusible | 600V AC | Heavy Duty | €956.15 |
