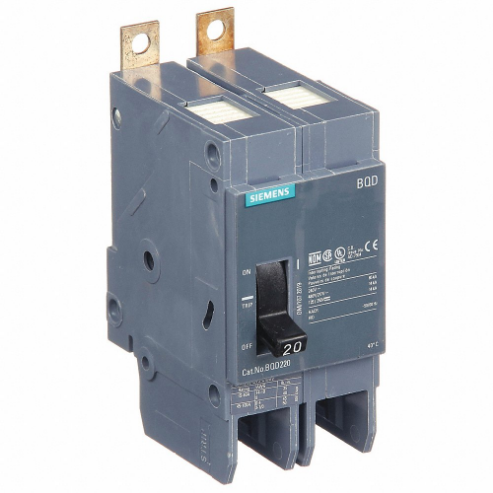

SIEMENS BQD220 Circuit Breaker, Bolt-On, 20 Ampere, 1 Phase, 14kAIC at 480V
Item: CE6LJGModel: BQD220Cross Ref: 6FMU7
7 In Stock
Ships within 2 days via
10.00% off
€174.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 480V AC |
| Amps | 20A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | P1 |
| Dc Voltage Rating | 125/250V DC |
| Depth | 2.7" |
| For Use With | Siemens P1 Panelboards |
| Frame Size | 100A/BQD |
| Frame Type | BQD |
| Length | 4.49" |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 6 AWG |
| Maximum Air Rating | 14 Ka @ 480V Ac |
| Minimum Wire Size | 12 AWG, 14 AWG |
| Number Of Poles | 2 |
| Phase | Single |
| Series | BQD Series |
| Terminal Connection | Lug |
| Voltage | 480V |
| Voltage Type | AC |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 11.4 |
| Ship width (cm) | 5.08 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Amps | Ac Voltage Rating | Phase | Voltage | Dc Voltage Rating | Max. Wire Size | Circuit Breaker Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

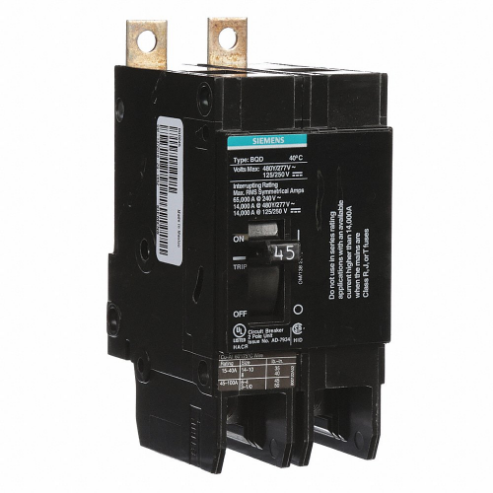

BQD245 | 2 | 45A | 480V AC | Single | 480V | 125/250V DC | 1/0 AWG | Standard | €312.20 | |
 |
BQD250 | 2 | 50A | 480V AC | Single | 480V | 125/250V DC | 1/0 AWG | Standard | €193.40 | |
 |
BQD260 | 2 | 60A | 480V AC | Single | 480V | 125/250V DC | 1/0 AWG | Standard | €886.16 | |
 |
BQD270 | 2 | 70A | 480V AC | Single | 480V | 125/250V DC | 1/0 AWG | Standard | €243.07 | |
 |
BQD280 | 2 | 80A | 480V AC | Single | 480V | 125/250V DC | 1/0 AWG | Standard | €307.25 | |
 |
BQD290 | 2 | 90A | 480V AC | Single | 480V | 125/250V DC | 1/0 AWG | Standard | €1,606.95 | |
 |
BQD3100 | 3 | 100A | 480V AC | Three | 480V | Not Rated | 1/0 AWG | Standard | €1,976.08 |
