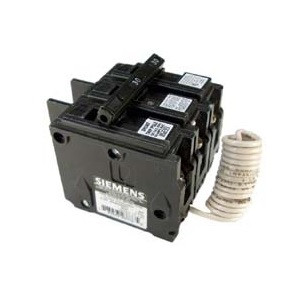

SIEMENS BQ2B10000S01 Molded Case Circuit Breaker, 100A, 2P, 10kAIC at 240V
Item: CE6LEPModel: BQ2B10000S01Cross Ref: 3CMC3
7 In Stock
Ships within 2 days via
10.00% off
€423.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 100A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Shunt Trip |
| Dc Voltage Rating | Not Rated |
| Depth | 4" |
| For Use With | Siemens Panelboards |
| Frame Size | 125A/BQ |
| Frame Type | BQ |
| Length | 5" |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 1/0 AWG |
| Minimum Wire Size | 2 AWG, 4 AWG |
| Number Of Poles | 2 |
| Phase | Single |
| Series | BQ Series |
| Terminal Connection | Lug |
| Voltage | 240V |
| Voltage Type | AC |
| Width | 4" |
Shipping Info:
| Ship weight (kg) | 0.55 |
| Ship height (cm) | 12 |
| Ship length (cm) | 10 |
| Ship width (cm) | 10 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Siemens BQ2B10000S01 circuit breaker ideal for installation within industrial control panels for protecting machinery & circuits against current overloads & short circuits
- Features load side lug terminals with bolt-on design for ease of wiring & installation
- Thermal magnetic trip delivers both long time & instantaneous trip functions
- UL-listed
Product Variants
| Product | Model | Number Of Poles | Voltage | Amps | Depth | Frame Size | Max. Air Rating | Phase | Max. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BQ1B010 | 1 | 120V AC | 10A | 4" | 125A/BQ | 10 kA At 120V AC | Single | 10 AWG | €31.30 | |
 |
BQ1B015 | 1 | 120V AC | 15A | 4" | 125A/BQ | 10 kA At 120V AC | Single | 10 AWG | €149.06 | |
 |
BQ1B01500S01 | 1 | 120V AC | 15A | 6" | 125A/BQ | 10 kA At 120V AC | Single | 10 AWG | €718.24 | |
|
BQ1B015H | 1 | 120V AC | 15A | 3" | 125A, BQH | 22 kA At 120V AC | Single | 10 AWG | €119.77 | |
|
BQ1B020 | 1 | 120V AC | 20A | 12.9" | 125A/BQ | 10 kA At 120V AC | Single | 10 AWG | €28.51 | |
|
BQ1B02000S01 | 1 | 120V AC | 20A | 6" | 125A/BQ | 10 kA At 120V AC | Single | 10 AWG | €311.65 | |
|
BQ1B020H | 1 | 120V AC | 20A | 3" | 125A, BQH | 22 kA At 120V AC | Single | 10 AWG | €277.64 |
