SIEMENS BQ2B080 Molded Case Circuit Breaker, 80A, 2 Poles, 120 / 240VAC
Item: CE6LEGModel: BQ2B080Cross Ref: 6FMK7
7 In Stock
Ships within 2 days via
10.00% off
€144.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 80A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | Not Rated |
| Depth | 3" |
| For Use With | Siemens Panelboards |
| Frame Size | 125A/BQ |
| Frame Type | BQ |
| Length | 4" |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 1/0 AWG |
| Minimum Wire Size | 2 AWG, 4 AWG |
| Number Of Poles | 2 |
| Phase | Single |
| Series | BQ Series |
| Terminal Connection | Lug |
| Voltage | 240V |
| Voltage Type | AC |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.33 |
| Ship height (cm) | 10 |
| Ship length (cm) | 5 |
| Ship width (cm) | 7 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Siemens BQ2B080 circuit breaker designed for limiting let-through currents for providing protection to downstream components in power distribution applications
- Features bolt-on design with load side lug terminals for ease of installation and wiring
- Non-interchangeable thermal magnetic trip for delivering both instantaneous & time delayed protection
- UL-listed
Product Variants
| Product | Model | Number Of Poles | Voltage | Amps | Depth | Frame Size | Max. Air Rating | Phase | Max. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

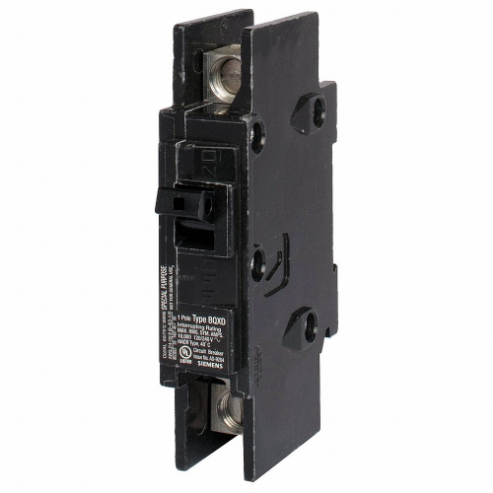

BQ1B010 | 1 | 120V AC | 10A | 4" | 125A/BQ | 10 kA At 120V AC | Single | 10 AWG | €31.30 | |
 |
BQ1B015 | 1 | 120V AC | 15A | 4" | 125A/BQ | 10 kA At 120V AC | Single | 10 AWG | €149.06 | |
 |

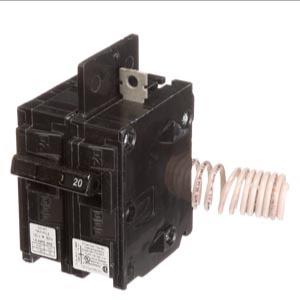

BQ1B01500S01 | 1 | 120V AC | 15A | 6" | 125A/BQ | 10 kA At 120V AC | Single | 10 AWG | €718.24 | |
|
BQ1B015H | 1 | 120V AC | 15A | 3" | 125A, BQH | 22 kA At 120V AC | Single | 10 AWG | €119.77 | |
|
BQ1B020 | 1 | 120V AC | 20A | 12.9" | 125A/BQ | 10 kA At 120V AC | Single | 10 AWG | €28.51 | |
|
BQ1B02000S01 | 1 | 120V AC | 20A | 6" | 125A/BQ | 10 kA At 120V AC | Single | 10 AWG | €311.65 | |
|
BQ1B020H | 1 | 120V AC | 20A | 3" | 125A, BQH | 22 kA At 120V AC | Single | 10 AWG | €277.64 |
