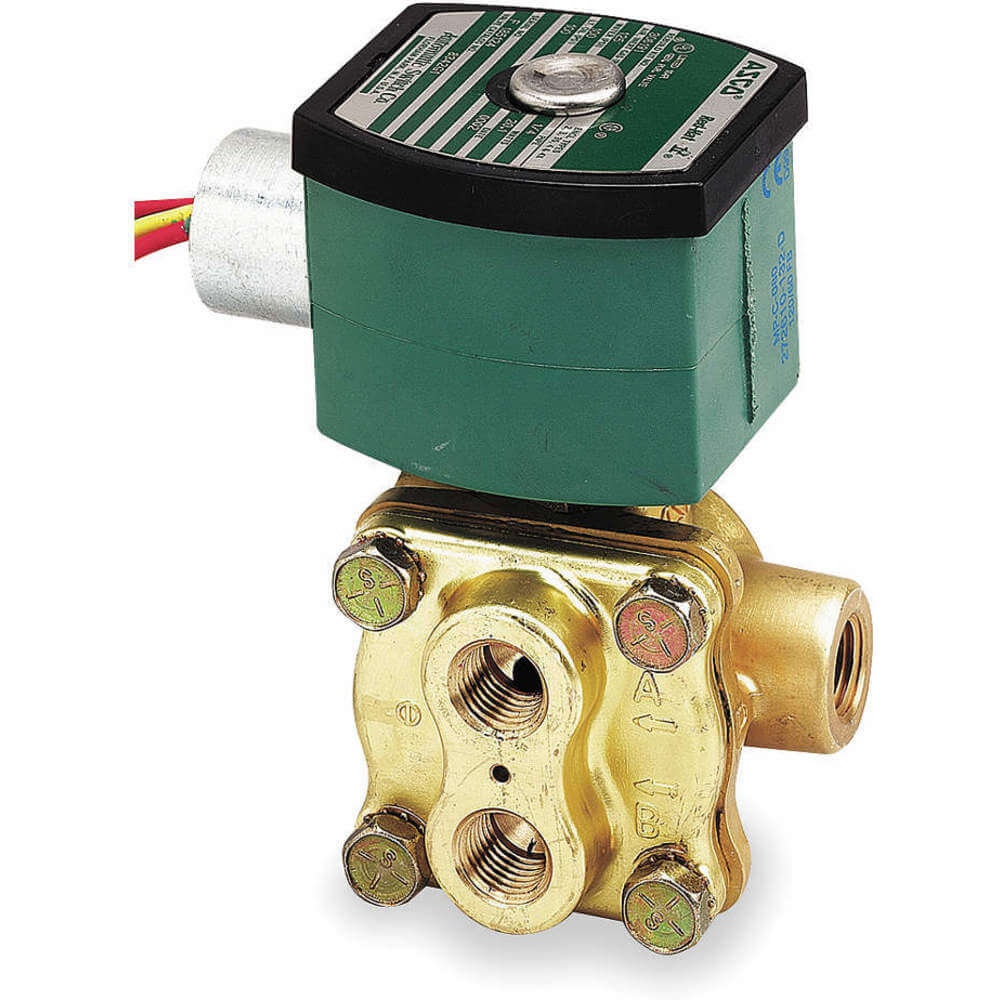

RED HAT 8342G001MS Single Solenoid Valve 4/2 1/4 Inch 120/110v
Item: AD7HLBModel: 8342G001MSCross Ref: 4ELD5
7 In Stock
Ships within 2 days via
10.00% off
€669.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve with Manual Operator |
| Body Material | Brass |
| Class | Class F |
| Coefficient Of Volume | 0.7 |
| Coefficient Of Volume (cv) | 0.7 |
| Coil Enclosure | Watertight No Junction Box |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| For Media | Air, Inert Gases, Light Oil, Water |
| Frequency | 60 Hz |
| Hz | 50/60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP66 |
| Max. Ambient Temperature | 125°F |
| Max. Fluid Temp. | 160°F |
| Max. Fluid Temperature | 160°F |
| Max. Operating Pressure Differential - Air/inert Gas | 125 psi |
| Max. Operating Pressure Differential - Light Oil | 100 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 100 psi |
| Max. Operating Pressure Differential Air/inert Gas | 125 psi |
| Max. Operating Pressure Differential Light Oil | 100 psi |
| Max. Operating Pressure Differential Water | 100 psi |
| Media Type | Air, Inert Gas, Light Oil, Water |
| Min. Ambient Temperature | 32°F |
| Min. Operating Pressure Differential | 0 psi |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 1/4" |
| Operating Environment | Indoor, Outdoor |
| Operation | Direct Acting |
| Operation Type | Direct Acting |
| Orifice Dia. | 0.188" |
| Orifice Diameter | 3/16" |
| Outlet Connection Type | NPTF |
| Overall Length | 3 1/8" |
| Overall Width | 2" |
| Pipe Size | 1/4" |
| Seal Material | Nbr |
| Standards | Csa, Ul Listed |
| Valve Configuration | Configurable |
| Valve Positions | 2 Position |
| Valve Type | Namur Mount |
| Valve Ways | 4-Way |
| Valve Ways And Positions | 4 Ways And 2 Positions |
| Voltage | 120V AC |
| Wattage | 20.1 W |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 21.84 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 8.64 |
| HS code | 8481809005 |
| Country of Origin | MX |
Product Variants
| Product | Model | Valve Ways And Positions | Valve Configuration | Pipe Size | Voltage | Operation | Min. Operating Pressure Differential | Max. Operating Pressure Differential Air/inert Gas | Max. Operating Pressure Differential Water | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
8342G003MS120/60DA | 4 Ways And 2 Positions | Configurable | 3/8" | 120V AC | Direct Acting | 0 psi | 125 psi | 100 psi | €919.94 | |
 |

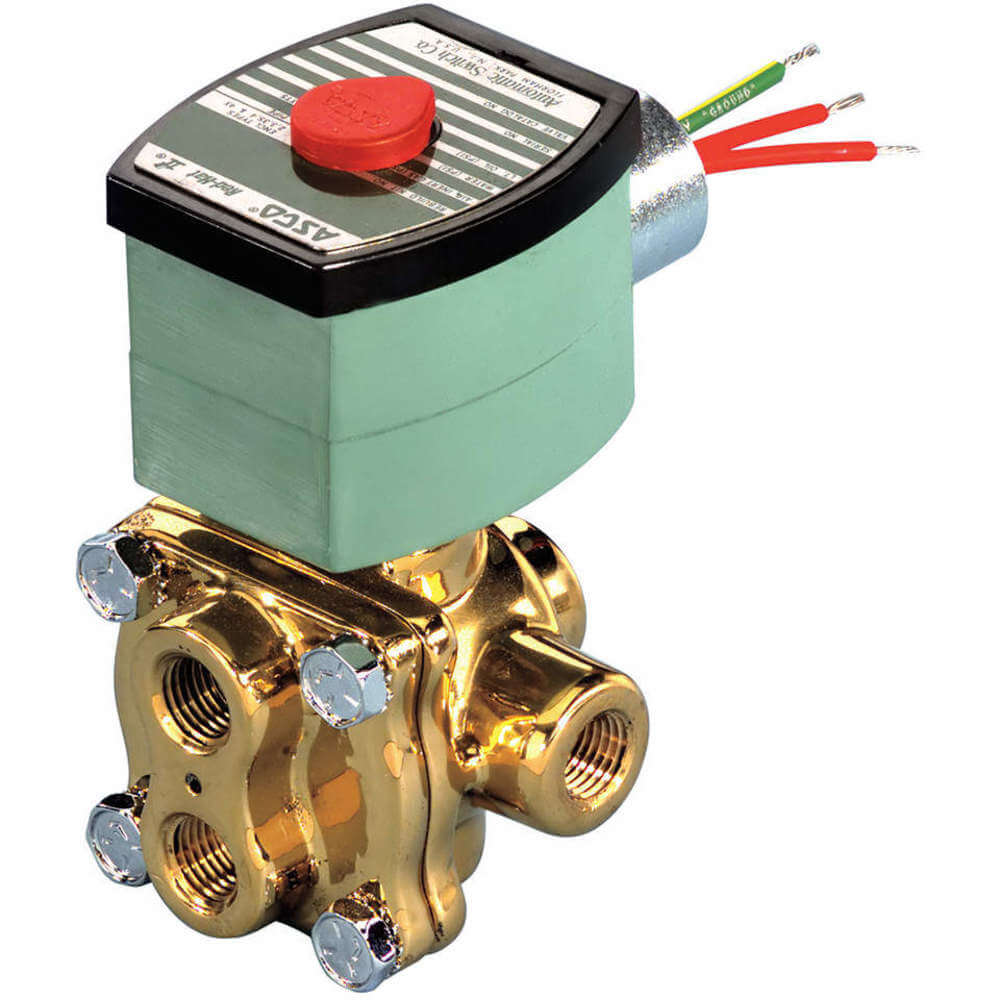

EF8342G003MS120/60DA | 4 Ways And 2 Positions | Configurable | 3/8" | 120V AC | Direct Acting | 0 psi | 125 psi | 100 psi | €1,102.23 | |
 |
8344G074MO | 4 Ways And 2 Positions | Configurable | 1/2" | 110/120V AC | Pilot Operated | 10 psi | 250 psi | 250 psi | €1,634.46 | |
|
EF8344G074MO120/60 110/50DA | 4 Ways And 2 Positions | Configurable | 1/2" | 110/120V AC | Pilot Operated | 10 psi | 150 psi | 125 psi | €1,789.17 | |
 |

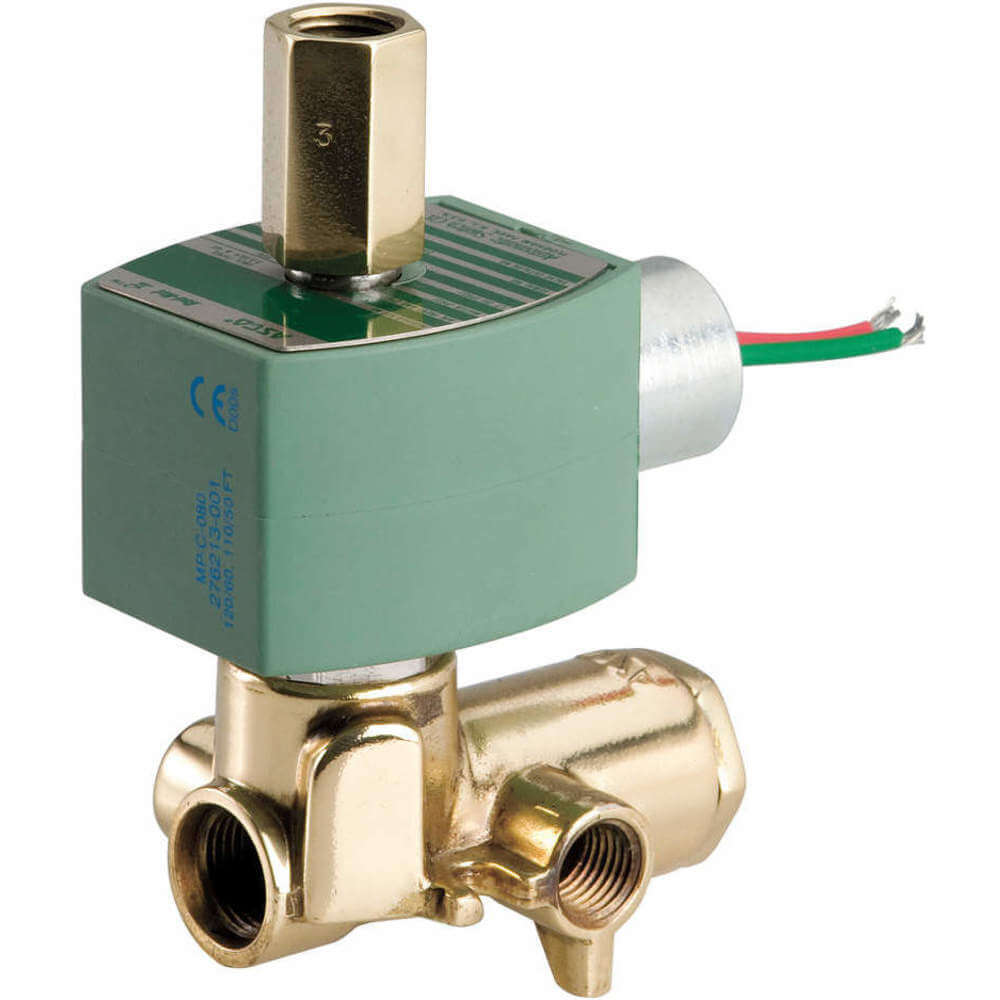

EF8345G001MO120/60 110/50DA | 4 Ways And 2 Positions | Configurable | 1/4" | 110/120V AC | Pilot Operated | 10 psi | 150 psi | 150 psi | €916.97 | |
|
EF8342G003PMS120/60DA | 4 Ways And 2 Positions | Configurable | 3/8" | 120V AC | Direct Acting | 0 psi | 125 psi | 100 psi | €1,454.78 | |
|
EF8342G001MS | 4 Ways And 2 Positions | Configurable | 1/4" | 120V AC | Direct Acting | 0 psi | 125 psi | 100 psi | €912.10 |
