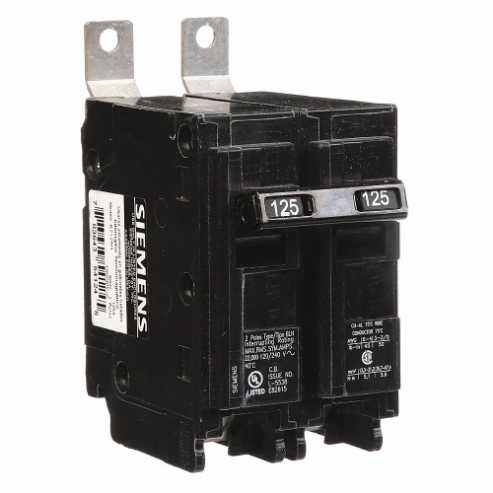

SIEMENS B2125H Molded Case Circuit Breaker, 1 Phase, 125A, 22kAIC at 240V
Item: CE6KVKModel: B2125HCross Ref: 6EVF7
7 In Stock
Ships within 2 days via
10.00% off
€282.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 125A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | P1 |
| Dc Voltage Rating | Not Rated |
| Depth | 3" |
| For Use With | Siemens P1 Panelboards |
| Frame Size | 125A/BLH |
| Frame Type | B |
| Length | 2" |
| Max. Air Rating | 22 kA At 120/240V AC |
| Max. Wire Size | 1/0 AWG |
| Min. Wire Size | 2 AWG |
| Number Of Poles | 2 |
| Phase | Single |
| Series | BL Series |
| Terminal Connection | Lug |
| Voltage | 240V |
| Voltage Type | AC |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 7.62 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Siemens B2125H circuit breaker designed for limiting let through currents, offering protection to sensitive downstream components
- Thermal-magnetic trip mechanism to provide long-time and instantaneous trip functions
- Bolt on mounting style for mounting breaker in either horizontal or vertical orientation
- Molded case holds current-carrying components, trip devices and mechanisms integrated in a compact space
- Operates efficiently at an ambient temperature of 104 degrees F
Product Variants
| Product | Model | Number Of Poles | Amps | Circuit Breaker Type | Frame Size | Ac Voltage Rating | Phase | Frame Type | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B11500S01 | 1 | 15A | Shunt Trip | 125A/BL | 120/240V AC | Single | B | - | €584.03 | |
 |
B115AF | 1 | - | - | - | - | - | B | 120V AC | - | RFQ
|
|
B115DF | 1 | - | - | - | - | - | B | 120V AC | €336.49 | |
|
B115DFH | 1 | - | - | - | - | - | B | 120V AC | - | RFQ
|
 |
B115H | 1 | 15A | Standard | 125A/BLH | 120/240V AC | Single | B | 120V AC | €39.22 | |
|
B115HH | 1 | 15A | Standard | 125A/BL | 120/240V AC | Single | B | 120V AC | €80.54 | |
|
B115HID | 1 | - | - | - | - | - | B | 120V AC | €35.26 |
