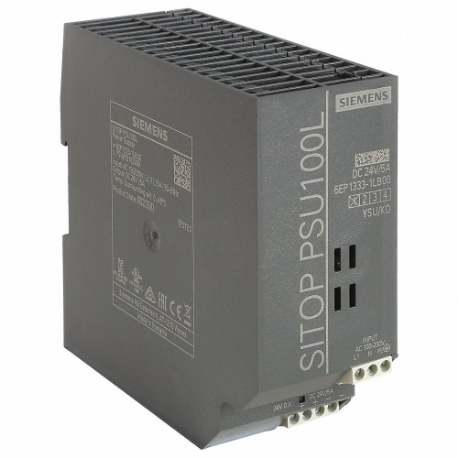

SIEMENS 6EP13331LB00 Dc Power Supply, 132 To 264 VAC/93 To 187 VAC, Single, 24VDC, 120W, 5, Din Rail
Item: CU2RPWModel: 6EP13331LB00Cross Ref: 20AZ56
7 In Stock
Ships within 2 days via
10.00% off
€199.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Power Supply |
| Case Material | Plastic Case |
| Current - Inrush | 32A |
| Current - Peak | 32A |
| Depth | 120 mm |
| Frequency | 50-60 Hz |
| Height | 125 mm |
| Hold Up Time | Greater Than 20 ms |
| Hold Up Time - Minimum | 20 ms |
| Housing Material | Plastic |
| Input Frequency - Maximuim | 63 Hz |
| Input Frequency - Minimum | 47 Hz |
| Input Voltage | 120/230V AC |
| Ip Rating | IP20 |
| Mfr. Series | SITOP PSU100L |
| Minimum Output Voltage | 22.8V DC |
| Mounting | Din Rail |
| Nema Enclosure Rating | 1 |
| Operating Temp. Range | 0°C to +60°C |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | 32°F |
| Output Amps | 5A |
| Output Noise - Maximum | 150 mV |
| Output Power - Rated | 120 W |
| Output Voltage | 24V DC |
| Output Voltage - Maximum | 26.4V DC |
| Output Voltage - Nominal | 24V DC |
| Overall Depth | 4.72" |
| Overall Height | 4.92" |
| Overall Width | 1.97" |
| Peak Amps | 32A |
| Phase | Single |
| Power Rating | 120 W |
| Power Supply Style | Switching |
| Regulated / Unregulated | Regulated |
| Special Features | Short Circuit Protection |
| Status Indicator | Green Led Ok Signal |
| Style | Switching |
| Width | 50 mm |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 12.5 |
| Ship length (cm) | 12 |
| Ship width (cm) | 5 |
| Country of Origin | RO |
Product Variants
| Product | Model | Mounting | Phase | Input Voltage | Ip Rating | Peak Amps | Case Material | Hold Up Time | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6EP13311LD00 | Wall | Single | 100-240V AC | IP20 | 60A | Aluminum | Greater Than 15 ms | - | - | RFQ
|
 |
6EP13225BA10 | Din Rail | Single | 100-230V AC/110-300V DC | IP20 | 31A | Plastic Case | Greater Than 20 ms | -20°C to +70°C | €273.05 | |
 |
6EP13215BA00 | Din Rail | Single | 100-230V AC/110-300V DC | IP20 | 33A | Plastic Case | Greater Than 20 ms | -20°C to +70°C | €176.32 | |
 |
6EP1331-5BA00 | Din Rail | Single | 100-230V AC/110-300V DC | IP20 | 1A | Plastic Case | Greater Than 20 ms | -20°C to +70°C | €110.41 | |
 |
6EP1331-5BA10 | Din Rail | Single | 110-300V DC/120-230V AC | IP20 | 3.1A | Plastic Case | Greater Than 20 ms | -20°C to +70°C | €141.40 | |
 |
6EP1332-5BA10 | Din Rail | Single | 100-230V AC/110-300V DC | IP20 | 4.8A | Plastic Case | Greater Than 20 ms | -20°C to +70°C | €266.32 | |
 |
6EP13337CA00 | Wall | Single | 120/230V AC | IP67 | 15A | Aluminum | 40 ms | - | €1,056.80 |
