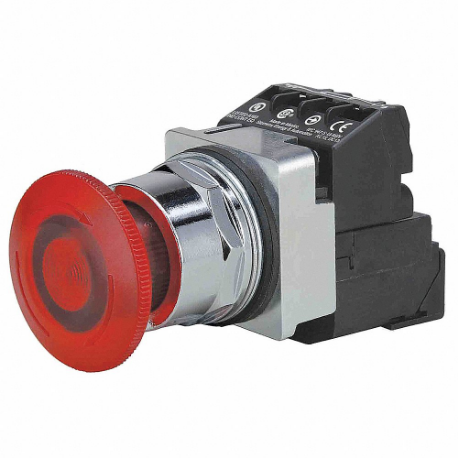

SIEMENS 52PR8ERA Illuminated Push Button, Turn To Release, Red, 120V Ac, 1No/1Nc | CU2UKQ 22KU22

SIEMENS 52PR8ERA Illuminated Push Button, Turn To Release, Red, 120V Ac, 1No/1Nc

Item: CU2UKQModel: 52PR8ERACross Ref: 22KU22
7 In Stock

Ships within 2 days via

€339.73
10.00% off
€305.75 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Illuminated Push Button
Ac Contact Rating 10A @ 600V
Action Maintained
Action Type Turn To Release
Basic Material Metal
Bezel Material Chrome
Color Red
Contact Form 1NO/1NC
Contact Rating 10A @ 600V AC
Dc Contact Rating Not Rated
Display Qty 1
Features Bifurcated Movable Contacts, Boots Not Required, Nema A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Finish Chrome Plated
Head Material Plastic
Head Size 45 mm
Head Type Mushroom
Head/lens Color Red
Ip Rating IP20, IP66
Lamp Bulb Type Incandescent
Lamp Module Type Full Voltage
Lamp Module Voltage 120V AC
Lamp Type Incandescent
Lamp Voltage 120V AC
Lamp Voltage - Maximum 120V AC/DC
Maintained Action Release Twist
Manufacturer Warranty Length 1 yr.
Mechanical Operating Durability 3 x 10^5
Mushroom Head Diameter 45.47 mm
Nema Contact Rating Designation A600/P600
Nema Enclosure Rating NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Nema Rating NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Number Of Indicator Lights 0
Number Of Operators 1
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum 31°F
Operator Illumination Illuminated
Operator Material Metal
Operator Voltage Rating - Maximum 600V AC
Overall Height 4"
Overall Width 2.15"
Panel Mounting Hole Diameter 30 mm
Product Type Push Button Operators
Push Button Style Mushroom Head
Replacement Lamps Mfr. No. TEL/120MB
Resistance Properties Oil And Grease Resistant, Watertight
Series 52 Series
Terminal Connection Screw

Shipping Info:

Ship weight (kg) 0.23
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelLamp Module TypeTerminal ConnectionLamp VoltageIp RatingActionContact FormContact RatingNema Contact Rating DesignationPrice
SIEMENS 52BT6D9JV Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TPZ 22KN37 52BT6D9JVFull VoltagePressure Plate24V AC/DCIP10, IP11, IP14, IP52, IP54, IP56, IP66Maintained/Momentary1NC10A @ 600V ACA600/P600€219.28
SIEMENS 52BT6D9J Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQA 22KN34 52BT6D9JFull VoltagePressure Plate24V AC/DCIP10, IP11, IP14, IP52, IP54, IP56, IP66Maintained/Momentary1NC10A @ 600V ACA600/P600€189.03
SIEMENS 52BT6D9JBV Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQB 22KN36 52BT6D9JBVFull VoltagePressure Plate24V AC/DCIP10, IP11, IP14, IP52, IP54, IP56, IP66Maintained/Momentary1NC10A @ 600V ACA600/P600€256.18
SIEMENS 52BT6D9K Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQC 22KN38 52BT6D9KFull VoltagePressure Plate24V AC/DCIP10, IP11, IP14, IP52, IP54, IP56, IP66Maintained/Momentary1NO10A @ 600V ACA600/P600€189.03
SIEMENS 52BT6D9JB Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQD 22KN35 52BT6D9JBFull VoltagePressure Plate24V AC/DCIP10, IP11, IP14, IP52, IP54, IP56, IP66Maintained/Momentary1NC10A @ 600V ACA600/P600€233.71
SIEMENS 52BT6D9KBV Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQE 22KN40 52BT6D9KBVFull VoltagePressure Plate24V AC/DCIP10, IP11, IP14, IP52, IP54, IP56, IP66Maintained/Momentary1NO10A @ 600V ACA600/P600€256.18
SIEMENS 52BT6D9AB Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQF 41H077 52BT6D9ABFull VoltageScrew24V AC/DCIP20, IP66Momentary1NO/1NC10A @ 600V ACA600/P600€265.18
