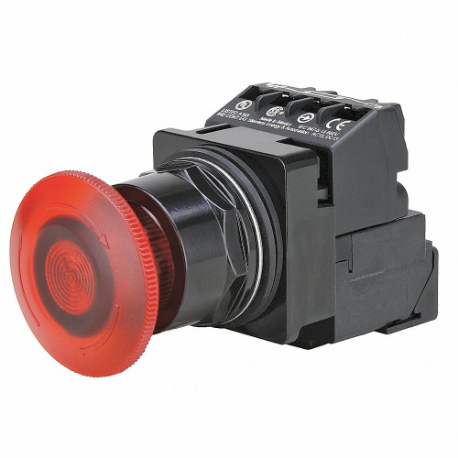

SIEMENS 52BR8GRAB Illuminated Push Button, Turn To Release, Red, 6V Ac, Led, 1No/1Nc
Item: CU2ULUModel: 52BR8GRABCross Ref: 41H071
7 In Stock
Ships within 2 days via
10.00% off
€334.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Illuminated Push Button |
| Ac Contact Rating | 10A @ 600V |
| Action | Maintained |
| Action Type | Turn To Release |
| Basic Material | Epoxy |
| Bezel Finish | Epoxy Coated , Metal |
| Contact Form | 1NO/1NC |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | Not Rated |
| Display Qty | 1 |
| Features | Bifurcated Movable Contacts, Boots Not Required, Nema A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals |
| Finish | Epoxy Coat |
| Head Material | Plastic |
| Head Size | 45 mm |
| Head Type | Mushroom |
| Head/lens Color | Red |
| Ip Rating | IP20, IP66 |
| Lamp Bulb Type | LED |
| Lamp Module Type | Transformer |
| Lamp Module Voltage | 120V AC |
| Lamp Type | LED |
| Lamp Voltage | 6V AC |
| Lamp Voltage - Maximum | 120V AC |
| Maintained Action Release | Twist |
| Manufacturer Warranty Length | 1 yr. |
| Mechanical Operating Durability | 3 x 10^5 |
| Mushroom Head Diameter | 45.47 mm |
| Nema Contact Rating Designation | A600/P600 |
| Nema Enclosure Rating | NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | 31°F |
| Operator Illumination | Illuminated |
| Operator Material | Epoxy Coated Metal |
| Operator Voltage Rating - Maximum | 600V AC |
| Overall Height | 4" |
| Overall Width | 2.15" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Replacement Lamps | Mfr. No. 52AEB2 |
| Resistance Properties | Corrosion Resistant |
| Series | 52 Series |
| Terminal Connection | Screw |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Lamp Module Type | Terminal Connection | Lamp Voltage | Ip Rating | Action | Contact Form | Contact Rating | Nema Contact Rating Designation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
52BT6D9JV | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NC | 10A @ 600V AC | A600/P600 | €219.28 | |
 |
52BT6D9J | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NC | 10A @ 600V AC | A600/P600 | €189.03 | |
|
52BT6D9JBV | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NC | 10A @ 600V AC | A600/P600 | €256.18 | |
|
52BT6D9K | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NO | 10A @ 600V AC | A600/P600 | €189.03 | |
|
52BT6D9JB | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NC | 10A @ 600V AC | A600/P600 | €233.71 | |
|
52BT6D9KBV | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NO | 10A @ 600V AC | A600/P600 | €256.18 | |
 |
52BT6D9AB | Full Voltage | Screw | 24V AC/DC | IP20, IP66 | Momentary | 1NO/1NC | 10A @ 600V AC | A600/P600 | €265.18 |
