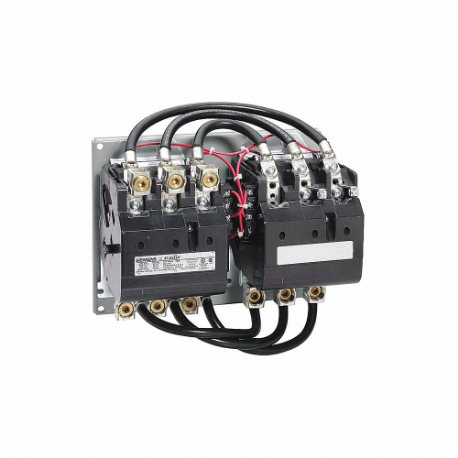

SIEMENS 43JG32AA Nema Magnetic Contactor, 4 Nema Contactor Size, 135 A Full Load Amps, 240V Ac, Reversing
Get it by Tuesday, Feb 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€11,717.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Contactor |
| Action Type | Reversing |
| Auxiliary Contact Form | 1NO |
| Auxiliary Contacts Included | 2NO/2NC |
| Coil Voltage | 110-120/220-240V AC |
| Contactor Style | NEMA |
| Depth | 6 1/4" |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Frequency | 60 Hz |
| Full Load Amps | 135A |
| Full Load Current - Resistive | Not Rated |
| Full Load Inductive Amps | 135A |
| Height | 8 1/2" |
| Horsepower @ Three Phase - 208v Ac | 40 hp |
| Horsepower @ Three Phase - 600v Ac | 100 hp |
| Hp @ 3 Phase - 208v | 40 hp |
| Hp @ 3 Phase - 240v | 50 hp |
| Hp @ 3 Phase - 480v | 100 hp |
| Hp @ 3 Phase - 575v | 100 hp |
| Hz | 60 Hz |
| Includes Auxiliary Contacts | Yes |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 104°F |
| Maximum Voltage Rating | 600V AC |
| Mechanical Operating Durability | 5000000 |
| Minimum Operating Temperature | -4°F |
| Mounting Hole Dia. | 7/25" |
| Mounting Hole Diameter | 0.28" |
| Mounting Hole Distance | 7.81" |
| Mounting Hole Width | 10 1/4" |
| Mounting Postion | Vertical |
| Mounting Style | Surface |
| Nema Enclosure Material | Not Applicable |
| Nema Size | 4 |
| Nominal Coil Voltage @ 60hz | 120/240V AC (Dual Rated) |
| Number Of Auxillary Contacts | 4 |
| Number Of Normally Closed Main Contacts | 0 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Overall Depth | 6 1/4" |
| Overall Height | 8 1/2" |
| Overall Width | 10.94" |
| Phase | Three |
| Resistive Full Load Amps | Not Rated |
| Response Time | 10 ms to 12 ms (Off-Delay Time), 18 ms to 34 ms (On-Delay Time) |
| Reversible | Yes |
| Reversing Capability | Reversing |
| Series | 43 Series |
| Terminal Connection Type | Screw Terminals |
| Width | 10.94" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 15.88 |
| Ship width (cm) | 27.79 |
| Country of Origin | MX |
Product Variants
| Model | Nema Size | Hz | Full Load Amps | Hp @ 3 Phase - 240v | Depth | Hp @ 3 Phase - 480v | Height | Hp @ 3 Phase - 575v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 40CP32AG | - | 50/60 Hz | 18A | 3 hp | 4 1/4" | 5 hp | 3.94" | 5 hp | €683.94 | |
| 43CP32AH | - | 60 Hz | 18A | 3 hp | 3 22/25" | 5 hp | 7.69" | 5 hp | €2,015.75 | |
| 40CP32AF | - | 60 Hz | 18A | 3 hp | 4 1/4" | 5 hp | 3.94" | 5 hp | €645.98 | |
| 43CP32AF | - | 60 Hz | 18A | 3 hp | 3 22/25" | 5 hp | 7.69" | 5 hp | €2,015.75 | |
| 40CP32AD | - | 60 Hz | 18A | 3 hp | 4 1/4" | 5 hp | 3.94" | 5 hp | €683.94 | |
| 43CP32AD | - | 60 Hz | 18A | 3 hp | 3 22/25" | 5 hp | 7.69" | 5 hp | €2,056.11 | |
| 43CP32AA | - | 60 Hz | 18A | 3 hp | 3 22/25" | 5 hp | 7.69" | 5 hp | €2,050.84 |
