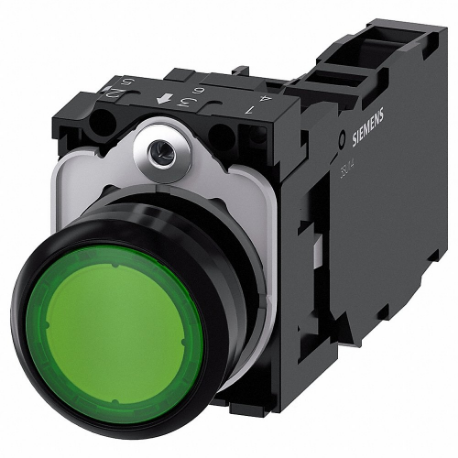

SIEMENS 3SU1102-0AB40-1FA0 Illuminated Push Button, Momentary, Green, 24V Ac/Dc, Led, 1No/1Nc
Item: CU2UGFModel: 3SU1102-0AB40-1FA0Cross Ref: 411K31
7 In Stock
Ships within 2 days via
10.00% off
€151.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Illuminated Push Button |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Action Type | Momentary |
| Application | Complete Unit |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Color | Green |
| Contact Form | 1NO/1NC |
| Contact Rating | 10A @ 600V AC 5A @ 600V DC |
| Dc Contact Rating | 5A @ 600V |
| Display Qty | 1 |
| Features | Four Id Keys With Different Codes, Possible To Select 1 To 4 Positions With Id Keys |
| Head Material | Plastic |
| Head/lens Color | Green |
| Indicator | Light Source |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 24V AC/DC |
| Lamp Type | LED |
| Lamp Voltage | 24V AC/DC |
| Lamp Voltage - Maximum | 24V AC/DC |
| Legend | No Legend |
| Manufacturer Warranty Length | 1 yr. |
| Mechanical Operating Durability | 3 x 10^6 |
| Nema Contact Rating Designation | A600/R300 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Cycles | 3000000 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Illuminated |
| Operator Material | Plastic |
| Operator Voltage Rating - Maximum | 500V |
| Overall Depth | 6.5" |
| Overall Height | 1.35" |
| Overall Width | 8" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Replacement Lamps | Not Replaceable |
| Series | 3SU Series |
| Special Features | Yes |
| Terminal Connection | Screw |
| Type Of Operator | Flush Button |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Lamp Module Type | Terminal Connection | Lamp Voltage | Ip Rating | Action | Contact Form | Contact Rating | Nema Contact Rating Designation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
52BT6D9JV | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NC | 10A @ 600V AC | A600/P600 | €219.28 | |
 |
52BT6D9J | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NC | 10A @ 600V AC | A600/P600 | €189.03 | |
|
52BT6D9JBV | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NC | 10A @ 600V AC | A600/P600 | €256.18 | |
|
52BT6D9K | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NO | 10A @ 600V AC | A600/P600 | €189.03 | |
|
52BT6D9JB | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NC | 10A @ 600V AC | A600/P600 | €233.71 | |
|
52BT6D9KBV | Full Voltage | Pressure Plate | 24V AC/DC | IP10, IP11, IP14, IP52, IP54, IP56, IP66 | Maintained/Momentary | 1NO | 10A @ 600V AC | A600/P600 | €256.18 | |
 |
52BT6D9AB | Full Voltage | Screw | 24V AC/DC | IP20, IP66 | Momentary | 1NO/1NC | 10A @ 600V AC | A600/P600 | €265.18 |
