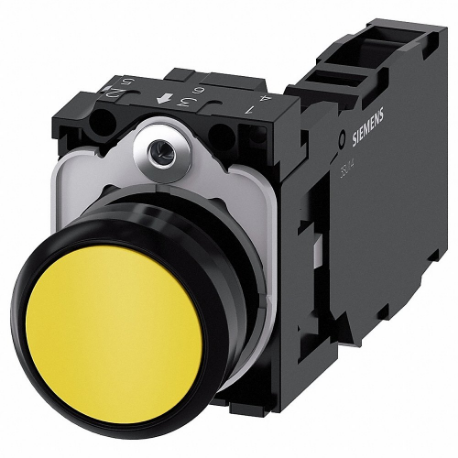

SIEMENS 3SU1100-0AB30-1FA0 Non-Illuminated Push Button, 22 mm Size, Momentary, Yellow | CU2VGZ 411K36

SIEMENS 3SU1100-0AB30-1FA0 Non-Illuminated Push Button, 22 mm Size, Momentary, Yellow

Item: CU2VGZModel: 3SU1100-0AB30-1FA0Cross Ref: 411K36
7 In Stock

Ships within 2 days via

€53.43
10.00% off
€48.08 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Non-Illuminated Push Button
Ac Contact Rating 10A @ 600V
Action Momentary
Action Type Momentary
Application Complete Unit
Basic Material Polyamide
Bezel Material Plastic
Color Yellow
Contact Form 1NO/1NC
Contact Rating 10A @ 600V AC 1A @ 600V DC
Dc Contact Rating 1A @ 600V
Display Qty 1
Features Four Id Keys With Different Codes, Possible To Select 1 To 4 Positions With Id Keys
Head/lens Color Yellow
Ip Rating IP66, IP67, IP69, IP69K
Legend No Legend
Manufacturer Warranty Length 1 yr.
Material Plastic
Mechanical Operating Durability 1 x 10^7
Nema Contact Rating Designation A600/R300
Nema Enclosure Rating NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12
Nema Rating NEMA 1, NEMA 12, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Number Of Indicator Lights 0
Number Of Operators 1"
Operating Cycles 10000000
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum -13°F
Operator Illumination Non Illuminated
Operator Material Polyamide
Operator Voltage Rating - Maximum 500V
Overall Depth 3.26"
Overall Height 1.57"
Overall Width 1.18"
Panel Mounting Hole Diameter 22 mm
Product Type Push Button Operators
Push Button Style Flush
Series 3SU Series
Special Features Yes
Terminal Connection Screw
Type Of Operator Flush Button

Shipping Info:

Ship weight (kg) 0.07
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginDE

Product Variants

ProductModelType Of OperatorLegendIp RatingAction TypeContact FormTerminal ConnectionNema Contact Rating DesignationBasic MaterialPrice
SIEMENS 3SU1150-1HA20-1CG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Pull, Red, 1Nc, 1/12/2/3/3R/4/4X | CU2RTF 411J87 3SU1150-1HA20-1CG040 mm Mushroom HeadEmergency StopIP67, IP69K-1NCScrewA600/R300Zinc Alloy€129.88
SIEMENS 3SU1100-1HA20-1FG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Pull, Red, 1No/1Nc | CU2RTG 411K41 3SU1100-1HA20-1FG040 mm Mushroom HeadEmergency StopIP67, IP69K-1NO/1NCScrewA600/R300Polyamide€108.71
SIEMENS 3SU1150-1HB20-1CG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Twist, Red, 1Nc | CU2RTH 411J86 3SU1150-1HB20-1CG040 mm Mushroom HeadEmergency StopIP67, IP69KMaintained Push / Twist-ScrewA600/R300Zinc Alloy€130.25
SIEMENS 3SU1150-1HB20-1FG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Twist, Red, 1No/1Nc | CU2RTJ 411K59 3SU1150-1HB20-1FG040 mm Mushroom HeadEmergency StopIP67, IP69KMaintained Push / Twist1NO/1NCScrewA600/R300-€112.50
SIEMENS 52PP2W2AP Emergency Stop Push Button, 30 mm Size, Maintained Push/Maintained Pull, Red, 1No/1Nc | CU2RTK 54JJ65 52PP2W2AP45 mm Push-Pull KnobNo LegendIP20, IP66-1NO/1NCScrewA600/P600Metal€315.26
SIEMENS 3SU1150-1HA20-1FG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Pull, Red, 1No/1Nc, Plastic | CU2RTL 411K58 3SU1150-1HA20-1FG040 mm Mushroom HeadEmergency StopIP67, IP69K-1NO/1NCScrewA600/R300Zinc Alloy€116.06
SIEMENS 3SU1100-0AB10-1FA0 Non-Illuminated Push Button, 22 mm Size, Momentary, Black | CU2VGM 411K27 3SU1100-0AB10-1FA0Flush ButtonNo Legend-Momentary1NO/1NCScrewA600/R300Polyamide€87.16
