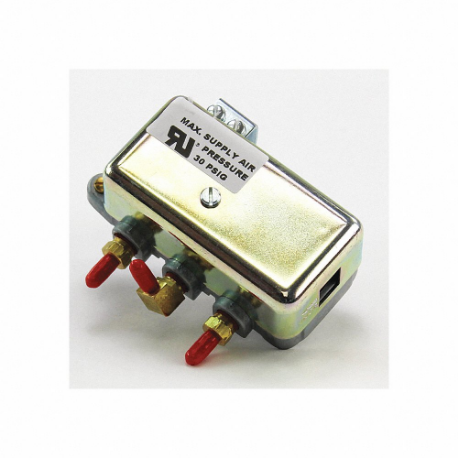

SIEMENS 147-2000 Powers Positioning Relay, Pneumatic, Positioning Relay, 3 To 12 Psig, 3 To 12 Psig
Item: CU4NCEModel: 147-2000Cross Ref: 50PM72
7 In Stock
Ships within 2 days via
10.00% off
€382.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Adjustment Method | Screwdriver |
| Air Connections Size | 1/8" |
| Air Connections Type | NPT |
| Air Consumption | 40 SCIM |
| Ambient Temp. Range | +35°F to +115°F |
| Application | Provides Positive Positioning Of A Pneumatic Valve Or Damper Actuator. |
| Body Material | Zinc |
| Capacity | 410 SCIM |
| Compatible Product Type | Pneumatic Actuators, Pneumatic Valves |
| Construction | Zinc |
| Control Range | 3 psig to 12 psig |
| Control Type | Positioning Relay |
| Cover Material | Steel |
| Depth | 1 11/16" |
| Fits Brand | Multiple |
| For Actuator | Pneumatic Damper, Pneumatic Valve |
| For Use With Mfr. Model Number | 591, 593, 594, 599 |
| Height | 4 1/4" |
| Includes | Mounting Kit |
| Main Port Connection Size | 1/8" |
| Maximum Operating Span | 12 psi |
| Maximum Starting Point | 10 psi |
| Min. Operating Span | 3 psi |
| Min. Starting Point | 3 psi |
| Mounting | Mounting Kit |
| Output Capacity | 410 SCIM |
| Overall Depth | 4 1/4" |
| Overall Height | 3 7/8" |
| Overall Width | 3 9/16" |
| Pressure Range | 3 psig to 12 psig |
| Product Type | Damper Actuator Positioner |
| Spring Material | Steel |
| Supply Pressure | 60 psi |
| Type | Pneumatic |
| Width | 1 15/16" |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 9.84 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 9.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Accessory Type | Mounting | Type | Coil Voltage | Voltage | Number Of Contacts | Air Connections Size | Air Connections Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

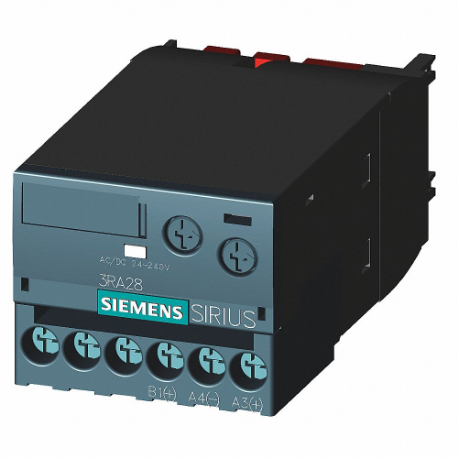

3RA28121DW10 | Timing Relay | Front | - | 24-240V AC/DC | 24-240V AC/DC | - | - | - | €559.38 | |
 |

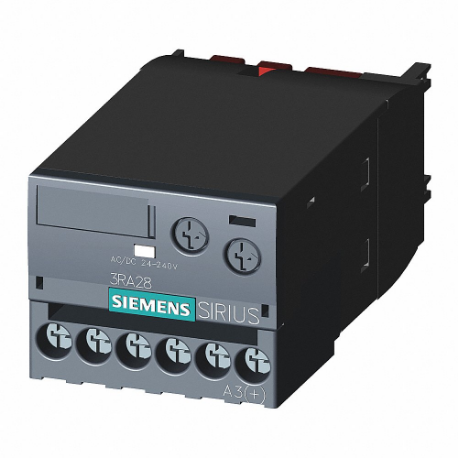

3RA28111CW10 | Timing Relay | Front | - | 24-240V AC/DC | 24-240V AC/DC | 1 | - | - | €400.46 | |
 |

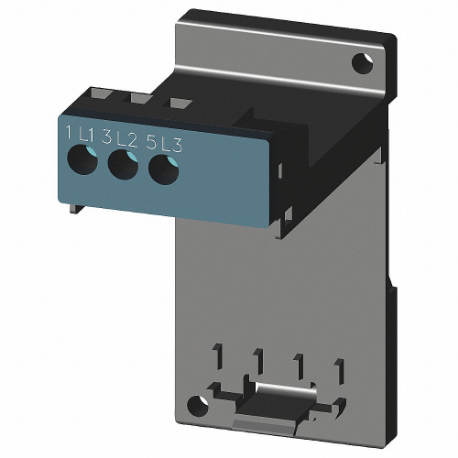

3RU29163AA01 | Stand Alone Assembly Support | - | - | - | - | - | - | - | €34.89 |
