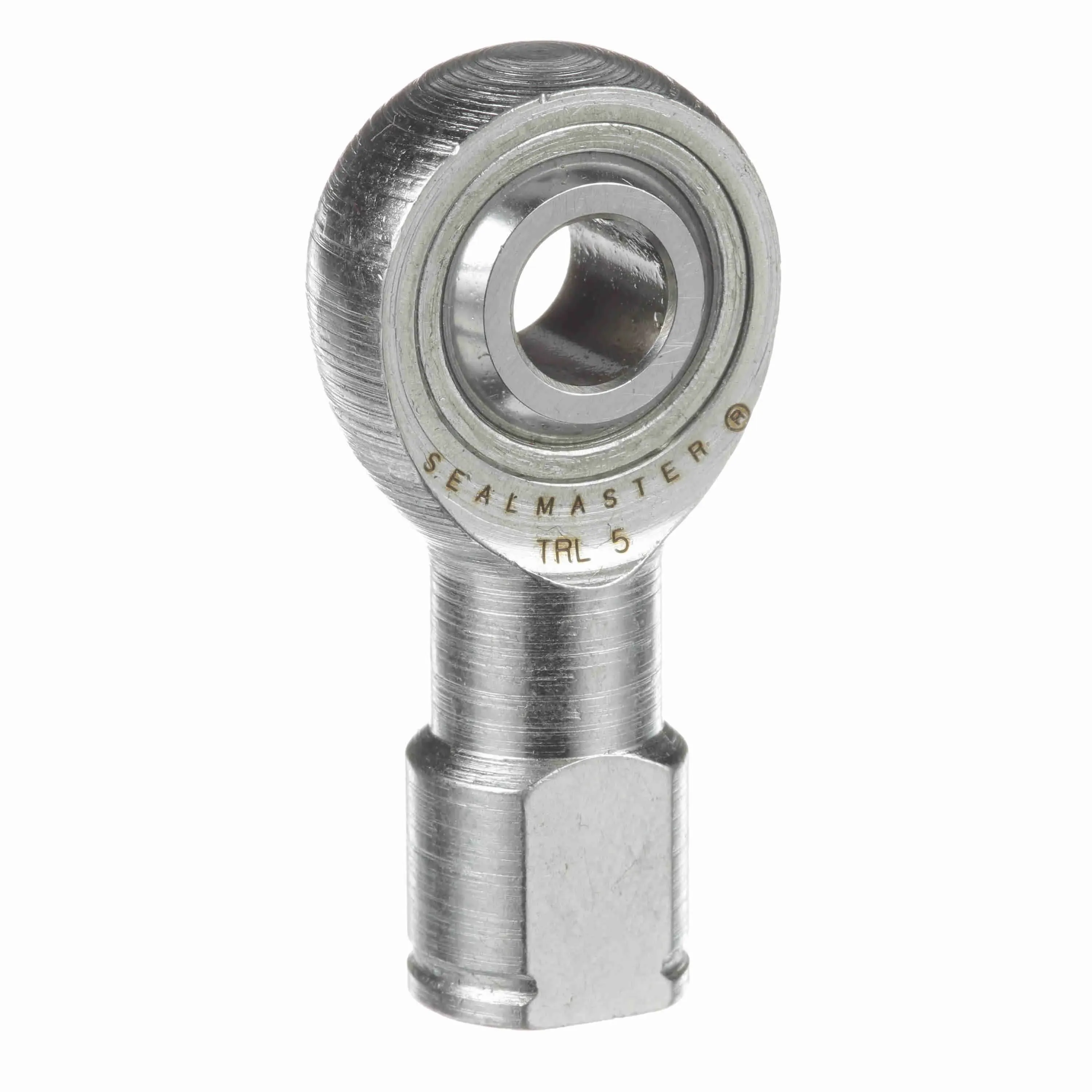

SEALMASTER TRL 5 1510500000 Rod End Bearing, 5/16 Inch Bore, 11/32 Inch Housing Width, Female, 5/16-24 UNF, Left Hand
Get it by Tuesday, Sep 1
€21.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | No |
| Across Wrench Flats | 0.437" |
| Axial Load | 335 |
| Ball Dia. | 5/8" |
| Ball Finish | Chrome Plated |
| Ball Flat Dia. | 0.447" |
| Ball Material | Alloy, Steel |
| Ball Width | 0.437" |
| Base Dia. | 0.531" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 5/16" |
| Class | Precision |
| Configuration | Female |
| Construction | Three Piece Rod End With Zerk Fitting |
| Head Dia. | 7/8" |
| Housing Style | Female Rod End |
| Housing Width | 0.344" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1.38" |
| Lubrication | No Zerk Fitting |
| Lubrication Method | No Fitting |
| Lubrication Type | Grease |
| Max. Ambient Temp. | 350°F |
| Max. Static Radial Load | 3350 |
| Misalignment Angle | -7° to +7° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | TR |
| Race Material | Carbon Steel |
| Race Material Property | Corrosion Resistant Plating |
| Series | Precision Series |
| Thread Direction | Left Hand |
| Thread Length | 0.719" |
| Thread Type | UNF |
| Type | Female Rod End |
| Zerk Fitting Sw | No |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 7.24 |
| Ship length (cm) | 5.84 |
| Ship width (cm) | 2.16 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Dia. | Shank Thread Size | Static Radial Load Capacity | Head Width | Race Material | Type | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TRL 16N | 1" | 1 7/8" | - | - | - | Carbon Steel | Female Rod End | - | €195.62 | |
 |
TRL 12YN | 3/4" | - | - | - | - | Carbon Steel | - | - | €102.04 | |
 |
TRL 6Y | - | - | #3/8-24 | 4450 lbf. | - | - | - | Grade Precision | €29.62 | |
 |
TR 5 | 5/16" | 5/8" | - | - | - | Carbon Steel | Female Rod End | - | €19.40 | |
 |
TRL 8N | 1/2" | 0.937" | - | - | - | Carbon Steel | Female Rod End | - | €42.93 | |
 |
TR 12N | 3/4" | 1.312" | - | - | - | Carbon Steel | Female Rod End | - | €62.33 | |
 |
TR 4N | 1/4" | 1/2" | - | - | - | Carbon Steel | Female Rod End | - | €22.71 |
