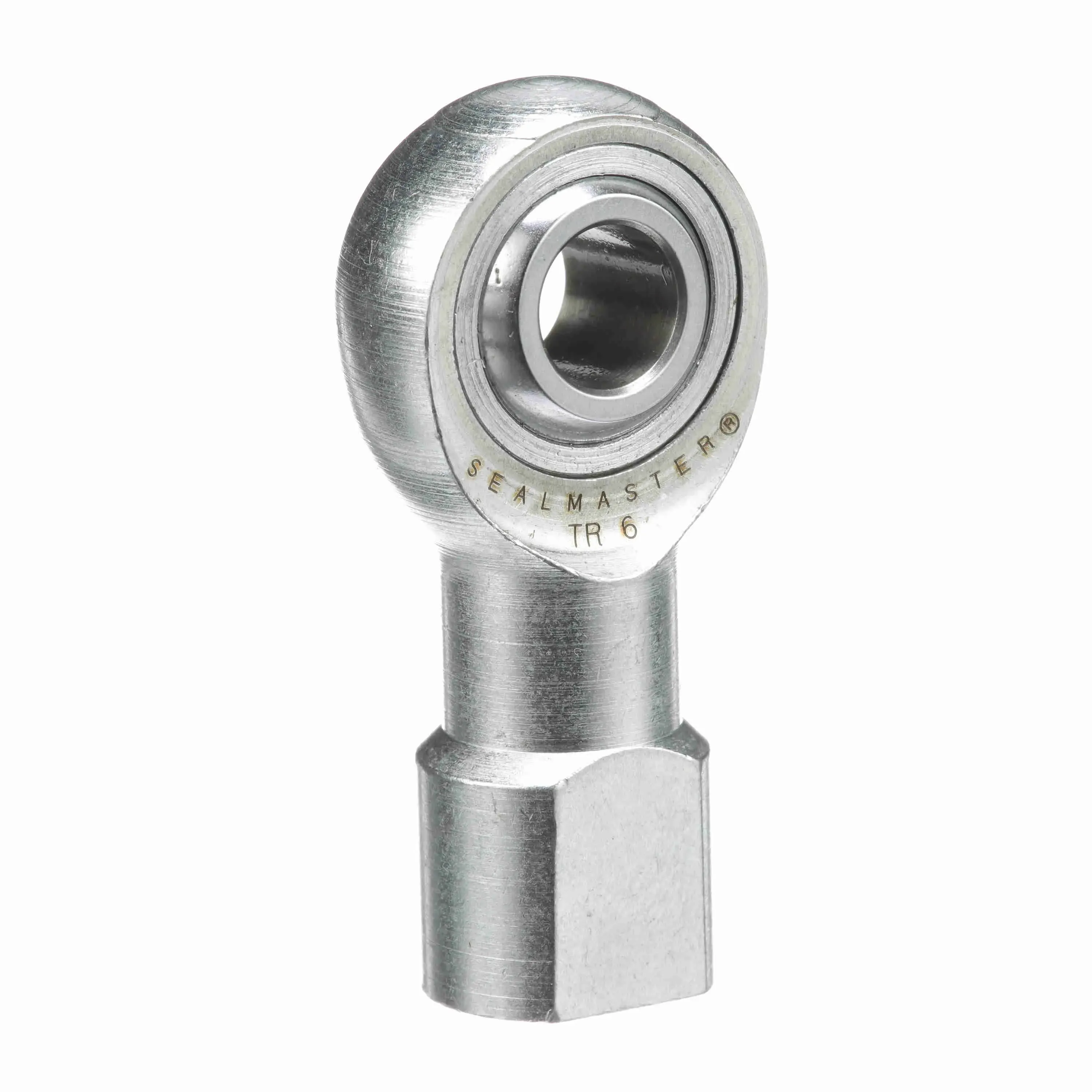

SEALMASTER TR 6 1410600000 Rod End Bearing, 3/8 Inch Bore, 13/32 Inch Housing Width, Female, 3/8-24 UNF, Right Hand
Get it by Tuesday, Dec 23
€21.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | No |
| Across Wrench Flats | 0.562" |
| Axial Load | 445 |
| Ball Diameter | 0.718" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.517" |
| Ball Material | Alloy Steel |
| Ball Width | 1/2" |
| Base Diameter | 0.688" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 3/8" |
| Class | Precision |
| Configuration | Female |
| Construction | Three Piece Rod End With Zerk Fitting |
| Head Dia. | 1" |
| Housing Style | Female Rod End |
| Housing Width | 0.406" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1.63" |
| Lubrication | No Zerk Fitting |
| Lubrication Method | No Fitting |
| Lubrication Type | Grease |
| Max. Ambient Temp. | 350°F |
| Max. Static Radial Load | 4450 |
| Misalignment Angle | -6° to +6° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | TR |
| Race Material | Carbon Steel |
| Race Material Property | Corrosion Resistant Plating |
| Series | Precision Series |
| Thread Direction | RH |
| Thread Length | 0.906" |
| Thread Size | 3/8"-24 |
| Thread Type | UNF |
| Type | Female Rod End |
| Zerk Fitting Sw | No |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 5.97 |
| Ship width (cm) | 1.65 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Diameter | Bore Diameter | Ball Material | Race Material | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
TRL 16N | 1" | 1 7/8" | - | Alloy Steel | Carbon Steel | Female Rod End | €195.62 | |
 |
TRL 12YN | 3/4" | - | - | Alloy Steel | Carbon Steel | - | €87.46 | |
 |
TRL 6Y | - | - | - | - | - | - | €29.62 | |
 |
TR 5 | 5/16" | 5/8" | - | Alloy Steel | Carbon Steel | Female Rod End | €19.40 | |
 |
TRL 8N | 1/2" | 0.937" | - | Alloy Steel | Carbon Steel | Female Rod End | €42.93 | |
 |
TR 12N | 3/4" | 1.312" | - | Alloy Steel | Carbon Steel | Female Rod End | €62.33 | |
 |
TR 4N | - | 1/2" | 1/4" | Alloy Steel | Carbon Steel | Female Rod End | €22.71 |
