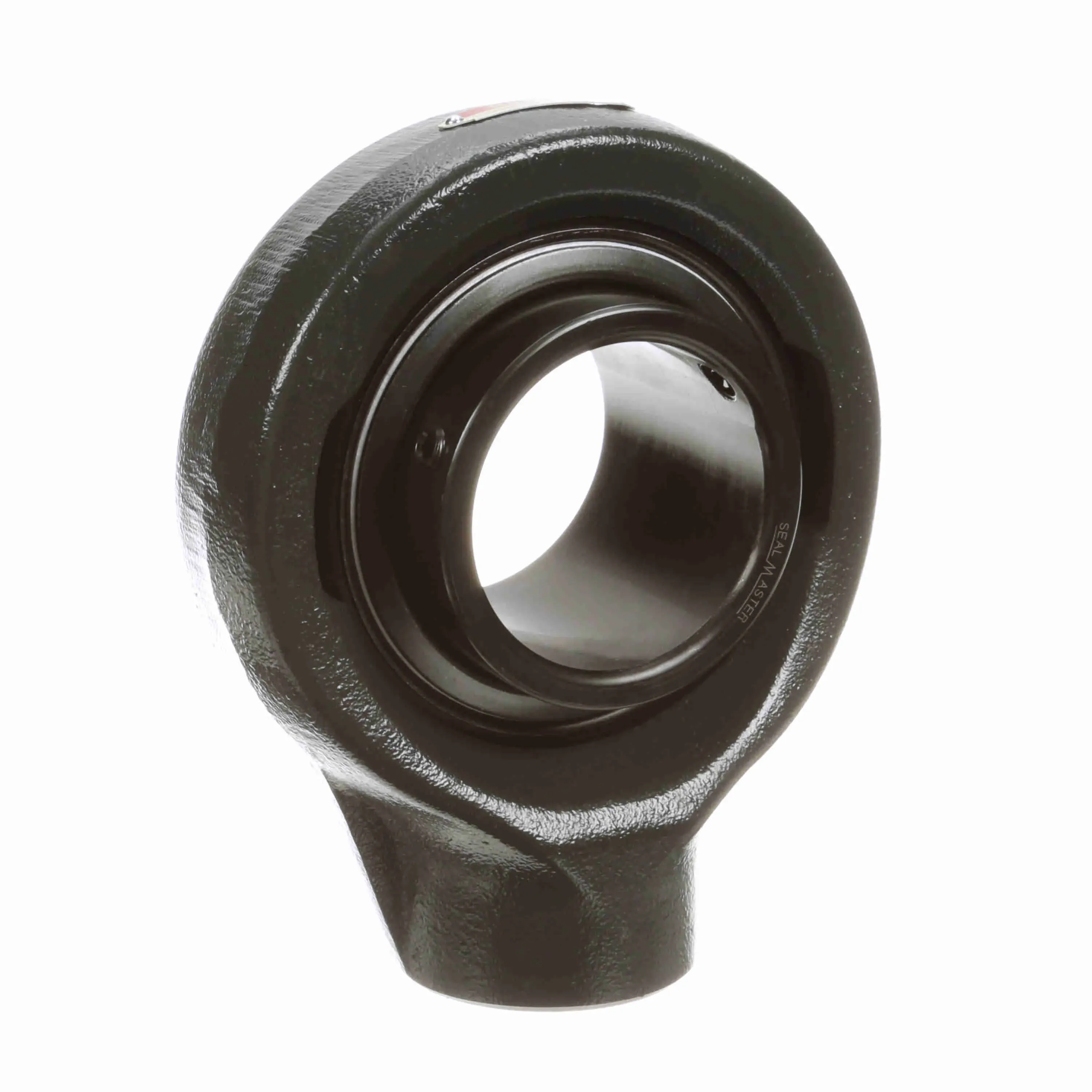

SEALMASTER SCHB-39 700374 Ball Bearing, Hanger Unit, Black Oxided, Setscrew Lock, 2.438 Inch
2 7/16"
Get it by Tuesday, Aug 25
€594.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 4" |
| Base Width | 2.31" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 14/25" |
| Dynamic Load Capacity | 11789 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Hanger Block |
| Housing Type | Hanger Unit |
| Housing Width | 1 11/25" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-27 |
| Inside Ring Outside Dia. | 2.981" |
| Length Through Bore | 2.559" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 3000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 6.81" |
| Overall Length | 5.63" |
| Overall Width | 2 14/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | SCHB Series |
| Shaft Locking Type | Set Screw |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
| Thread Depth | 1.13" |
| Thread Size | 1 1/4"-11.5 |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0989 cPS |
| Vibration Frequency Outer Ring Defect | 0.0678 cPS |
| Vibration Frequency Roller Spin | 0.0432 cPS |
Shipping Info:
| Ship weight (kg) | 4.12 |
| Ship height (cm) | 17.48 |
| Ship length (cm) | 17.48 |
| Ship width (cm) | 6.68 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Seal Type | Bore Dia. | Dynamic Load Capacity | Overall Width | Base Width | Base To Center Height | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SCHB-20 | Cast Iron | Felt Labyrinth Seal | 1 1/4" | 5782 lbs. | 1.69" | 1 14/25" | 2 3/4" | 4 14/25" | €297.57 | |
 |
SCHB-46 | Cast Iron | Standard Felt Seal | - | - | - | - | - | - | €1,002.61 | |
 |
SCHB-31 | Cast Iron | Felt Labyrinth Seal | 1 15/16" | 7889 lbs. | 2.03" | 1 22/25" | 3 1/4" | 5 11/25" | €425.13 | |
|
SCHB-43C | Cast Iron | Contact Seal | - | - | - | - | - | - | €817.44 | |
 |
SCHB-18C | Cast Iron | Contact Seal | - | - | - | - | - | - | €958.47 | |
|
SCHB-38 | Cast Iron | Standard Felt Seal | - | - | - | - | - | - | €766.76 | |
 |
SCHB-207 | Cast Iron | Felt Labyrinth Seal | - | - | - | - | - | - | €390.59 |
