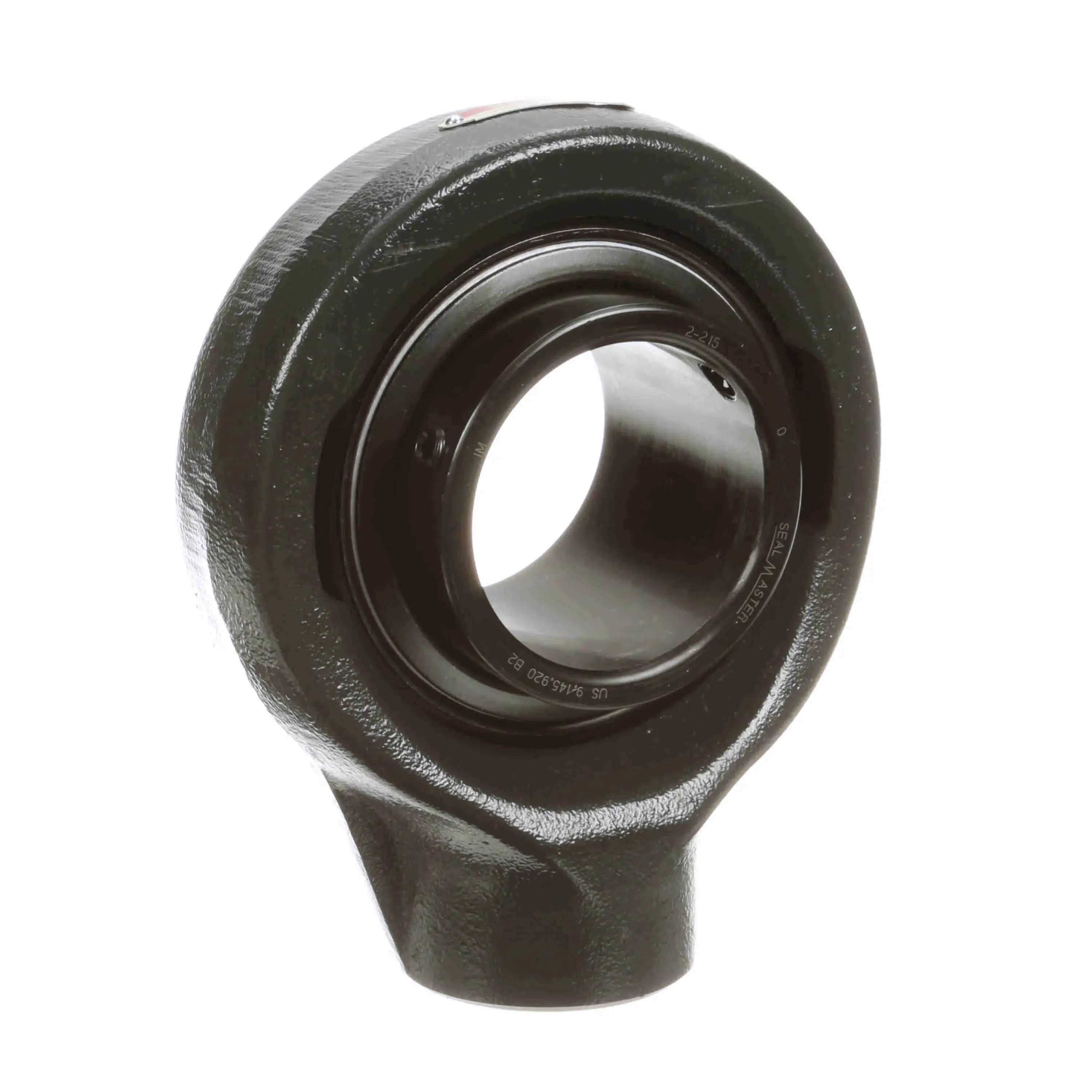

SEALMASTER SCHB-47 700380 Ball Bearing, Hanger Unit, Black Oxided, Setscrew Lock, 2.938 Inch
2 15/16"
Get it by Tuesday, Dec 23
€1,093.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 4 5/8" |
| Base Width | 2 3/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bore Dia. | 2 15/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 3/4" |
| Duty Series | Standard |
| Dynamic Load Capacity | 14839 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 3 1/2" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Hanger Block |
| Housing Width | 1 3/4" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 3.641" |
| Inner Ring Outside Diameter | 3.641" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 2-215 |
| Length | 8.13" |
| Length Through Bore | 3.063" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 2450 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Length | 6 1/2" |
| Overall Width | 3.06" |
| Product Type | Sealmaster Gold-Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Series | SCHB Series |
| Shaft Locking Type | Set Screw |
| Shaft Size | 2 15/16" |
| Size Code | 2-215 |
| Static Load Rating | 11224 lbs. |
| Thread Depth | 1 1/4" |
| Width | 7.94" |
Shipping Info:
| Ship weight (kg) | 6.53 |
| Ship height (cm) | 20.17 |
| Ship length (cm) | 20.65 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Housing Type | Bore Dia. | Overall Width | Overall Height | Overall Length | Seal Type | Shaft Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SCHB-20 | Cast Iron | Hanger Unit | 1 1/4" | 1.69" | 4 14/25" | 3.63" | Felt Labyrinth Seal | - | €297.57 | |
 |
SCHB-46 | Cast Iron | Hanger | - | - | - | - | Standard Felt Seal | 2 7/8" | €1,002.61 | |
 |
SCHB-31 | Cast Iron | Hanger Unit | 1 15/16" | 2.03" | 5 11/25" | 4.38" | Felt Labyrinth Seal | - | €425.13 | |
|
SCHB-43C | Cast Iron | Hanger | - | - | - | - | Contact Seal | 2 11/16" | €817.44 | |
 |
SCHB-18C | Cast Iron | Hanger | - | - | - | - | Contact Seal | 1 1/16" | €958.47 | |
|
SCHB-38 | Cast Iron | Hanger | - | - | - | - | Standard Felt Seal | 2 3/8" | €766.76 | |
|
SCHB-16C CR | - | - | - | - | - | - | - | - | €426.00 |
