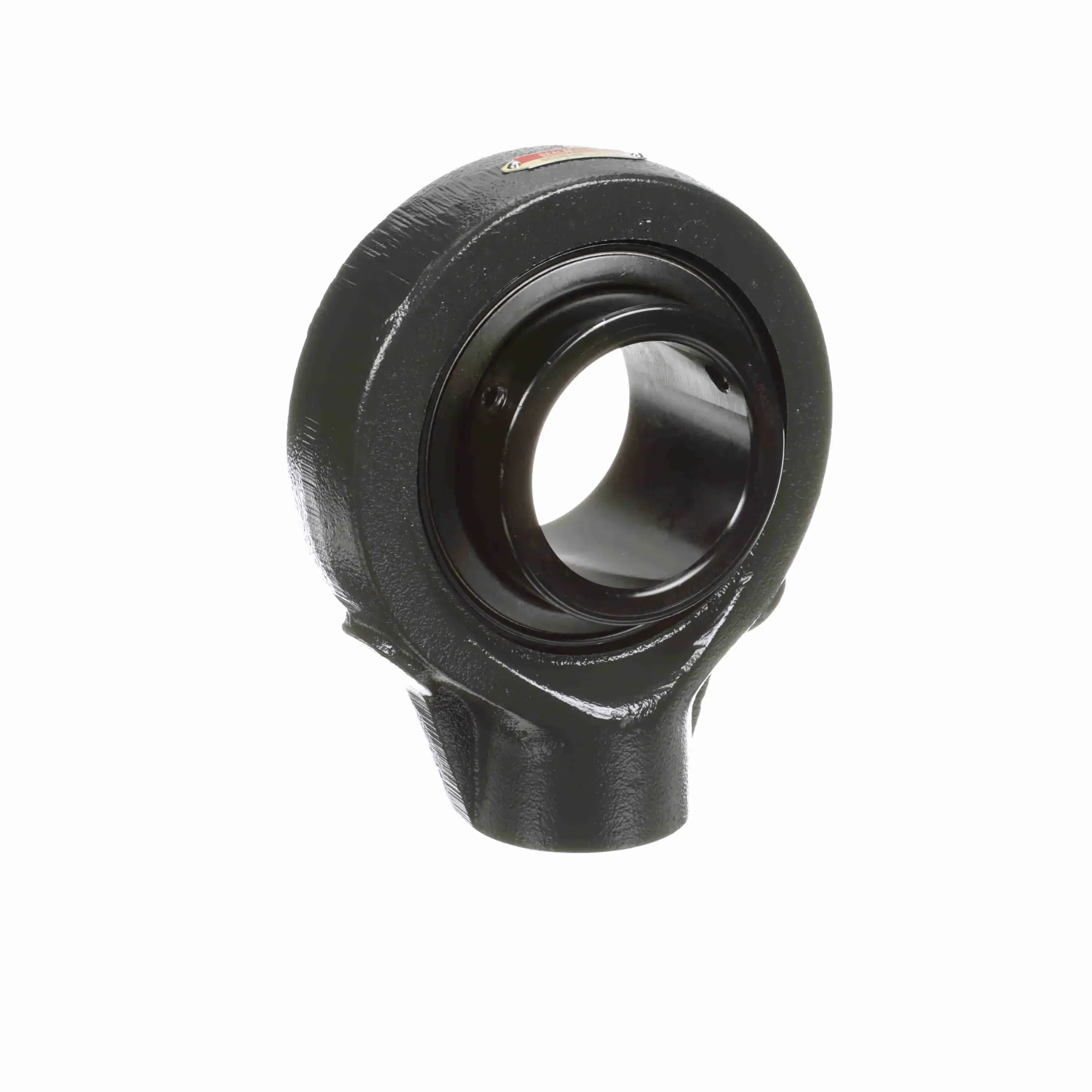

SEALMASTER SCHB-48 700382 Ball Bearing, Hanger Unit, Black Oxided, Setscrew Lock, 3 Inch
3"
Get it by Tuesday, Dec 23
€1,476.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 4 7/8" |
| Base Width | 2.81" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bore Dia. | 3" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.938" |
| Dynamic Load Capacity | 17412 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 3 11/25" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Ductile Iron |
| Housing Style | Hanger Block |
| Housing Type | Hanger Unit |
| Housing Width | 1 21/25" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 3.922" |
| Inner Ring Outside Diameter | 3.922" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | SK-110 |
| Length | 9.06" |
| Length Through Bore | 3.248" |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2250 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 8.31" |
| Overall Width | 3 1/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | CSCHB Series |
| Shaft Locking Type | Set Screw |
| Size Code | 2-33 |
| Static Load Rating | 13174 lbs. |
| Thread Depth | 1 1/4" |
| Width | 8.88" |
Shipping Info:
| Ship weight (kg) | 7.43 |
| Ship height (cm) | 22.56 |
| Ship length (cm) | 23.01 |
| Ship width (cm) | 8.74 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Housing Type | Bore Dia. | Overall Width | Overall Height | Overall Length | Seal Type | Shaft Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SCHB-20 | Cast Iron | Hanger Unit | 1 1/4" | 1.69" | 4 14/25" | 3.63" | Felt Labyrinth Seal | - | €297.57 | |
 |
SCHB-46 | Cast Iron | Hanger | - | - | - | - | Standard Felt Seal | 2 7/8" | €1,002.61 | |
 |
SCHB-31 | Cast Iron | Hanger Unit | 1 15/16" | 2.03" | 5 11/25" | 4.38" | Felt Labyrinth Seal | - | €425.13 | |
|
SCHB-43C | Cast Iron | Hanger | - | - | - | - | Contact Seal | 2 11/16" | €817.44 | |
 |
SCHB-18C | Cast Iron | Hanger | - | - | - | - | Contact Seal | 1 1/16" | €958.47 | |
|
SCHB-38 | Cast Iron | Hanger | - | - | - | - | Standard Felt Seal | 2 3/8" | €766.76 | |
|
SCHB-16C CR | - | - | - | - | - | - | - | - | €426.00 |
