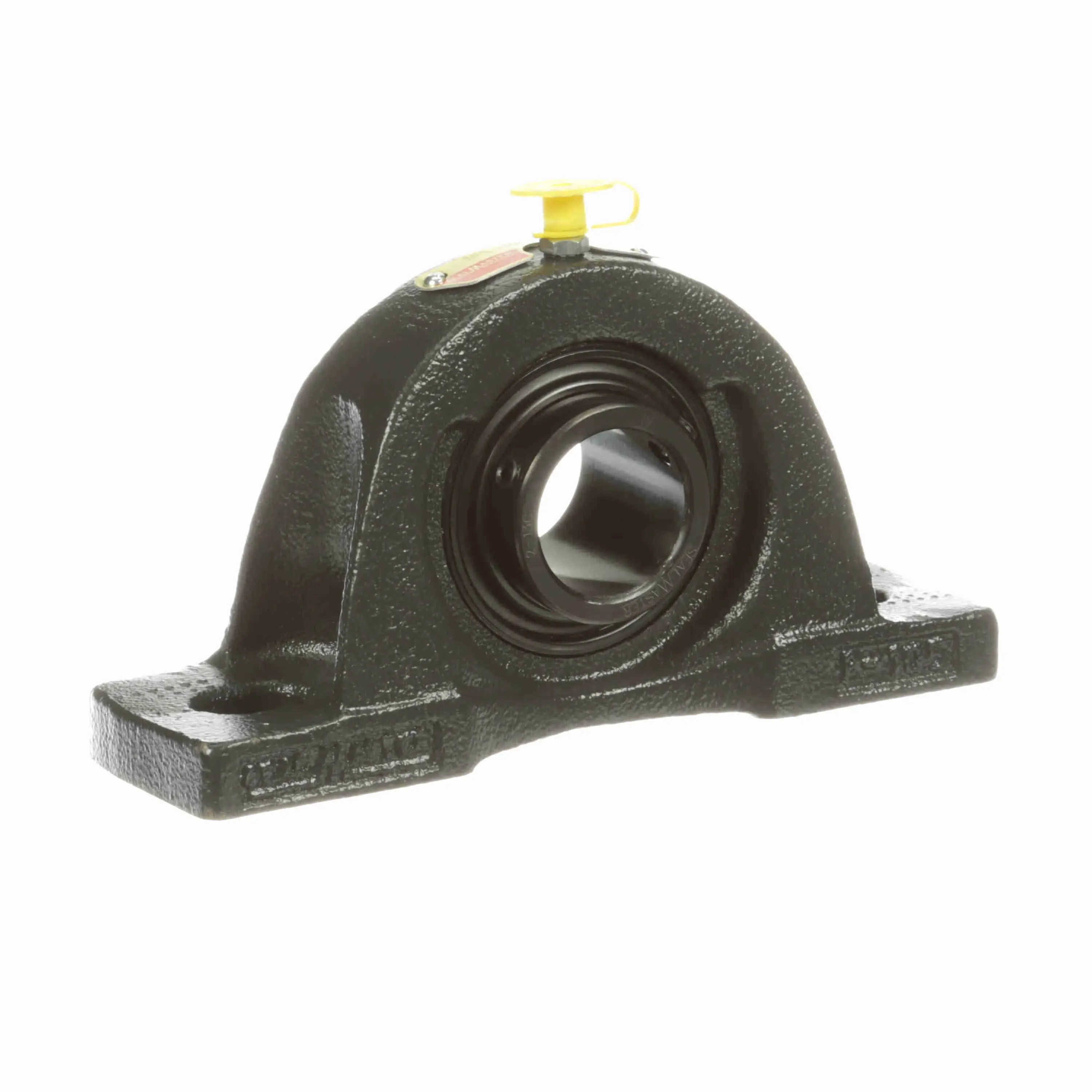

SEALMASTER NPL-19C 703559 Pillow Block Bearing, 2 Bolt, 1.18 Inch Bore, Set Screw Mount
Get it by Tuesday, Sep 1
€144.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 6 1/2" |
| Base To Center Height | 1 9/16" |
| Base Width | 1 22/25" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 4 3/4" |
| Bore Dia. | 1 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 7/8" |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 11/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt, Low Base |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-13C |
| Inside Ring Outside Dia. | 1.594" |
| Length Through Bore | 1.497" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 5.06" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5450 RPM |
| Min. Bolt Spacing | 4 11/25" |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 1/4" |
| Overall Length | 6 1/2" |
| Overall Width | 1 22/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 1.51 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Housing Material | Bore Dia. | Base Width | Overall Height | Overall Width | Bolt Size | Bearing Insert Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NPL-46 | - | Cast Iron | 2 7/8" | - | 6.437" | 3 3/8" | - | Alloy, Steel | €6,412.04 | |
 |
NPL-10 DBB | High Temp Labyrinth | Cast Iron | 5/8" | 1 1/2" | 2.31" | 1 1/2" | 3/8" | Steel | €129.83 | |
 |
NPL-206TM | Standard Felt Seal | - | - | - | - | - | - | - | €195.95 | |
|
NPL-21 | Standard Felt Seal | Cast Iron | 1 5/16" | 1.88" | 3.687" | 1 7/8" | - | Alloy, Steel | €855.72 | |
 |
NPL-11 | Felt Labyrinth Seal | Cast Iron | 11/16" | 1 1/2" | 2.31" | 1 1/2" | 3/8" | Steel | €165.07 | |
 |
NPL-10 | Felt Labyrinth Seal | Cast Iron | 5/8" | 1 1/2" | 2.31" | 1 1/2" | 3/8" | Steel | €334.52 | |
 |
NPL-8 | Felt Labyrinth Seal | Cast Iron | 1/2" | 1 1/2" | 2.31" | 1 1/2" | 3/8" | Steel | €373.09 |
