What is the significance of open-ended self-locking inserts?

Inserts having an open end allow installation of fasteners longer than the inserts.

What are some compatible accessories used with these self-locking inserts?

Raptor Supplies offers compatible insert tools like drill bits, standard taps, bolts with two nuts and installation bits for installing these inserts.

How to install a self-locking insert?

Drill a hole according to the insert length & diameter using a standard drill. Tap the drilled hole using a standard tap of the desired thread size. Wind the insert into the hole like an ordinary fastener using a screwdriver, bolt & jam nut or an optional E-Z LOK drive tool. 5 minutes after the threaded insert is placed in the hole, the pre-applied Loctite adhesive on the external threads starts setting for installing the fastener in minutes. After fully curing (72 hours), they can seal against liquids or gases having pressure up to 6000 psi.

Can we reuse these inserts once removed?

The external thread adhesive of these inserts starts setting after installation. Users can install a bolt inside it only if they do not want to remove it in future. Removing the bolt from the insert & the insert from the material after installation may destroy the adhesive & hence the insert's effectiveness. So, users can not reuse these inserts once removed from the application surface.

Home
Fasteners
Thread Insert
Self Locking Inserts

Self Locking Inserts

Filter

Self-locking inserts are suitable for locking threaded fasteners inside a tapped hole in automobile, aerospace and maintenance applications. Raptor Supplies offers these thread-locking...Read more

MICRO 100 -

Locking Screws, Quick Change

Style	Model	Finish	Price	Pkg. Qty.
A	QC-10	Uncoated	€45.35	10
B	41315	Uncoated	€13.59	1	RFQ
A	QC-1	Uncoated	€6.46	1
C	QC-20	Uncoated	€44.45	10
A	QC-1LH	Uncoated	€17.72	1
C	QC-2	Uncoated	€6.46	1

MICRO 100 -

Locking Screws, Standard

Style	Model	Finish	Price

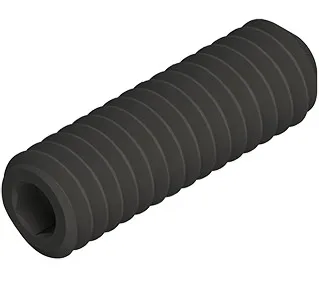

A	40285	Uncoated	€1.71	RFQ

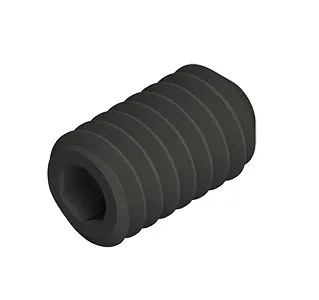

B	41263	Uncoated	€13.59	RFQ

POWERS FASTENERS -

Carbon Steel Self Locking Inserts

Style	Model	Internal Thread Size	External Thread Size	Wall Type	Min. Full Thread Depth	External Class	Internal Class	Thread Type	Power Driver	Price	Pkg. Qty.
A	319-720-PK5	-	-	-	-	-	-	UNF Internal, UNC External	4ZE57	€21.00	5
B	319-8-PK5	-	-	Thin Wall	-	Class 2A	Class 2B	Coarse	-	€23.80	5
C	319-7-PK5	-	-	-	-	-	-	Coarse	-	€20.73	5
D	329-004-PK10	#4-40	#10-32	Heavy Wall	9/32"	Class 2A	Class 2B	Coarse	-	€20.00	10
E	329-006-PK10	#6-32	1/4"-20	Heavy Wall	11/32"	Class 2A	Class 2B	Coarse Internal/Coarse External	4ZE51	€16.44	10
F	550-006-PK5	#6-32	M6 x 1	Heavy Wall	5/16"	Class 2A	Class 2B	UNC Internal, Metric External	4ZE51	€17.36	5
G	329-008-PK10	#8-32	5/16"-18	Heavy Wall	7/16"	Class 2A	Class 2B	Coarse	4ZE52	€18.32	10
H	550-008-PK5	#8-32	M8 x 1.25	Heavy Wall	23/64"	Class 2A	Class 2B	UNC Internal, Metric External	4ZE52	€18.57	5
I	319-3	#10-24	5/16"-18	Thin Wall	3/8"	Class 2A	Class 2B	Coarse	4ZE53	€24.55	10
J	329-3	#10-24	3/8"-16	Heavy Wall	15/32"	Class 2A	Class 2B	Coarse	4ZE53	€24.59	10
K	550-1024 -PK5	#10-24	M8 x 1.25	Heavy Wall	31/64"	Class 2A	Class 2B	-	4ZE53	€14.13	5
L	329-332-PK10	#10-32	3/8"-16	Heavy Wall	15/32"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE53	€16.62	10
M	319-332-PK10	#10-32	5/16"-18	Thin Wall	3/8"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE53	€24.26	10
N	550-1032 -PK5	#10-32	M8 x 1.25	Heavy Wall	31/64"	Class 2A	Class 2B	UNF Internal, Metric External	4ZE53	€17.71	5
O	329-16-PK5	1"-8	1 3/8"-12	Heavy Wall	1 3/8"	Class 2A	Class 2B	Coarse	-	€101.71	5
P	329-1614-PK5	1"-14	1 3/8"-12	Heavy Wall	1 3/8"	Class 2A	Class 2B	Fine	-	€122.16	5
Q	550-8-PK5	1/2"-13	M16 x 2	Heavy Wall	3/4"	Class 2A	Class 2B	-	4ZE58	€36.14	5
R	329-8-PK5	1/2"-13	3/4"-10	Heavy Wall	3/4"	Class 2A	Class 2B	Coarse	4ZE58	€24.68	5
S	335-8-PK5	1/2"-13	7/8"-9	Extra Heavy Wall	13/16"	Class 2A	Class 2B	Coarse	4ZE58	€28.27	5
T	329-801-PK5	1/2"-13	3/4"-10	Heavy Wall	1"	Class 2A	Class 2B	Coarse	4ZE58	€29.70	5
U	329-820-PK5	1/2"-20	3/4"-10	Heavy Wall	3/4"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE58	€22.28	5
V	319-820-PK5	1/2"-20	5/8"-11	Thin Wall	11/16"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE58	€23.92	5
W	329-4	1/4"-20	7/16"-14	Heavy Wall	1/2"	Class 2A	Class 2B	Coarse	4ZE54	€24.59	10
X	335-4	1/4"-20	1/2"-13	Extra Heavy Wall	9/16"	Class 2A	Class 2B	Coarse	4ZE54	€28.27	10
Y	550-1420 -PK5	1/4"-20	M10 x 1.5	Heavy Wall	37/64"	Class 2A	Class 2B	UNC Internal, Metric External	4ZE54	€19.17	5

E-Z LOK -

Grade 303 Stainless Steel Self Locking Inserts

Style	Model	Internal Thread Size	External Thread Size	Min. Full Thread Depth	External Class	Internal Class	Thread Type	Power Driver	Wall Type	Price	Pkg. Qty.
A	453-4-PK5	-	M8 x 1.25	23/64"	Class 6G	Class 6H	-	4ZE52	Heavy Wall	€28.27	5
B	653-14-PK5	-	7/8"-9	13/16"	Class 2A	Class 6H	-	-	Heavy Wall	€94.35	5
C	303-004-PK10	#4-40	#10-32	9/32"	Class 2A	Class 2B	Coarse	-	Heavy Wall	€50.10	10
D	303-006-PK5	#6-32	1/4"-20	11/32"	Class 2A	Class 2B	Coarse	4ZE51	Heavy Wall	€28.27	5
E	303-008-PK5	#8-32	5/16"-18	7/16"	Class 2A	Class 2B	Coarse	4ZE52	Heavy Wall	€31.42	5
F	303-3-PK5	#10-24	3/8"-16	15/32"	Class 2A	Class 2B	Coarse	4ZE53	Heavy Wall	€37.22	5
G	303-332-PK5	#10-32	3/8"-16	15/32"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE53	Heavy Wall	€37.28	5
H	303-8-PK5	1/2"-13	3/4"-10	3/4"	Class 2A	Class 2B	Coarse	4ZE58	Heavy Wall	€67.56	5
I	303-820-PK5	1/2"-20	3/4"-10	3/4"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE58	Heavy Wall	€67.73	5
J	303-4-PK5	1/4"-20	7/16"-14	1/2"	Class 2A	Class 2B	Coarse	4ZE54	Heavy Wall	€34.55	5
K	303-428-PK5	1/4"-28	7/16"-14	1/2"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE54	Heavy Wall	€37.71	5
L	303-12-PK5	3/4"-10	1"-8	7/8"	Class 2A	Class 2B	Coarse	4ZE60	Heavy Wall	€150.27	5
M	303-6-PK5	3/8"-16	9/16"-12	19/32"	Class 2A	Class 2B	Coarse	4ZE56	Heavy Wall	€37.52	5
N	303-624-PK5	3/8"-24	9/16"-12	19/32"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE56	Heavy Wall	€46.04	5
O	303-10-PK5	5/8"-11	7/8"-9	13/16"	Class 2A	Class 2B	Coarse Internal/Coarse External	4ZE59	Heavy Wall	€75.82	5
P	303-5-PK5	5/16"-18	1/2"-13	9/16"	Class 2A	Class 2B	Coarse	4ZE55	Heavy Wall	€36.46	5
Q	303-524-PK5	5/16"-24	1/2"-13	9/16"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE55	Heavy Wall	€42.26	5
R	303-7-PK5	7/16"-14	5/8"-11	23/32"	Class 2A	Class 2B	Coarse	4ZE57	Heavy Wall	€47.21	5
S	303-720-PK5	7/16"-20	5/8"-11	23/32"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE57	Heavy Wall	€50.26	5
T	453-3-PK5	M3 x 0.5	M6 x 1	5/16"	Class 6G	Class 6H	Metric	-	Heavy Wall	€24.10	5
U	453-5-PK5	M5 x 0.8	M8 x 1.25	23/64"	Class 6G	Class 6H	Metric	4ZE52	Heavy Wall	€34.13	5
V	453-6-PK5	M6 x 1	M10 x 1.5	31/64"	Class 6G	Class 6H	Metric	4ZE54	Heavy Wall	€28.09	5
W	653-6-PK5	M6 x 1	3/8"-16	15/32"	Class 2A	Class 6H	Metric Internal, UNC External	4ZE54	Heavy Wall	€35.45	5
X	453-8-PK5	M8 x 1.25	M12 x 1.75	37/64"	Class 6G	Class 6H	Metric Internal/Metric External	4ZE55	Heavy Wall	€36.74	5
Y	653-8-PK5	M8 x 1.25	1/2"-13	9/16"	Class 2A	Class 6H	Metric Internal, UNC External	4ZE55	Heavy Wall	€38.54	5

DEWALT -

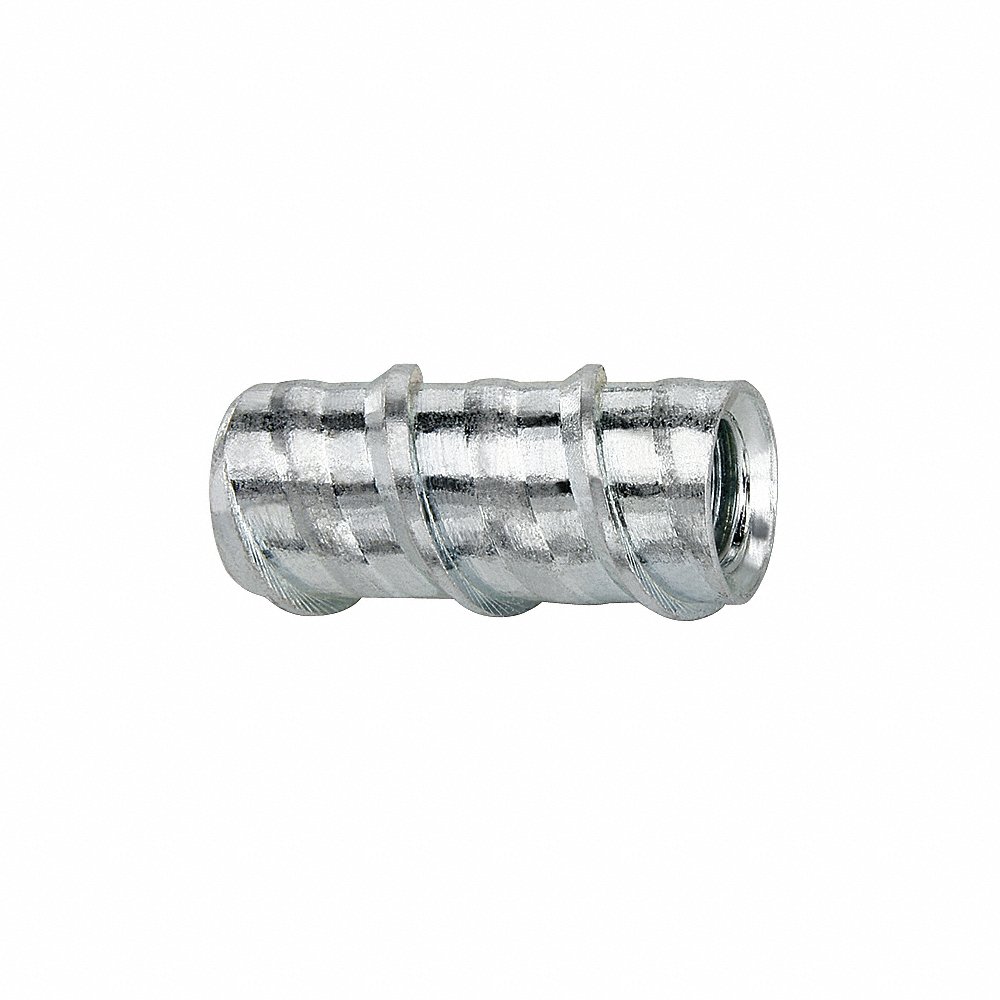

Screw Anchor, 1/4 In - 20 Int. Thread Size, 11/16 In Lg., Carbon Steel, 1/4 In Size

Model	Item	Price (ex. VAT)	Pkg. Qty.
6400SD-PWR	AD6PEH	€257.73
100

DEWALT -

Screw Anchor, 3/8 In - 16 Int. Thread Size, 11/16 In Lg., Carbon Steel, 3/8 In Size

Model	Item	Price (ex. VAT)	Pkg. Qty.
6401SD-PWR	AD6PEJ	€111.35
50

DEWALT -

Screw Anchor, 1/2 In - 13 Int. Thread Size, 29/32 In Lg., Carbon Steel, 1/2 In Size

Model	Item	Price (ex. VAT)	Pkg. Qty.
6403SD-PWR	AD6PEK	€412.90
50

DEWALT -

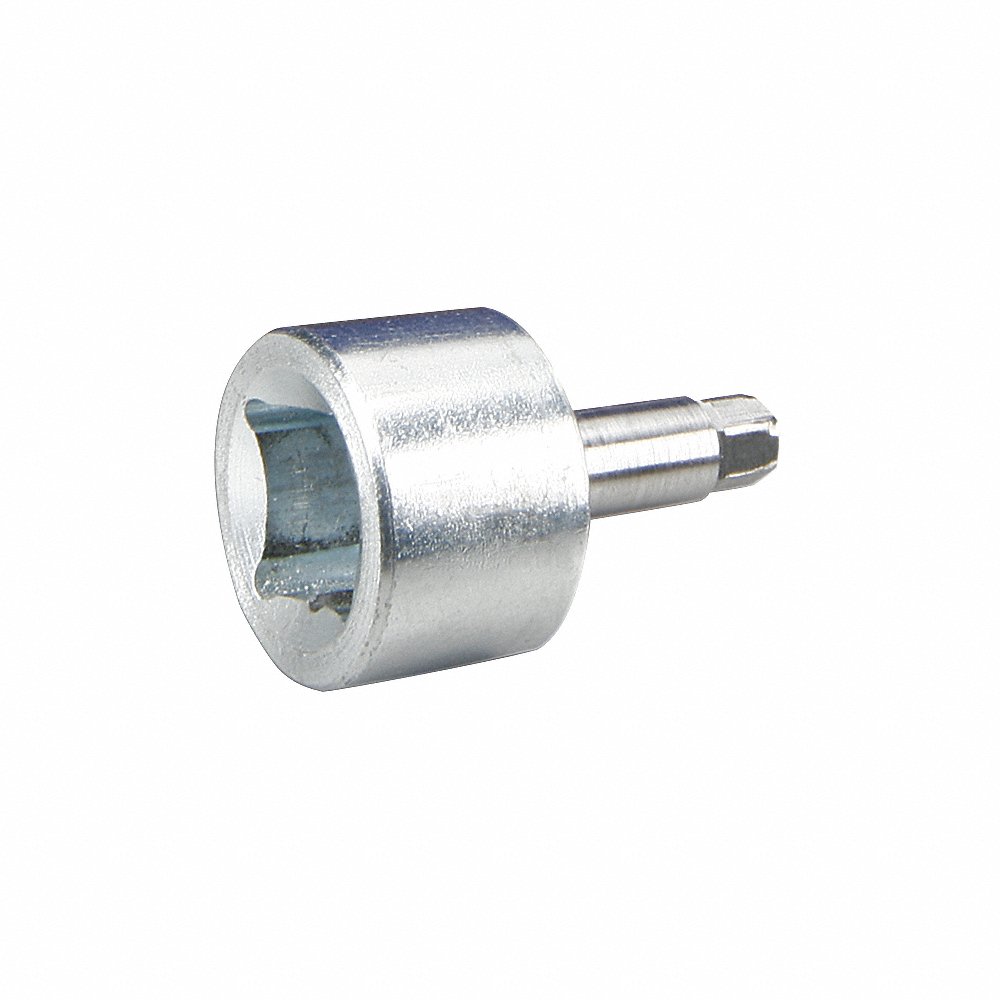

Setting Tool, Carbon Steel, 1/4 In Size, Zn Plated

Model	Item	Price (ex. VAT)	Pkg. Qty.
6402SD-PWR	AD6PEL	€26.99
1

DEWALT -

Setting Tool, Carbon Steel, 3/8 In Size, Zn Plated

Model	Item	Price (ex. VAT)	Pkg. Qty.
6407SD-PWR	AD6PEM	€24.98
1

DEWALT -

Setting Tool, 1/2 In - 13 Internal Thread Size, Carbon Steel, 1/2 In Size, Zn Plated

Model	Item	Price (ex. VAT)	Pkg. Qty.
6404SD-PWR	AD6PEN	€42.02
1

RIDGID -

Hoselock, Adaptor

Model	Item	Price (ex. VAT)	Pkg. Qty.
83732	BL9LYF	€9.25	1	RFQ
