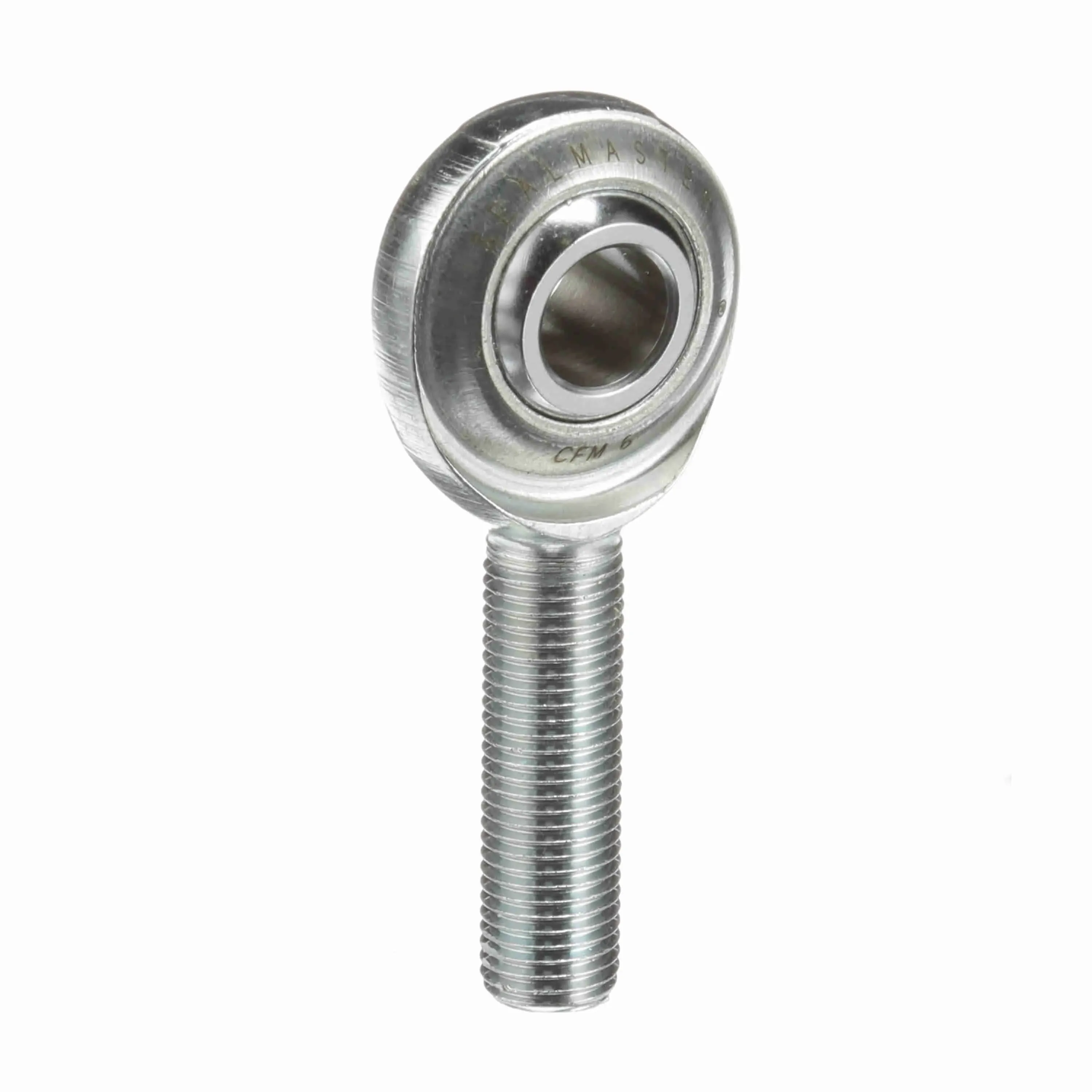

SEALMASTER CFM 6 1480600000 Rod End Bearing, 3/8 Inch Bore, 13/32 Inch Housing Width, Male, Right Hand
Get it by Tuesday, Aug 25
€13.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | No |
| Axial Load | 500 |
| Ball Dia. | 0.718" |
| Ball Finish | Chrome Plated |
| Ball Flat Dia. | 0.517" |
| Ball Material | Alloy, Steel |
| Ball Width | 1/2" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 3/8" |
| Class | Commercial |
| Configuration | Male |
| Construction | Two Piece Rod End |
| Head Dia. | 1" |
| Housing Style | Male Rod End |
| Housing Width | 0.406" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1.94" |
| Lubrication | No Zerk Fitting |
| Lubrication Method | No Fitting |
| Lubrication Type | Grease |
| Max. Ambient Temp. | 350°F |
| Max. Static Radial Load | 5000 |
| Misalignment Angle | -6° to +6° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | Cfm |
| Series | Commercial Series |
| Thread Direction | RH |
| Thread Length | 1.219" |
| Thread Size | 3/8"-24 |
| Thread Type | UNF |
| Type | Male Rod End |
| Zerk Fitting Sw | No |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.2 |
| Ship width (cm) | 1.27 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Dia. | Shank Thread Size | Grade | Static Radial Load Capacity | Head Width | Type | Race Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CFML 6YN | 3/8" | - | #3/8-24 | Grade Commercial | 5000 lbf. | 0.406 | - | - | €33.64 | |
 |
CFM 8Y | 1/2" | 0.937" | - | - | - | - | Male Rod End | - | €33.13 | |
|
CFML 16N | 1" | - | - | - | - | - | - | - | €970.87 | |
 |
CFM 10Y | 5/8" | - | - | - | - | - | - | - | €290.79 | |
|
CFM 5TY | 5/16" | - | - | - | - | - | - | Teflon | €52.07 | |
 |
CFML 7N | 7/16" | 0.812" | - | - | - | - | Male Rod End | - | €27.17 | |
 |
CFM 12T | 3/4" | 1.312" | - | - | - | - | Male Rod End | Teflon | €193.75 |
