Screw Pitch Gauges

Filter

MITUTOYO -

Screw Pitch Gages

MITUTOYO 188-111A
MITUTOYO 188-153B
MITUTOYO 188-121C
MITUTOYO 188-122D
MITUTOYO 188-151E
MITUTOYO 188-152F
StyleModelTypeMax. Thread PitchMin. Thread PitchNo. Of LeavesMax. TpiThread AngleGauge MaterialLocking DevicePrice
A188-111American National, Unified, V--304260°SteelYes€56.18
B188-153Metric2.5 mm0.25 mm28-60°SteelYes€48.35
C188-121Metric--18-60°SteelYes€38.02
D188-122Metric7 mm0.4 mm21-60°SteelYes€60.91
E188-151Unified And Metric7 mm0.4 mm51-60°SteelYes€91.40
F188-152Unified And Metric6 mm0.05 mm285660°SteelYes€46.89
STARRETT -

155/156M/159M Series Screw Pitch Gages

STARRETT 156MA
STARRETT 155B
STARRETT 159MC
StyleModelTypeMax. Thread PitchMin. Thread PitchNo. Of LeavesIncluded Thread Pitch-mmThread AngleGauge MaterialLocking DevicePrice
A156MAmerican National, Unified, V2.5 mm0.25 mm280.25 mm to 2.5 mm60°SteelYes€127.54
B155American National, Unified, V--27-60°SteelYes€181.11
C159MMetric11.5 mm0.5 mm220.5 mm to 11.5 mm60°SteelYes€158.64
STARRETT -

Screw Pitch Gages

STARRETT 474A
STARRETT 484B
STARRETT 6C
STARRETT 473D
STARRETT 476E
STARRETT 472F
StyleModelNo. Of LeavesLocking DeviceIncluded Threads Per InchMax. TpiMin. TpiLeaves (tpi)Range (tpi)TypePrice
A47428Yes4 to 80804--American National, Unified, V€121.78
B48428Yes3 1/2 to 36363.5--American National, Unified, V€112.37
C630Yes4-42424--American National, Unified, V€108.94
D47330No---6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42, 48, 50, 56, 606 to 60-€131.68
E47630No---3 1/2, 4, 4 1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 44, 48, 50, 603.5 to 60-€81.18
F47251Thumb Screw-----American National, Unified, V€221.43
VERMONT AMERICAN -

Screw Pitch Gauge Metric

Screw Pitch Gauge Metric
ModelItemPrice (ex. VAT)
21938AC2XQF-
RFQ
STARRETT -

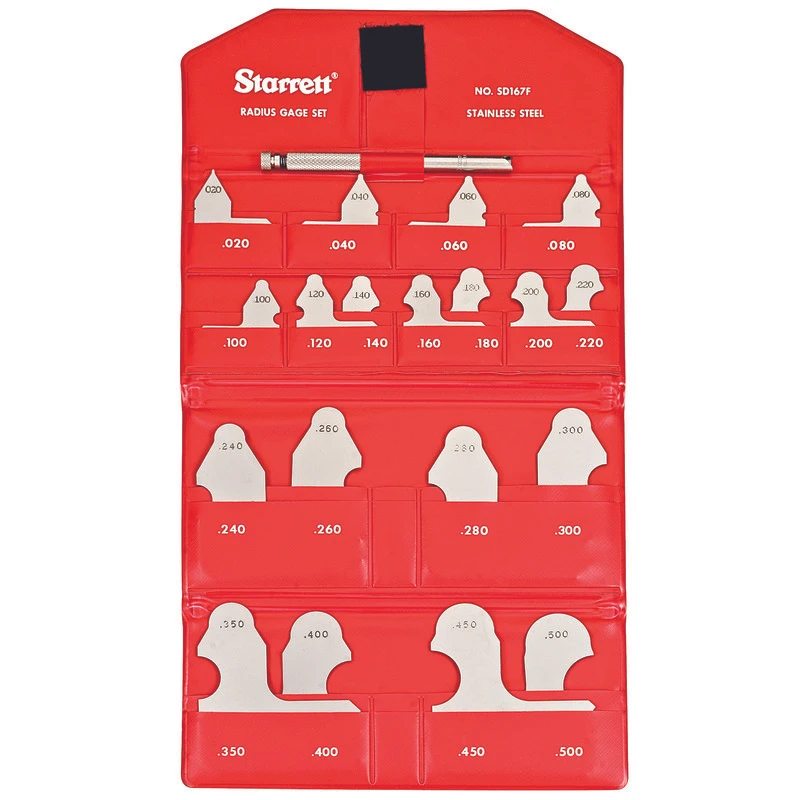

Radius Gage Set Decimal-Inch

Radius Gage Set Decimal-Inch
ModelItemPrice (ex. VAT)
SD167FHZDZ8NPN-
RFQ

Screw Pitch Gauges

Screw pitch gauges are designed for measuring the pitch / lead of screw threads for machining, manufacturing & woodworking applications. Raptor Supplies offers a wide array of Mitutoyo, Starrett & Vermont American screw pitch gauges with steel leaves & folding design for durability & protection against damage from accidental drops, respectively. Selected models feature a locking mechanism for secure storage.
