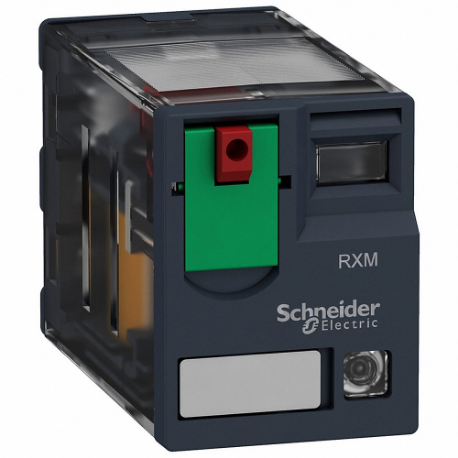

SCHNEIDER ELECTRIC RXM2AB2E7 Relay, Socket Mounted, 12 A Current Rating, 48V AC, 8 Pins/Terminals, Dpdt
Item: CP4LZZModel: RXM2AB2E7Cross Ref: 55WL70
7 In Stock
48V AC
12A @ 250V
12A @ 28V
Ships within 2 days via
10.00% off
€15.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Ac Contact Rating | 12A @ 250V |
| Coil Voltage | 48V AC |
| Contact Form | DPDT |
| Current Rating | 12A |
| Dc Contact Rating | 12A @ 28V |
| Dielectric Strength | 1300V AC Between Contacts With Micro Disconnection, 2000V AC Between Coil And Contact With Basic Insulation, 2000V AC Between Poles With Basic Insulation |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | Harmony Rxm Series |
| Number Of Pins/terminals | 8 |
| Product Datasheet | schneider-electric-rxm2ab2e7.pdf |
| Push-to-test Button | Lockable Push Test Button |
| Relay Mounting Style | Socket |
| Sealing | Enclosed |
| Socket Code | K |
| Status Indicator | LED Indicatormechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 3.99 |
| Ship width (cm) | 2.08 |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Number Of Pins/terminals | Electrical Connection Type | Coil Voltage | Current Rating | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 24V AC | 30A | - | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | - | €31.48 | |
| RPF2AP7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 230V AC | 30A | - | €31.48 | |
| RPF2BJD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 12V DC | 30A | - | €33.73 | |
| RPF2BBD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V DC | 30A | - | €33.73 | |
| RPF2BB7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V AC | 30A | - | €33.73 | |
| RPF2BF7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 120V AC | 30A | - | €33.73 |
