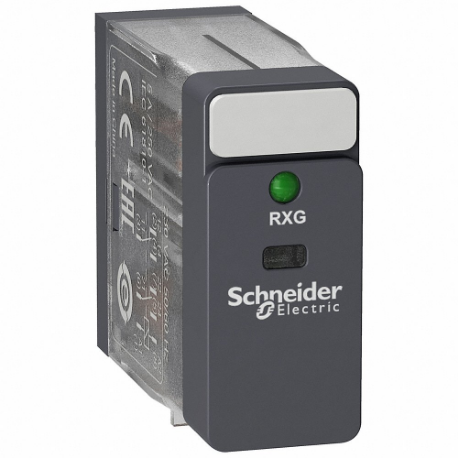

SCHNEIDER ELECTRIC RXG23F7 Plug-In Relay, Socket Mounted, 5 A Current Rating, 120VAC, 8 Pins/Terminals, DPDT
Item: CU2CPLModel: RXG23F7Cross Ref: 69ZP04
7 In Stock
120V AC
5A @ 250V
5A @ 30V
Ships within 2 days via
13.00% off
€15.35 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug-In Relay |
| Ac Contact Rating | 5A @ 250V |
| Amps | 5A |
| Base Shape | Square |
| Base Type-plug In Relay | Square |
| Body Depth | 1 9/25" , 1.14" |
| Body Height | 1 2/5" , 1.14" |
| Body Width | 0.51" |
| Coil Resistance | 6300 ohms |
| Coil Voltage | 120V AC |
| Contact Form | DPDT |
| Cover Color | Standard |
| Dc Contact Rating | 5A @ 30V |
| Device Presentation | Complete Product |
| Dielectric Strength | 1000V AC Between Contacts With Micro Disconnection, 3000V AC Between Poles With Basic Insulation, 5000V AC Between Coil And Contact With Reinforced Insulation |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Enclosed |
| Features | Insulation Class F |
| Flat Pin Width | 0.09" |
| For Use With | Hard-Wired Logic Automated Systems |
| Insulation Resistance | 1000 M ohms |
| Max. Switching Capacity | 1250 VA |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | HARMONY RXG Series |
| Min. Switching Amps | 10 mA |
| No. Of Pins | 8 |
| No. Of Pins-relay | 8 |
| No. Of Pins/terminals | 8 |
| Operating Time | 20 ms |
| Overall Depth | 1.59" |
| Pin Shape | Flat |
| Power Consumption | 0.82 VA |
| Power Consumption-relay | 0.82 VA |
| Product Datasheet | schneider-electric-rxg23f7.pdf |
| Push-to-test Button | No Test Button |
| Push-to-test Method | No Button |
| Relative Humidity | 10% to 85% |
| Relay Mounting | Plug In |
| Relay Mounting Style | Socket |
| Reset Time | 20 ms |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Response Time | 20 ms |
| Sealing | Enclosed |
| Socket Code | K |
| Status Indicator | LED Indicatormechanical Flag |
| Status Led | With |
| Test Levels | Level A Group Mounting |
