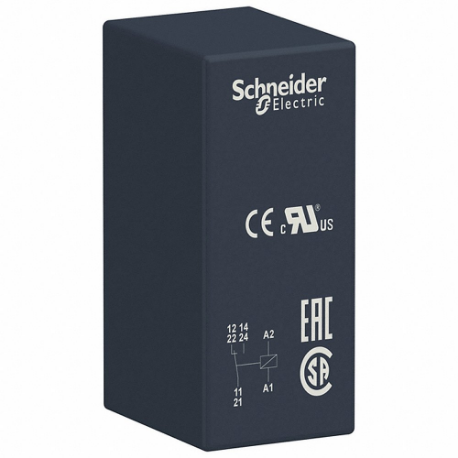

SCHNEIDER ELECTRIC RSB1A160U7 Relay, Socket Mounted, 16 A Current Rating, 240V AC, 8 Pins/Terminals, Spdt
240V AC
16A @ 250V
16A @ 28V
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Relay |
| Ac Contact Rating | 16A @ 250V |
| Amps | 16A |
| Contact Form | SPDT |
| Dc Contact Rating | 16A @ 28V |
| Dielectric Strength | 1000V AC Between Contacts, 2500V AC Between Poles, 5000V AC Between Coil And Contacts |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | Harmony RSB Series |
| No. Of Pins/terminals | 8 |
| Product Datasheet | schneider-electric-rsb1a160u7.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Sealing | Enclosed |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.9 |
| Ship length (cm) | 1.57 |
| Ship width (cm) | 1.24 |
| Country of Origin | AT |
Documentation:
Product Variants
| Model | Relay Mounting Style | Coil Voltage | Type | Frequency | Contact Form | Push-to-test Button | No. Of Pins/terminals | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2AF7 | - | 120V AC | - | 50/60 Hz | - | - | - | - | €23.38 | |
| RPF2AP7 | DIN Rail, Surface | 230V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2BJD | DIN Rail, Surface | 12V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BBD | DIN Rail, Surface | 24V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BF7 | DIN Rail, Surface | 120V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 |
