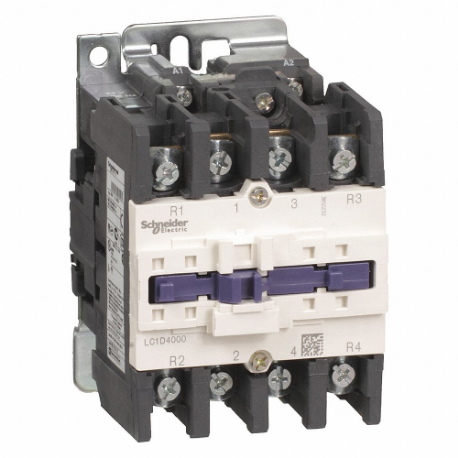

SCHNEIDER ELECTRIC LC1D40008F7 Iec Magnetic Contactor, 110 VAC Coil Volts, 40 A
Item: CU2BMRModel: LC1D40008F7Cross Ref: 48N884
In Stock : 4 Units Get it by Friday, Feb 20
5.00% off
€558.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | IEC Magnetic Contactor |
| Application | Resistive Load |
| Aux. Contact Configuration | 2NO/2NC |
| Coil Volts | 110V AC |
| Contactor Style | IEC |
| Depth | 4 23/25" |
| Electrical Operating Durability | 1400000 |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Features | Without Built-In Suppressor Module |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 40A |
| Full Load Amps-resistive | 40A |
| Full Load Current - Resistive | 40A |
| Height | 5" |
| Impulse Withstand Voltage | 6 kV |
| Includes Protective Cover | No |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 2NO/2NC |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 6000000 |
| Minimum Operating Temperature | -40°F |
| Mounts On | Plate, Rail |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Number Of Normally Closed Main Contacts | 2 |
| Number Of Normally Open Main Contacts | 2 |
| Number Of Poles | 4 |
| Overall Depth | 4.92" |
| Overall Height | 5" |
| Overall Width | 3.35" |
| Product Datasheet | schneider-electric-lc1d40008f7.pdf |
| Resistance Properties | Fire Resistant |
| Reversible | No |
| Reversing Capability | Non-reversing |
| Series | Tesys Deca |
| Terminal Connection Type | Screw Clamp Terminals |
| Width | 3.35" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 8.51 |
| Country of Origin | CZ |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Wire Termination Type | Integrated Surge Suppression | Coil Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LC1D093BD | 3 | - | - | - | - | - | - | 24V | €239.09 | |
 |
LC1D09BL | 3 | Non-reversing | 3NO | 1NO/1NC | 24V DC | Screw Clamp | Yes | 24V | €248.55 | |
 |
LC1D09E7 | 3 | - | - | - | - | - | - | 48V | €225.10 | |
 |
LC1D18E7 | 3 | - | - | - | - | - | - | 48V | €341.66 | |
|
LC1D18F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €126.17 | |
 |
LC1D258F7 | 4 | Non-reversing | 2NO/2NC | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €315.79 | |
 |
LC1D25F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €342.57 |
