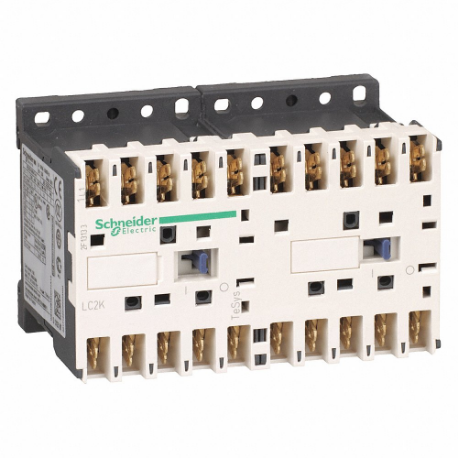

SCHNEIDER ELECTRIC LC2K09107B7 Iec Magnetic Contactor
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€310.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | IEC Magnetic Contactor |
| Action Type | Reversing |
| Application | Motor Control, Resistive Load |
| Auxiliary Contacts Included | 1NO |
| Coil Volts | 24V AC |
| Contactor Style | IEC |
| Depth | 2 6/25" |
| Device Application | Control |
| Electrical Operating Durability | 1300000, 180000 |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Features | Preassembled With Reversing Power Busbar |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 9A |
| Full Load Amps-resistive | 20A |
| Full Load Current - Resistive | 20A |
| Heat Dissipation | 1.3 W |
| Height | 2 7/25" |
| Hold Va | 4.5 VA |
| Impulse Withstand Voltage | 8 kV |
| Includes Auxiliary Contacts | Yes |
| Inrush Va | 30 VA |
| Integrated Surge Suppression | No |
| Interlocking Type | Mechanical |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 122°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 5000000 |
| Minimum Operating Temperature | -13°F |
| Mounts On | Plate, Rail |
| Nominal Coil Voltage @ 60hz | 24V AC |
| Number Of Auxillary Contacts | 1 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Overall Depth | 2.24" |
| Overall Height | 2 7/25" |
| Overall Width | 3.54" |
| Product Datasheet | schneider-electric-lc2k09107b7.pdf |
| Product Or Component Type | Reversing Contactor |
| Rated Making Capacity | 110A |
| Resistance Properties | Insulation Resistant |
| Reversible | Yes |
| Reversing Capability | Reversing |
| Series | TESYS K Series |
| Watts Loss | 1.3 W |
| Width | 3.54" |
| Wire Termination Type | Quick Disconnect |
| Working Height | 6561.68 ft. |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 5.79 |
| Ship length (cm) | 5.69 |
| Ship width (cm) | 8.99 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Wire Termination Type | Integrated Surge Suppression | Coil Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LC1D093BD | 3 | - | - | - | - | - | - | 24V | €239.09 | |
 |
LC1D09BL | 3 | Non-reversing | 3NO | 1NO/1NC | 24V DC | Screw Clamp | Yes | 24V | €248.55 | |
 |
LC1D09E7 | 3 | - | - | - | - | - | - | 48V | €225.10 | |
 |
LC1D18E7 | 3 | - | - | - | - | - | - | 48V | €341.66 | |
|
LC1D18F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €126.17 | |
 |
LC1D258F7 | 4 | Non-reversing | 2NO/2NC | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €315.79 | |
 |
LC1D25F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €342.57 |
