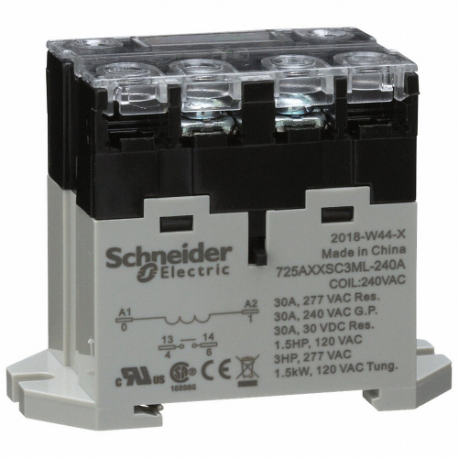

SCHNEIDER ELECTRIC 725AXXSC3ML-240A Enclosed Power Relay, Din-Rail & Surface Mounted, 30 A Current Rating, 240VAC, Spst-No
Item: CU2BDTModel: 725AXXSC3ML-240ACross Ref: 6CVG6
7 In Stock
240V AC
30A @ 240/277V
30A @ 28/30V
Ships within 2 days via
13.00% off
€27.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Enclosed Power Relay |
| Ac Contact Rating | 30A @ 240/277V |
| Amps | 30A |
| Average Coil Consumption | 2.5 VA |
| Body Depth | 1 2/5" , 1.3" |
| Body Height | 1.3" , 2.09" |
| Body Width | 2.67" |
| Coil Resistance | 21000 ohms |
| Coil Voltage | 240V AC |
| Contact Form | SPST, NO |
| Contacts Material | Silver Alloy Contacts |
| Control Circuit Voltage | 240V |
| Dc Contact Rating | 30A @ 28/30V |
| Dielectric Strength | 4000V AC Between Coil And Contact |
| Electrical Connection | Screw |
| Electrical Connection Type | Screw |
| Electrical Connection-power Relay | Screw |
| Electrical Operating Durability | 100000 |
| Hp @ 120v | 1 1/2 hp |
| Hp @ 240v | 3 hp |
| Mechanical Operating Durability | 5000000 |
| Mfr. Series | Harmony 725 Power Series |
| Min. Switching Amps | 100 mA |
| Motor Rating | Yes |
| No. Of Pins | 4 |
| No. Of Pins-relay | 4 |
| No. Of Pins/terminals | 4 |
| No. Of Poles | 1 |
| Overall Depth | 2 3/25" |
| Overall Height | 2.09" |
| Power Consumption | 2.5 VA |
| Power Consumption-relay | 2.5 VA |
| Product Datasheet | schneider-electric-725axxsc3ml-240a.pdf |
| Product Range | Harmony Electromechanical Relays |
| Push-to-test Button | Manual Push Test Button |
| Push-to-test Method | Test Button |
| Relay Mounting Style | DIN Rail, Surface |
| Response Time | 30 ms |
| Status Indicator | LED Indicator |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 6.78 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Relay Mounting Style | Coil Voltage | Type | Frequency | Contact Form | Push-to-test Button | No. Of Pins/terminals | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2AF7 | - | 120V AC | - | 50/60 Hz | - | - | - | - | €23.38 | |
| RPF2AP7 | DIN Rail, Surface | 230V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2BJD | DIN Rail, Surface | 12V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BBD | DIN Rail, Surface | 24V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BF7 | DIN Rail, Surface | 120V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 |
