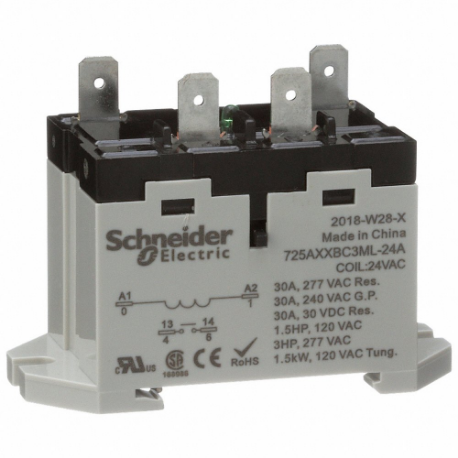

SCHNEIDER ELECTRIC 725AXXBC3ML-24A Enclosed Power Relay, Din-Rail & Surface Mounted, 30 A Current Rating, 24VAC, Spst-No
24V AC
30A @ 240/277V
30A @ 28/30V
Get it by Wednesday, Jul 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosed Power Relay |
| Ac Contact Rating | 30A @ 240/277V |
| Amps | 30A |
| Average Coil Consumption | 2.5 VA |
| Body Depth | 1.3" , 1.39" |
| Body Height | 1.3" , 1.94" |
| Body Width | 2.67" |
| Coil Resistance | 275 ohms |
| Coil Voltage | 24V AC |
| Contact Form | SPST, NO |
| Contacts Material | Silver Alloy Contacts |
| Control Circuit Voltage | 24V |
| Dc Contact Rating | 30A @ 28/30V |
| Dielectric Strength | 4000V AC Between Coil And Contact |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Flat Pin Width | 1/4" |
| Hp @ 120v | 1 1/2 hp |
| Hp @ 240v | 3 hp |
| Mechanical Operating Durability | 5000000 |
| Mfr. Series | Harmony 725 Power Series |
| Min. Switching Amps | 100 mA |
| Motor Rated | Yes |
| No. Of Pins | 4 |
| No. Of Pins-relay | 4 |
| No. Of Pins/terminals | 4 |
| No. Of Poles | 1 |
| Overall Depth | 1.94" |
| Overall Height | 1.94" |
| Power Consumption | 2.5 VA |
| Power Consumption-relay | 2.5 VA |
| Product Datasheet | schneider-electric-725axxbc3ml-24a.pdf |
| Product Range | Harmony Electromechanical Relays |
| Push-to-test Button | Manual Push Test Button |
| Push-to-test Method | Test Button |
| Relay Mounting Style | DIN Rail, Surface |
| Response Time | 30 ms |
| Status Indicator | LED Indicator |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 3.53 |
| Ship width (cm) | 6.78 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Electrical Connection Type | Coil Voltage | Socket Code | Electrical Operating Durability | Mechanical Operating Durability | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DPST, NO | No Test Button | DIN Rail, Surface | Tab | 24V AC | - | 100000 | 5000000 | €19.88 | |
| RPF2AF7 | - | - | - | - | 120V AC | - | - | - | €19.88 | |
| RPF2AP7 | DPST, NO | No Test Button | DIN Rail, Surface | Tab | 230V AC | - | 100000 | 5000000 | €19.88 | |
| RPF2BJD | DPDT | No Test Button | DIN Rail, Surface | Tab | 12V DC | - | 100000 | 5000000 | €19.59 | |
| RPF2BBD | DPDT | No Test Button | DIN Rail, Surface | Tab | 24V DC | - | 100000 | 5000000 | €19.59 | |
| RPF2BB7 | DPDT | No Test Button | DIN Rail, Surface | Tab | 24V AC | - | 100000 | 5000000 | €19.59 | |
| RPF2BF7 | DPDT | No Test Button | DIN Rail, Surface | Tab | 120V AC | - | 100000 | 5000000 | €19.59 |
