SANDPIPER S05B1A2TANS000. Ball Valve Pump, Metallic, Top Discharge, 0-15 Gpm, 15 Lbs.
Get it by Tuesday, Apr 7
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€2,733.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve Pump |
| Air Consumption | 20 SCFM |
| Air Consumption (maximum) | 20 SCFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 1/4" |
| Air Intake Pressure (maximum) | 125 psi |
| Ball Material | PTFE |
| Body Material | Aluminum |
| Center Section Material | Aluminum |
| Check Seat Material | PTFE |
| Check Valve Seat Material | PTFE |
| Check Valve Type | Ball |
| Chemical Compatibility | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water |
| Compatible Chemicals | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water |
| Connection Size | 1/2" |
| Connection Type | NPT |
| Design Level | 1 |
| Diaphragm Material | PTFE |
| Discharge Pipe Size (internal) | 1/2" |
| Discharge Pipe Type(internal) | BSPT, NPT |
| Displacement Per Stroke | 0.026 gal. |
| Display Qty | 1 |
| Elastomers Material | Santoprene, PTFE |
| Feet Of Head (maximum) | 289 ft. |
| Flow Rate (maximum) | 15 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 13.4 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 4.2 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 9.3 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 11.5 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 12.8 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Discharge Connection Size | 1/2" |
| Fluid Discharge Connection Type | NPT |
| Fluid Intake Connection | 1/2" |
| Fluid Intake Connection Type | NPT |
| For Use With Potable Systems | No |
| Height | 11" |
| Housing Material | Aluminum |
| Inlet Size | 1/2" , 1/4" |
| Inlet Type | NPT |
| Inlet/outlet Size | 1/2" |
| Intake Pipe Size (internal) | 1/2" |
| Intake Pipe Type(internal) | BSPT, NPT |
| Length | 10" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 1 yr. |
| Max. Dia. Solids | 1/8" |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Gpm | 15 |
| Max. Flow Rate | 0-15 GPM , 15 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 220°F |
| Max. Operating Pressure | 100 psi |
| Max. Solid Dia. | 0.13" |
| Media Discharge Connection Size | 1/2" |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 1/2" |
| Media Intake Location | Bottom, Center |
| Non-wetted Housing Material | Aluminum |
| Non-wetted Material | Aluminum |
| Operating Pressure (maximum) | 100 psi |
| Operation Type | Air Operated |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Overall Height | 11 1/2" |
| Overall Length | 7 1/5" |
| Overall Width | 10.3" |
| Porting Position Type | NPT |
| Power Source | Air |
| Priming | Self Priming |
| Product Datasheet | sandpiper-s05b1s1wans000-.pdf |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Pump Style | Standard |
| Rated Air Pressure | 125 psi |
| Self Priming | Yes |
| Self Priming Dry | 12 ft. |
| Self Priming Wet | 12 ft. |
| Self-priming Dry | 12 ft. |
| Self-priming Wet | 12 ft. |
| Series | S05 Series |
| Solid Diameter (maximum) | 0.13" |
| Solids Handling | 1/8" |
| Type | Air Powered Double Diaphragm Pump |
| Valve Material | PTFE |
| Valve Size | 15 ft. |
| Valve Type | Ball |
| Wetted Housing Material | Aluminum |
| Wetted Material | Aluminum |
| Width | 7" |
Shipping Info:
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 27.46 |
| Ship length (cm) | 26.04 |
| Ship width (cm) | 18.57 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Housing Material | Valve Material | Check Seat Material | Max. Media Temp. | Inlet Size | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

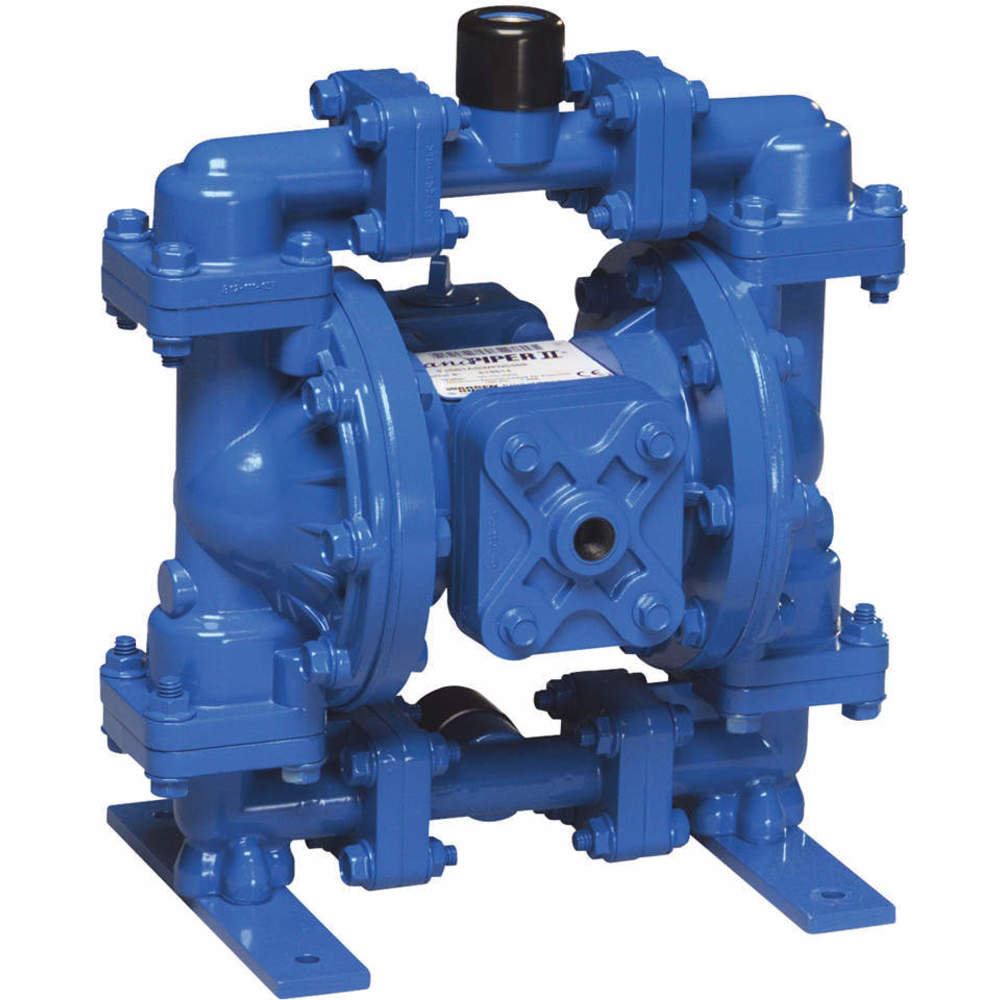

S05B1ABWANS000. | 15 GPM | Buna N | Aluminum | Buna N | Polyethylene | 180°F | 1/4" | 11 1/2" | €2,099.36 | |
 |

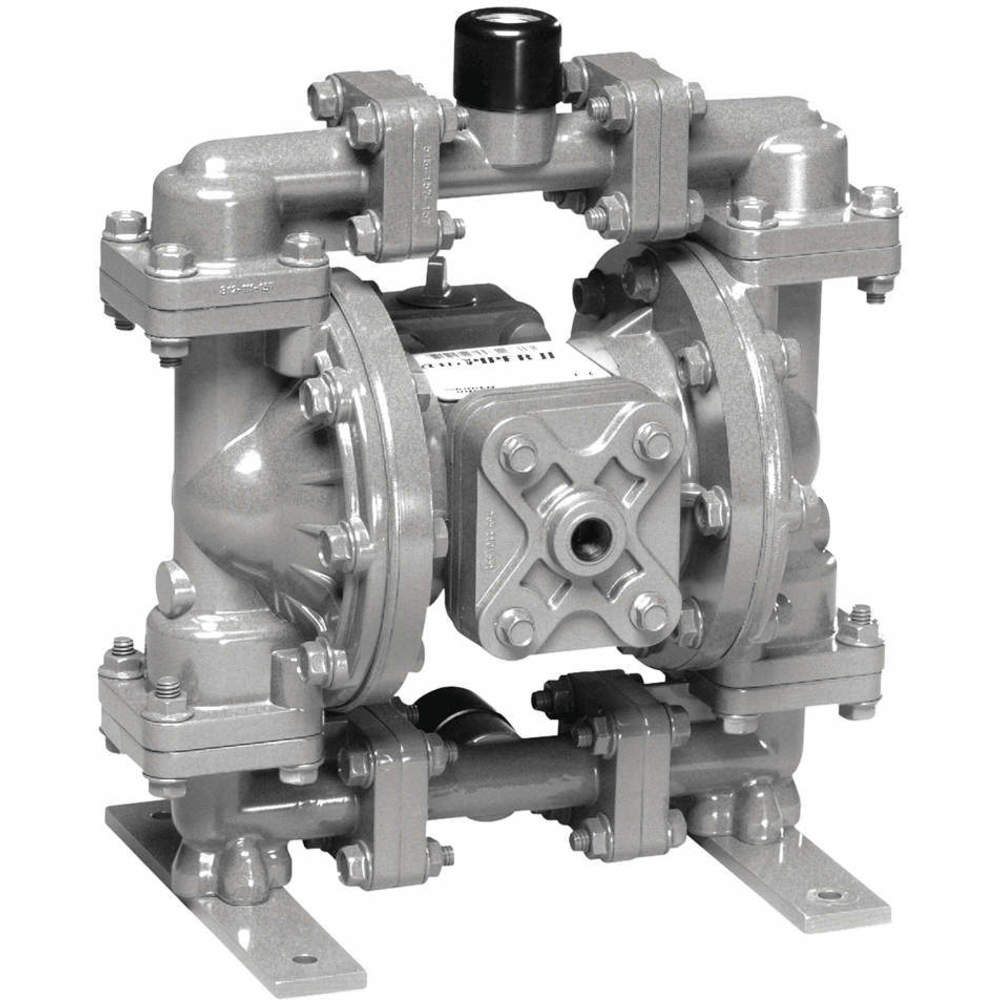

S05B1S2TANS000. | 15 GPM | PTFE | Stainless Steel | PTFE | PTFE | 220°F | 1/4" | 10 1/2" | €5,705.98 | |
 |
S05B1S1WANS000. | 15 GPM | Santoprene | Stainless Steel | Santoprene | Polyethylene | 275°F | 1/4" | 10 1/2" | €5,223.09 | |
 |
S05B1A2TABS0P0. | 15 GPM | PTFE, Santoprene | - | - | - | - | 0.5 | - | €2,573.05 | |
|
S05B1ABTANS000. | 15 GPM | Nitrile | - | - | - | - | 0.5 | - | €1,370.00 | |
|
S05B1S1TCNS000. | 15 GPM | Santoprene | - | - | - | - | 0.5 | - | €3,510.94 |
