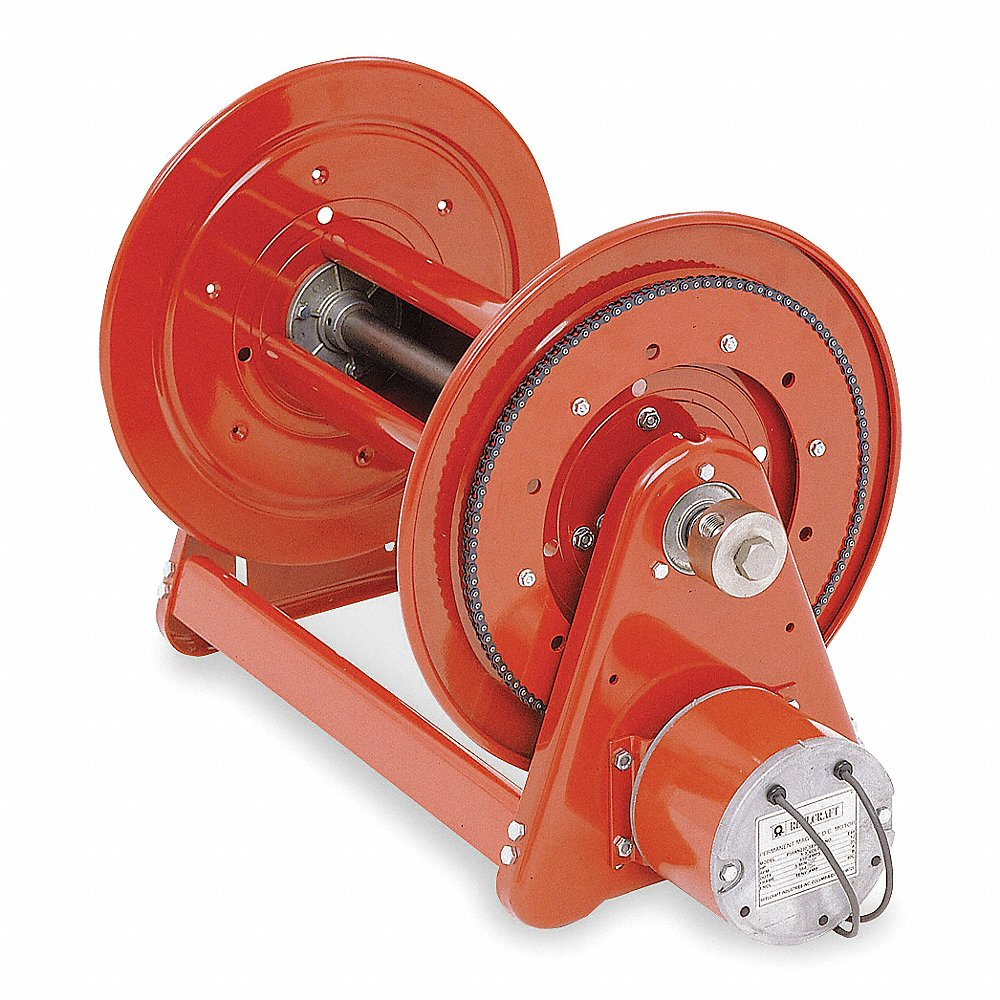

REELCRAFT EA33118 M10AX Motor Driven Hose Reel, 115 VAC, Inner Diameter 3/4 Inch, Hose Length 175 Feet
Get it by Wednesday, Jul 15
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Crank Hose Reel |
| Additional Hose Size Capacities | 1/2" x 325 ft., 1/2" x 325 ft., 3/8" x 450 ft., 3/8" x 450 ft., 3/4" x 175 ft., 3/4" x 175 ft., 1/4" x 625 ft., 1/4" x 625 ft., 1" x 100 ft., 1" x 100 ft. |
| Base Motion Type | Stationary |
| Base Mount Width | 23" |
| Bearing Construction | Permanently Lubricated |
| Drive Type | Motor Driven |
| Hose Capacity | 175 ft. |
| Hp | 2/5 hp |
| Includes Gooseneck | Yes |
| Latch Type | Locking |
| Max. Operating Pressure | 3000 psi |
| Max. Operating Temp. | 210°F |
| Min. Operating Temp. | 32°F |
| Motor Voltage | 115V AC |
| Mount Base Height | 12 5/8" |
| Mounting Hole Center To Center Height | 9" |
| No. Of Phase | 1 |
| Overall Dimensions | 17 3/4" x 29 5/8" x 20 1/4" |
| Overall Height | 20 1/4" |
| Overall Length | 17 3/4" |
| Overall Width | 29 5/8" |
| Reel Color | Red |
| Reel Dia. | 6 3/8" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 18" |
| Seal Material | TFE-P |
| Swivel Material | Iron |
| Swivel Outlet Thread Size | 3/4" to 14" |
| Swivel Size/type | 3/4" NPT |
Shipping Info:
| Ship weight (kg) | 36.45 |
| Ship height (cm) | 51.44 |
| Ship length (cm) | 75.25 |
| Ship width (cm) | 45.09 |
| Country of Origin | US |
Product Variants
| Product | Model | Drive Type | Max. Operating Pressure | Hose Capacity | Mounting | Max. Temp. | Hose Inside Dia. | Hose Length | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EA33128L12D | Motor Driven | 1000 psi | 275 ft. | Either End Of Reel | 250°F | 3/4" | 275 ft. | 17 3/4" | €1,736.52 | |
 |
CA38106M | Hand Crank | 5000 psi | 100 ft. | Either End Of Reel | 400°F | 3/8" | 140 ft. | 17 3/4" | €717.66 | |
 |
CA38112M | Hand Crank | 5000 psi | 300 ft. | Bench, Floor, Truck, Wall | 400°F | 3/8" | 300 ft. | 17 3/4" | €668.15 | |
 |
CA32112M | Hand Crank | 3000 psi | 200 ft. | Bench, Floor, Truck, Wall | 250°F | 1/2" | 200 ft. | 17 3/4" | €638.10 | |
|
EA32118M12D | Motor Driven | 3000 psi | 325 ft. | On Either End Of Reel | 250°F | 1/2" | 325 ft. | 17 3/4" | €1,542.07 | |
 |
EA32112M12D | Motor Driven | 3000 psi | 200 ft. | On Either End Of Reel | 250°F | 1/2" | 200 ft. | 17 3/4" | €1,516.80 | |
 |
BA36112 L | - | - | - | - | 210°F | 1/4" | 250 ft. | - | - | RFQ
|
