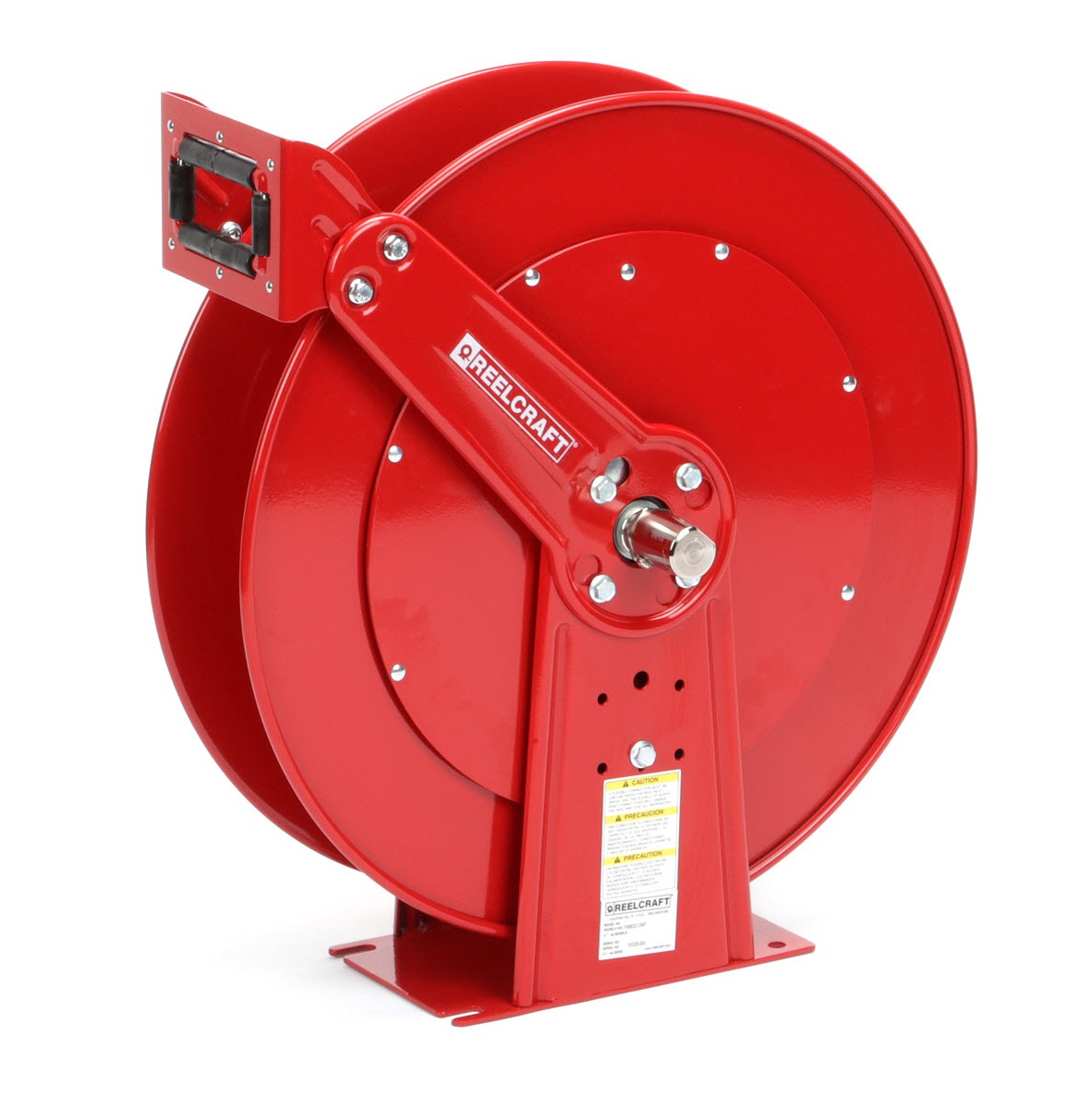

REELCRAFT TH88000 OMP Hose Reel, Inner Diameter 1/2 Inch, 3000 Psi, Hose Length 50 Feet
Get it by Wednesday, Dec 24
10.00% off
€1,482.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Ball |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | Double Sealed Special Molded O Rings Prevent Leakage, Leak Prevention Double Sealed |
| For Dual Hose | Yes |
| Height | 25 3/8" |
| Hose | No |
| Hose Capacity | 50 ft. |
| Hose I.d. | 1/2" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 0.85" |
| Hose Reel Primary Application | Hydraulic Oil |
| Hose Reel Type | Vehicle Mount Hose Reel, Wall Mount Hose Reel |
| Includes Hose | No |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Length | 24" |
| Max. Temp. | 210°F |
| Maximum Operating Pressure | 3000 psi |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 12" |
| Mount Base Width | 7 3/8" |
| Mount Hole Diameter | 1/2" |
| Mounting Hole Center To Center Height | 10" |
| Mounting Hole Center To Center Width | 6" |
| Number Of Guide Arms | 2 |
| Number Of Mount Holes | 4 |
| Overall Height | 25 3/8" |
| Overall Length | 24" |
| Overall Width | 12 7/8" |
| Pedestal Type | Dual Pedestal |
| Pressure | 3000 psi |
| Reel Color | Red |
| Reel Diameter | 24" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 12 7/8" |
| Speed Limited Retraction | No |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Steel |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | Yes |
| Width | 12 7/8" |
Shipping Info:
| Ship weight (kg) | 39.51 |
| Ship height (cm) | 64.45 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 32.7 |
| HS code | 8479899899 |
| Country of Origin | US |
