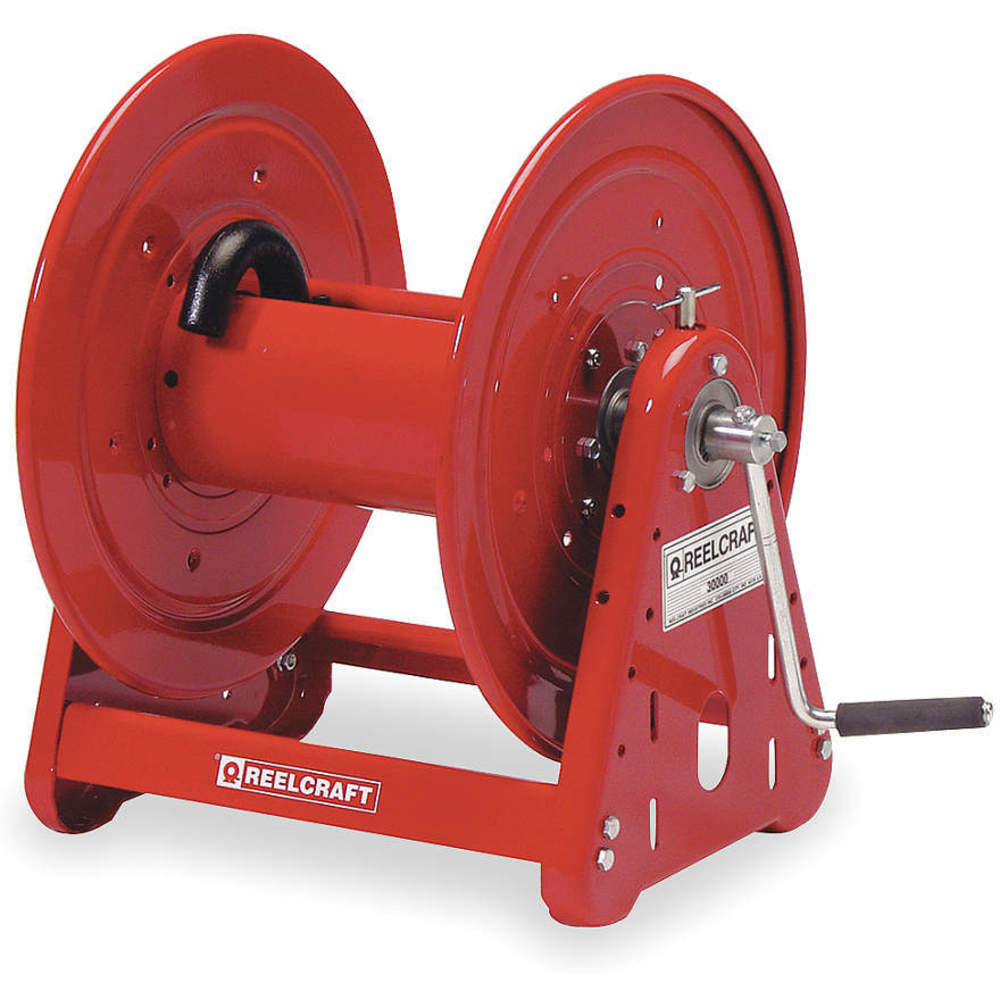

REELCRAFT CA38112M Hand Crank Hose Reel, Inner Diameter 1/2 Inch, 5000 Psi, Hose Length 200 Feet
Get it by Friday, Jul 3
5.00% off
€634.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Bearings | Permanently Lubricated |
| Drive Type | Hand Crank |
| Enclosed | No |
| Fasteners Included | No |
| Features | Heavy Duty And Bolted Construction |
| Finish | Powder Coating |
| For Dual Hose | No |
| Handle Length | 3 3/4" |
| Height | 20 1/4" |
| Hose Capacity | 300 ft. |
| Hose Inside Dia. | 3/8" |
| Hose Length | 300 ft. |
| Hose Outlet (in.) | 1/2" (F)NPT |
| Hose Reel Primary Application | Air, Diesel, Garden, Gasoline, Hydraulic Oil, Oil, Pre-Rinse, Pressure Washer, Washdown, Water |
| Hose Reel Type | Free Standing Hose Reel, Vehicle Mount Hose Reel, Wall Mount Hose Reel |
| Included | Instruction |
| Included Gooseneck | Yes |
| Included Hose | No |
| Included Leader Hose | No |
| Latch Type | Locking |
| Length | 17 3/4" |
| Max. Operating Pressure | 5000 psi |
| Max. Operating Temp. | 210°F |
| Max. Pressure Rating | 5000 psi |
| Max. Temp. | 400°F |
| Min. Operating Temp. | 32°F |
| Mount Base Height | 12 5/8" |
| Mount Base Width | 15 3/4" |
| Mount Hole Dia. | 1/2" |
| Mounting | Bench, Floor, Truck, Wall |
| Mounting Hole Center To Center Height | 9" |
| Mounting Hole Center To Center Width | 15 3/4" |
| No. Of Mount Holes | 4 |
| Not Included | Hose |
| Overall Height | 20 1/4" |
| Overall Length | 17 3/4" |
| Overall Width | 25 3/4" |
| Product Datasheet | reelcraft-ca38106m.pdf |
| Reel Color | Red |
| Reel Dia. | 6 3/8" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 12" |
| Seal Material | TFE/P |
| Seal Type | Aflas |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Type | Pressure Wash |
| Width | 25 3/4" |
Shipping Info:
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 90.17 |
| Ship width (cm) | 48.26 |
| HS code | 8479899899 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Drive Type | Max. Operating Pressure | Hose Capacity | Mounting | Max. Temp. | Hose Inside Dia. | Hose Length | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

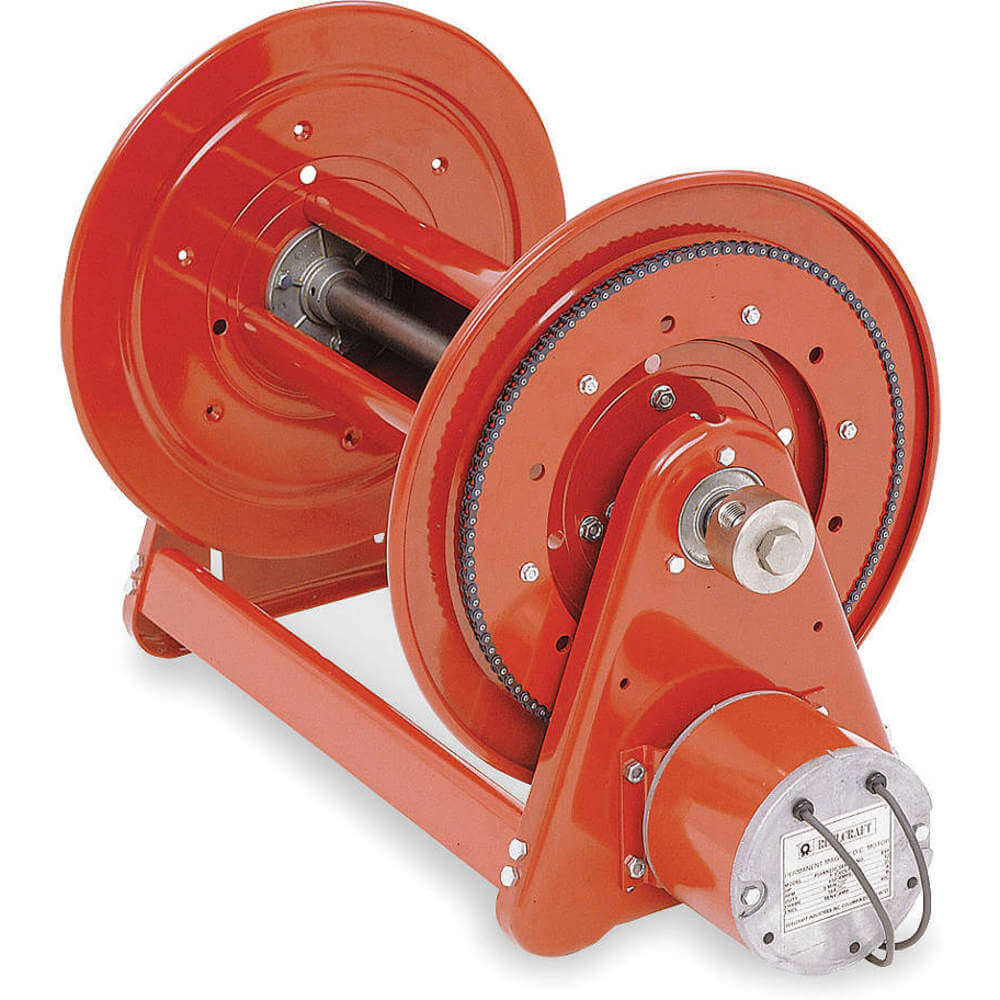

EA33128L12D | Motor Driven | 1000 psi | 275 ft. | Either End Of Reel | 250°F | 3/4" | 275 ft. | 17 3/4" | €1,736.52 | |
 |

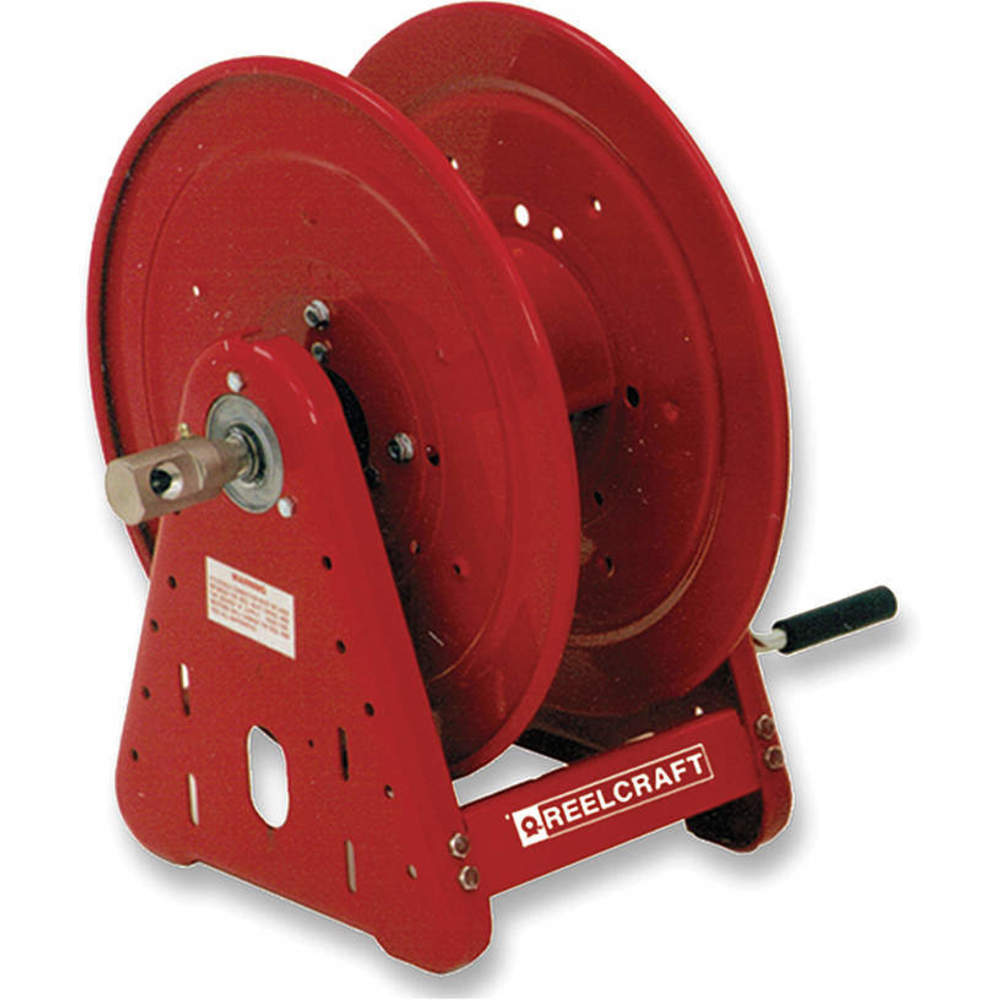

CA38106M | Hand Crank | 5000 psi | 100 ft. | Either End Of Reel | 400°F | 3/8" | 140 ft. | 17 3/4" | €717.66 | |
 |

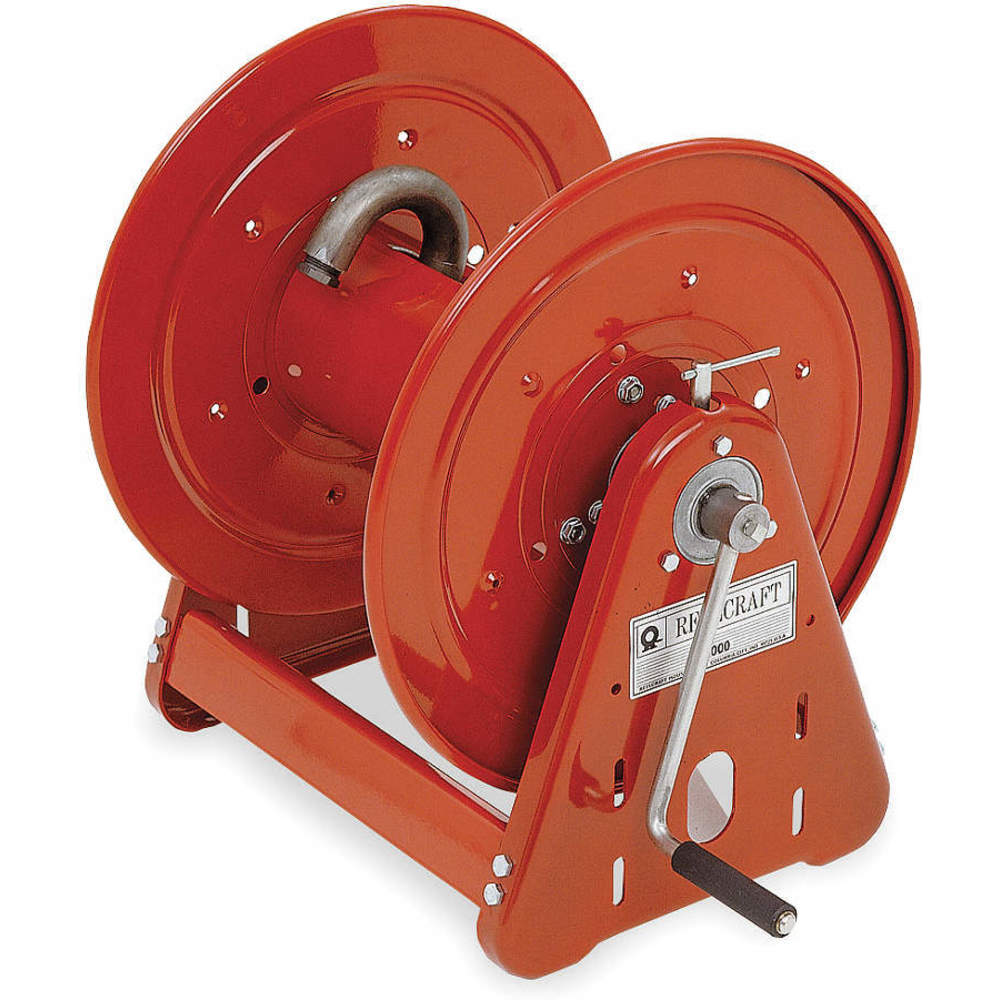

CA32112M | Hand Crank | 3000 psi | 200 ft. | Bench, Floor, Truck, Wall | 250°F | 1/2" | 200 ft. | 17 3/4" | €638.10 | |
|
EA32118M12D | Motor Driven | 3000 psi | 325 ft. | On Either End Of Reel | 250°F | 1/2" | 325 ft. | 17 3/4" | €1,542.07 | |
 |

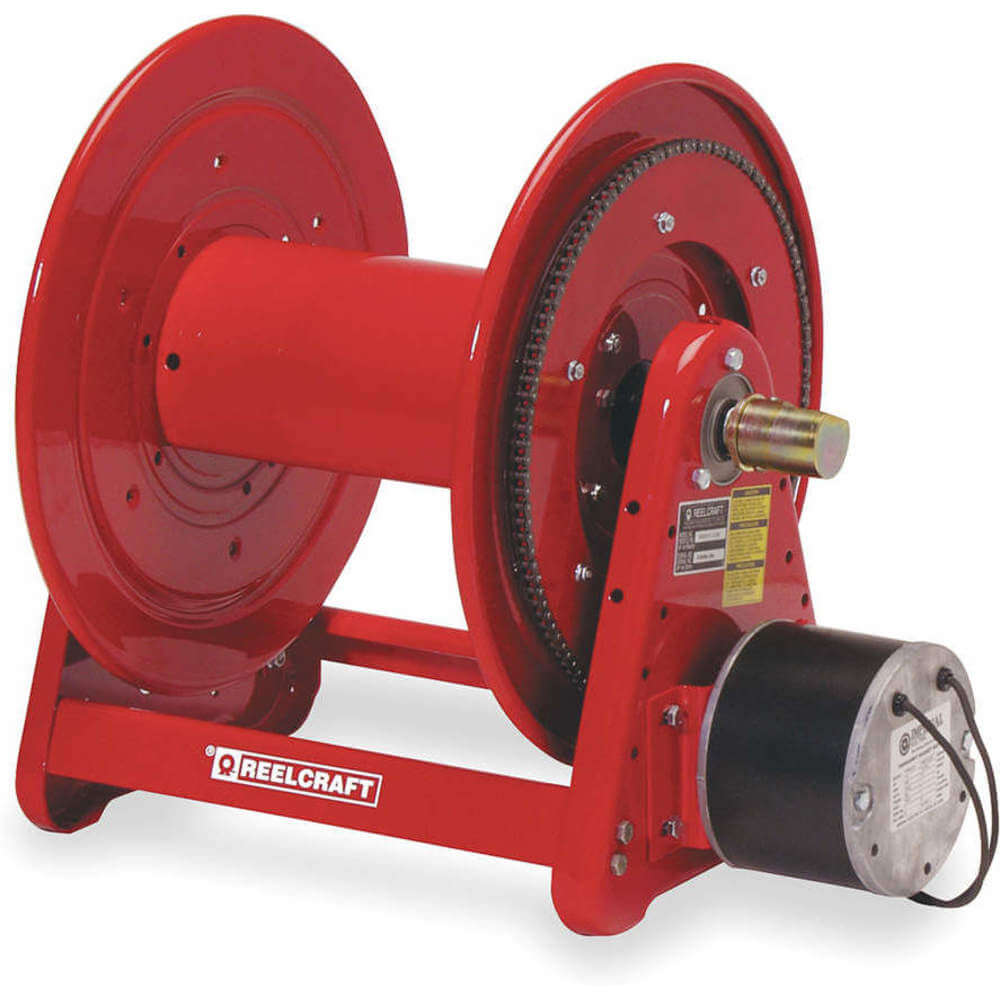

EA32112M12D | Motor Driven | 3000 psi | 200 ft. | On Either End Of Reel | 250°F | 1/2" | 200 ft. | 17 3/4" | €1,516.80 | |
 |

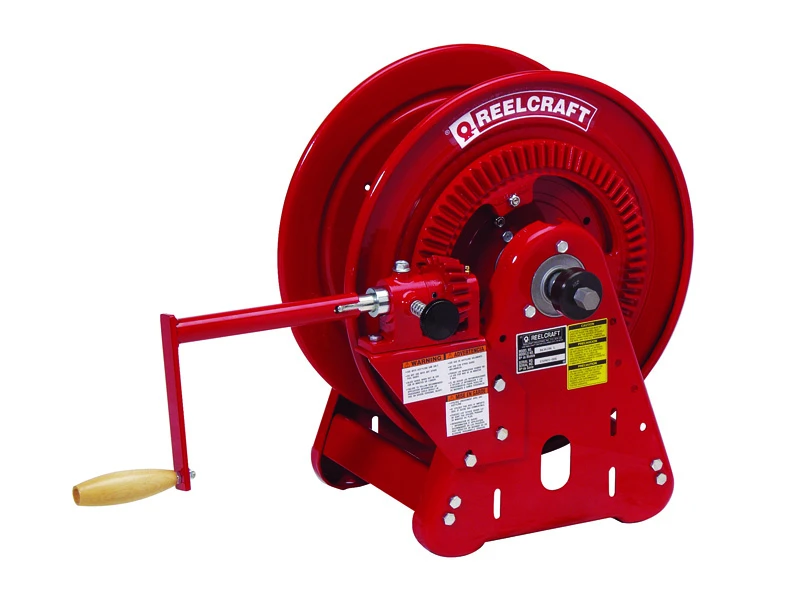

BA36112 L | - | - | - | - | 210°F | 1/4" | 250 ft. | - | - | RFQ
|
|
BA36106 L | - | - | - | - | 210°F | 1/4" | 125 ft. | - | - | RFQ
|
