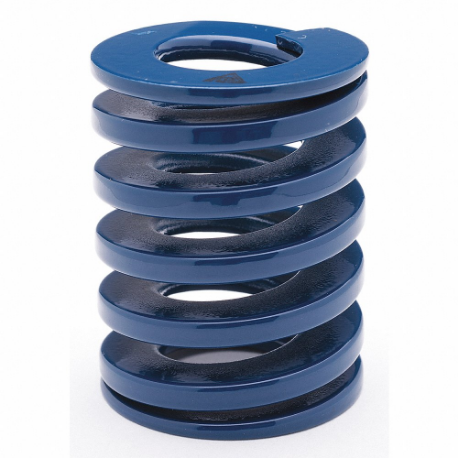

ASSOCIATED SPRING RAYMOND ASL020035 Compression Spring, 37.9 N/Mm Stiffness Rate, 119 lbf Load Capacity, Chrome Silicone
Item: CT8RRYModel: ASL020035Cross Ref: 54KC80
7 In Stock
Ships within 2 days via
10.00% off
€124.39 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Die Spring |
| Color | Blue |
| Die Spring Color | Blue |
| End Type | Closed, Grounded |
| Finish | Chromium |
| Free Length | 1 3/8" |
| Inner Dia. | 0.394" |
| Load At Max. Deflection For Long Life | 107 lbf. |
| Load At Max. Deflection For Optimal Life | 95 lbf. |
| Load Capacity | Not Rated |
| Material | Alloy Steel, Sillicon Wire |
| Max. Deflection | 0.55" |
| Max. Deflection For Long Life | 0.496" |
| Max. Deflection For Optimal Life | 0.441" |
| Max. Operating Deflection | 0.551" |
| Operating Temp. Range | Not Rated |
| Outer Dia. | 0.787" |
| Outside Diameter | 0.79" |
| Product Type | Die Spring |
| Series | JIS Series |
| Solid Length | 0.828" |
| Spring Rate | 215.3 lbs.-in. |
| Spring Rate (stiffness) | 216.42 lbs./in. |
| Spring Shape | Cylindrical |
| System Of Measurement | Imperial |
| Type | Light Duty |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 3.5 |
| Ship width (cm) | 2.79 |
| Country of Origin | US |
Product Variants
| Model | Material | Free Length | Solid Length | Outer Dia. | Inner Dia. | Spring Rate (stiffness) | Load Capacity | Finish | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ASL008010 | Alloy Steel, Sillicon Wire | 25/64" | 0.234" | 0.315" | 0.157" | 139.9 lbs./in. | Not Rated | Chromium | 10 | €70.70 | |
| ASL040100 | Chrome Silicone | 3.937" | 2.357" | 1.575" | 0.787" | 302.64 lbs./in. | Not Rated | Painted | 1 | €49.96 | |
| ASL050100 | Alloy Steel, Sillicon Wire | 3 15/16" | 2.357" | 1.969" | 0.984" | 473.37 lbs./in. | Not Rated | Chromium | 1 | €74.41 | |
| ASL060100 | Alloy Steel, Sillicon Wire | 3 15/16" | 2.357" | 2.362" | 1.181" | 680.65 lbs./in. | Not Rated | Chromium | 1 | €99.09 | |
| ASL030100 | Alloy Steel, Sillicon Wire | 3 15/16" | 2.357" | 1.181" | 0.591" | 169.02 lbs./in. | Not Rated | Chromium | 5 | €148.36 | |
| ASL018100 | Alloy Steel, Sillicon Wire | 3 15/16" | 2.357" | 0.709" | 0.354" | 59.96 lbs./in. | Not Rated | Chromium | 5 | €125.89 | |
| ASL025100 | Alloy Steel, Sillicon Wire | 3 15/16" | 2.357" | 0.984" | 0.492" | 117.63 lbs./in. | Not Rated | Chromium | 5 | €127.22 |
