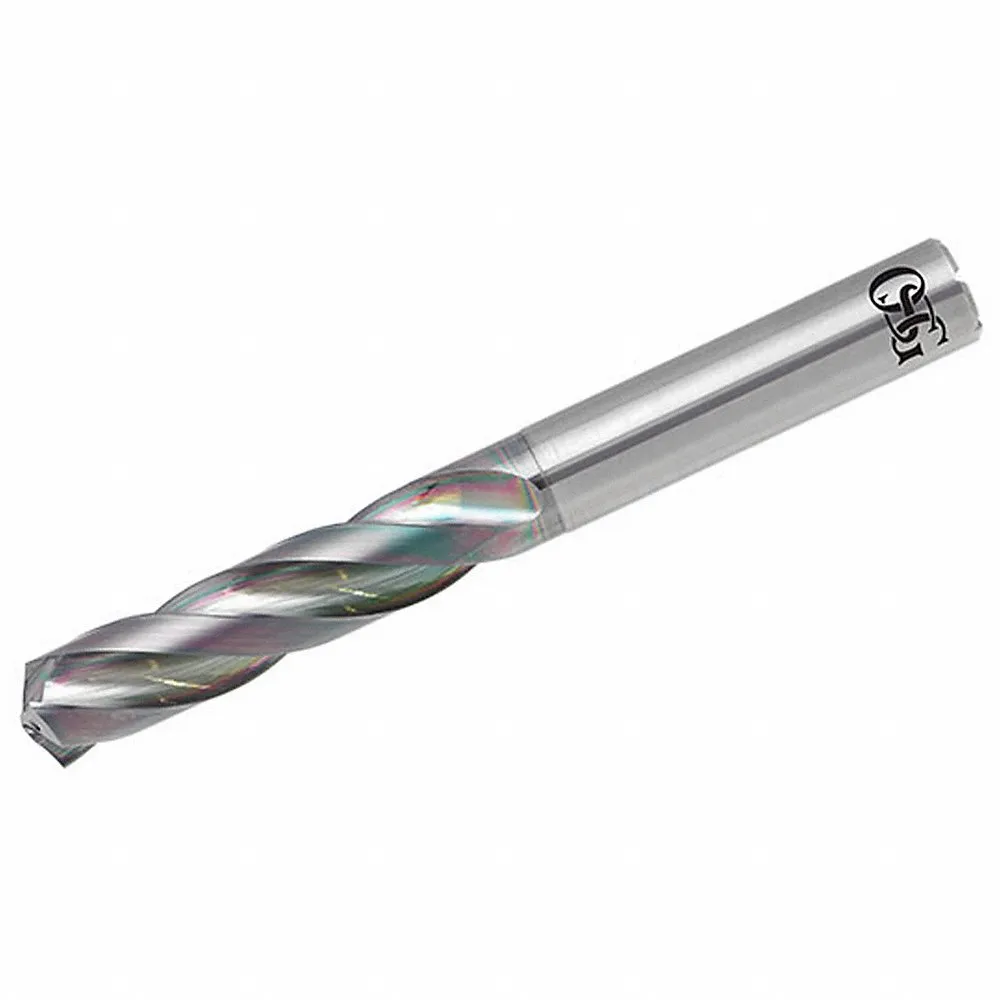

OSG 661018717 Jobber Length Drill Bit, 3/16 Size, 3.740 Inch Overall Length
Item: CT6DMWModel: 661018717Cross Ref: 796P28
7 In Stock
Ships within 2 days via
10.00% off
€228.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1874 |
| Depthdia. Ratio | 5xd |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | R Thinning Point |
| Drill Bit Size | 3/16" |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber |
| Finish | EgiAs |
| Finish - Machining | Egias |
| Flute Length | 1.692" |
| List Number | 6610 |
| Material | Carbide |
| Material - Machining | Carbide |
| Max. Drilling Depth | 43 mm |
| Number Of Flutes | 3 |
| Overall Length | 3.74" |
| Point Angle | 140° |
| Point Type | R Thinning Point |
| Primary Material Application | Alloy Steel, Carbon Steel, Die Steel |
| Primary Material Application Iso Code | K, M, P |
| Secondary Material Application | Aluminum, Hardened Steel, Nickel Alloy, Titanium |
| Secondary Material Application Iso Code | H, N, S |
| Shank Dia. | 0.188" |
| Shank Diameter | 3/16" |
| Size | 0.188" |
| System Of Measurement | Decimal Inch |
| Web Thinning | R Thinning |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Decimal Equivalent | Max. Drilling Depth | Flute Type | Shank Dia. | Flute Length | Overall Length | Drill Bit Size | Drill Bit Point Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3316480 | 0.189 | 45 mm | Slow Spiral | 6 mm | 45 mm | 88 mm | #12 | R Thinning Point | €205.30 | |
 |
8702480 | 0.189 | 44 mm | Spiral | 6 mm | 44 mm | 95 mm | #12 | X Thinning Point | €184.48 | |
|
8692480 | 0.189 | 44 mm | Spiral | 5 mm | 44 mm | 95 mm | #12 | X Thinning Point | €184.48 | |
 |
8667480 | 0.189 | 44 mm | Spiral | 5 mm | 44 mm | 95 mm | #12 | R Thinning Point | €174.07 | |
 |
HP255-1850 | 0.185 | 36 mm | Spiral | 6 mm | 36 mm | 74 mm | #13 | R Thinning Point | €102.70 | |
|
3316470 | 0.185 | 43 mm | Slow Spiral | 6 mm | 43 mm | 88 mm | #13 | R Thinning Point | €205.30 | |
|
8702470 | 0.185 | 43 mm | Spiral | 6 mm | 43 mm | 95 mm | #13 | X Thinning Point | €184.48 |
