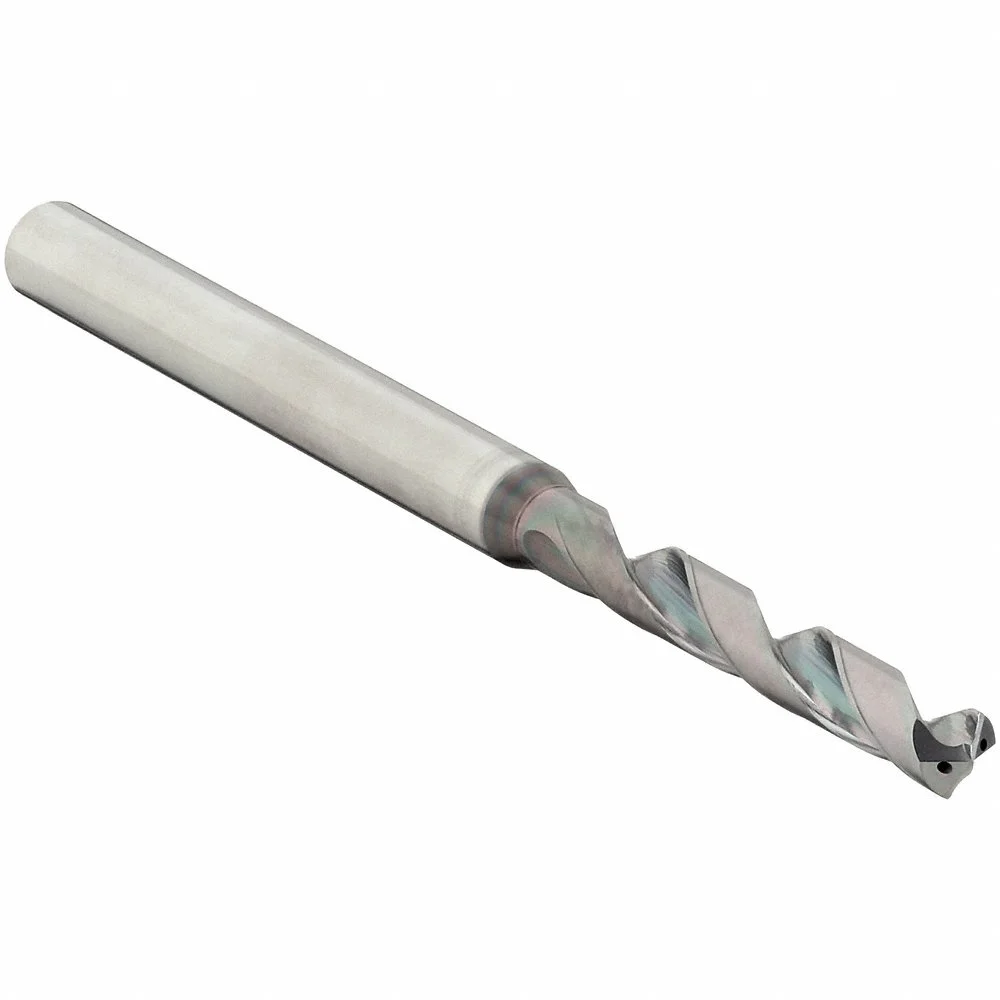

OSG 8692480 Jobber Length Drill Bit, #12 Size, 95 mm Overall Length, Carbide
Item: CT6CCJModel: 8692480Cross Ref: 405N87
7 In Stock
3.74"
0.188"
Ships within 2 days via
10.00% off
€166.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.189 |
| Depth X Dia. Ratio | 5xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Egias |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Carbide |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | X Thinning Point |
| Drill Bit Size | #12 |
| Drill Diameter Tolerance | -0.018 mm to 0 mm |
| Drill Length Class | Jobber Length |
| Finish | EgiAs |
| Finish - Machining | Egias |
| Flute Length | 44 mm |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | 30° |
| List Number | 6510 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 44 mm |
| Measurement System | Wire |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 95 mm |
| Point Angle | 140° |
| Point Type | X Thinning Point |
| Primary Material Application | Cast Iron, Hardened Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, P, S |
| Secondary Material Application | Aluminum, Nickel, Stainless Steel |
| Secondary Material Application Iso Code | M, N, S |
| Series | 6510 Series |
| Shank Dia. | 5 mm |
| Shank Length | 51 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | #12 |
| Standards | Not Rated |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Decimal Equivalent | Max. Drilling Depth | Flute Type | Shank Dia. | Flute Length | Overall Length | Drill Bit Size | Drill Bit Point Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3316480 | 0.189 | 45 mm | Slow Spiral | 6 mm | 45 mm | 88 mm | #12 | R Thinning Point | €205.30 | |
|
8702480 | 0.189 | 44 mm | Spiral | 6 mm | 44 mm | 95 mm | #12 | X Thinning Point | €184.48 | |
 |
8667480 | 0.189 | 44 mm | Spiral | 5 mm | 44 mm | 95 mm | #12 | R Thinning Point | €174.07 | |
 |
HP255-1850 | 0.185 | 36 mm | Spiral | 6 mm | 36 mm | 74 mm | #13 | R Thinning Point | €102.70 | |
|
3316470 | 0.185 | 43 mm | Slow Spiral | 6 mm | 43 mm | 88 mm | #13 | R Thinning Point | €205.30 | |
|
8702470 | 0.185 | 43 mm | Spiral | 6 mm | 43 mm | 95 mm | #13 | X Thinning Point | €184.48 | |
|
8692470 | 0.185 | 43 mm | Spiral | 5 mm | 43 mm | 95 mm | #13 | X Thinning Point | €184.48 |
