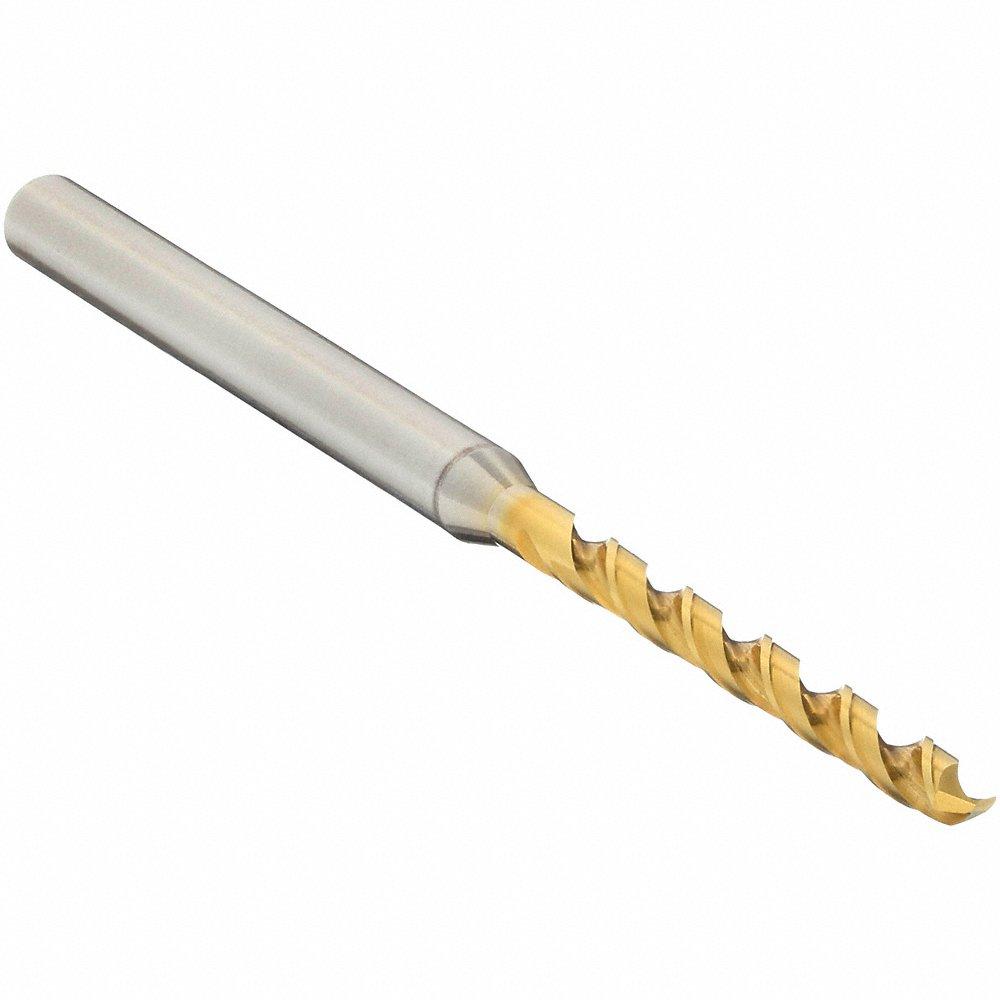

OSG 62539 Jobber Length Drill Bit, 3.90 mm Drill Bit Size, 43 mm Flute Length, 75 mm Overall Length | CT6DML 3CJF8

OSG 62539 Jobber Length Drill Bit, 3.90 mm Size, 43 mm Flute Length, 75 mm Overall Length

Item: CT6DMLModel: 62539Cross Ref: 3CJF8
7 In Stock

Ships within 2 days via

€40.70
10.00% off
€36.63 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Application For Aluminum, Carbon Steel, High Nickel Alloy, Stainless Steel And Titanium
Coolant Fed Non-Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.1535
Depth X Dia. Ratio 5xd
Drill Bit Dimension Type Metric
Drill Bit Grouping Drill Bit
Drill Bit Material High Speed Steel
Drill Bit Point Angle 130°
Drill Bit Point Type Notched Point
Drill Bit Size 3.9 mm
Drill Diameter Tolerance -0.018 mm to 0 mm
Drill Length Class Jobber Length
Finish Tin
Finish - Machining Tin
Flute Length 43 mm
Flute Type Spiral
Grade Heavy Duty
Helix Angle 40°
List Number 1600
Material High Speed Steel
Material - Machining High Speed Steel
Material Grade - Machining HIGH PERFORMANCE
Max. Drilling Depth 43 mm
No. Of Pieces 1
Number Of Flutes 2
Overall Length 75 mm
Point Angle 130°
Point Type Notched Point
Primary Material Application Aluminum, Stainless Steel, Steel
Primary Material Application Iso Code M, N, P
Secondary Material Application Medium Carbon Steel, Stainless Steel
Secondary Material Application Iso Code M, P
Series 1600 Series
Shank Length 32 mm
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 3.9 mm
Standards Not Rated
System Of Measurement Metric

Shipping Info:

Ship weight (kg) 0.05
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelDecimal EquivalentMax. Drilling DepthOverall LengthCoolant FedFlute LengthDrill Bit SizeDrill Bit Point AngleDrill Bit Point TypePrice
OSG 8598005 Jobber Drill Bit, 10.05 mm Drill Bit Size, 87 mm Flute Length, 144 mm Overall Length | CT6BZZ 34ZR54 85980050.395787 mm144 mmNon-Coolant Through87 mm---€177.27
OSG 62603 Jobber Drill Bit, 10.30 mm Drill Bit Size, 87 mm Flute Length, 107 mm Overall Length | CT6CAA 2PPD8 626030.405587 mm107 mmNon-Coolant Through87 mm10.3 mm120°S Thinning Point€189.69
OSG 8594103 Jobber Drill Bit, 10.30 mm Drill Bit Size, 87 mm Flute Length, 133 mm Overall Length | CT6CAB 34YY66 85941030.405587 mm133 mmNon-Coolant Through87 mm10.3 mm120°X Thinning Point€108.59
OSG 8594107 Jobber Drill Bit, 10.70 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CT6CAD 34YY70 85941070.421394 mm142 mmNon-Coolant Through94 mm10.7 mm120°X Thinning Point€124.81
OSG 8594126 Jobber Drill Bit, 12.60 mm Drill Bit Size, 101 mm Flute Length, 151 mm Overall Length | CT6CAG 34YY86 85941260.4961101 mm151 mmNon-Coolant Through101 mm---€209.97
OSG 8597234 Jobber Drill Bit, 2.34 mm Drill Bit Size, 27 mm Flute Length, 59 mm Overall Length | CT6CAL 34ZL47 85972340.092127 mm59 mm-27 mm2.34 mm130°S Thinning Point€38.06
OSG 8597243 Jobber Drill Bit, 2.43 mm Drill Bit Size, 30 mm Flute Length, 62 mm Overall Length | CT6CAM 34ZL56 85972430.095730 mm62 mmNon-Coolant Through30 mm2.43 mm130°S Thinning Point€38.06
