Drum Switches

Filter

<p>Drum switches are designed for manually reversing the motor direction in boat lifting systems, boring mills, milling machines, grinders, conveyor lines and machine tools. Raptor Supplies offers drum switches from brands like Dayton, Square D and Morse.</p>
SQUARE D -

Reversing Drum Switch

SQUARE D 2601AG2A
StyleModelHp @ 1 Phase - 240vHp @ 3 Phase - 230vHp @ 3 Phase - 240vTypeNumber Of PolesHandle MaterialHp @ 3 Phase - 460-575vHp @ 3 Phase - 460vPrice
A2601AG22 hp2 hp2 hpA3Plastic2 hp2 hp€369.37
A2601AW22 hp2 hp2 hpA3Plastic2 hp2 hp€967.54
A2601BG13 hp5 hp5 hpB3Plastic--€967.33
DAYTON -

Maintained Reversing Plastic Drum Switches

Dayton reversing drum switches are designed to manually reverse the direction in which a motor is turning. These CSA certified and UL listed switches feature maintained reversing action and have plastic handle material. Choose from a range of these drum switches, available in 4.5, 5.5 and 5.75 inch heights.

DAYTON 2X441A
DAYTON 4UYE8B
StyleModelHandle MaterialAction TypeNumber Of PolesHp @ 1 Phase - 115vHp @ 1 Phase - 240vHp @ 115vdcHp @ 230vdcHp @ 3 Phase - 230vPrice
A2X441PlasticMaintained Reversing31 1/2 hp2 hp1/4 hp1/4 hp2 hp€165.96
B4UYE8SteelMomentary Reversing31 1/2 hp2 hp1/4 hp1/4 hp2 hp-
RFQ
SQUARE D -

Switch Drum Reversing

Switch Drum Reversing
ModelItemPrice (ex. VAT)
2601BW1AF9FEA€1,316.94
DAYTON -

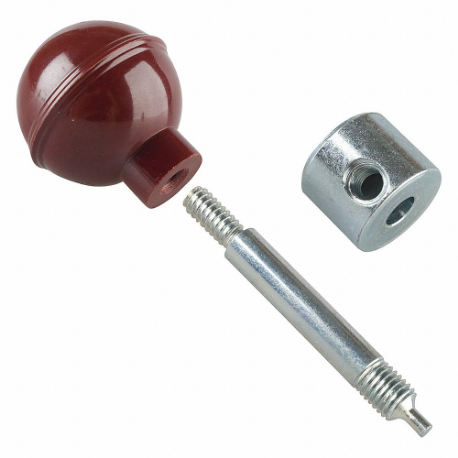

Steel Handle Assembly

Steel Handle Assembly
ModelItemPrice (ex. VAT)
56LN53CR2WYX€28.40
SQUARE D -

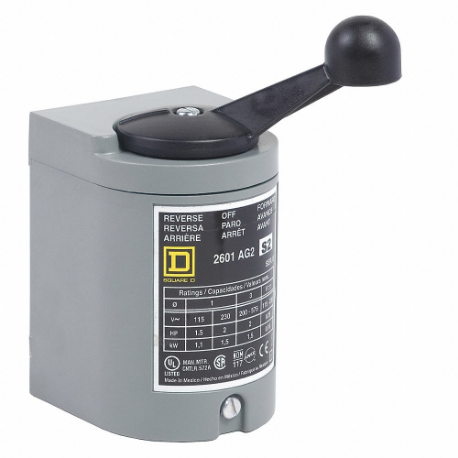

Drum Switch 600Vac 2Hp A +Options

Drum Switch 600Vac 2Hp A +Options
ModelItemPrice (ex. VAT)
2601AG2S2CV4QGL€333.01

Drum Switches

Drum switches are designed for manually reversing the motor direction in boat lifting systems, boring mills, milling machines, grinders, conveyor lines and machine tools. Raptor Supplies offers a wide array of Dayton and Square D drum switches featuring maintained / momentary reversing action for retaining the lever position, unless forcefully actuated or pressed to return to the original position. These units further come equipped with NEMA 1- / 4-rated enclosure for protection against accidental impacts & external contaminations and a plastic / steel handle for maximum user convenience over prolonged use.

Working Mechanism

  • Drum switches are manual switches that allow the user to manually reverse the direction in which a motor is turning.
  • The switch contacts are opened and closed manually by moving the drum switch from the Off position to the forward / reverse position.

Frequently Asked Questions

How is a drum switch converted from maintained to momentary operation?

Drum switches are field convertible from maintained to momentary operation by removing the handle and handle screw, turning the shaft and replacing both the handle & handle screw.

What type of enclosures are used by these drum switches?

These switches feature NEMA 1 / 4 enclosures for protection against accidental impacts & external contamination.

Is interlocking required when using a drum switch?

No, interlocking is not required, because the drum switch operates mechanically.
