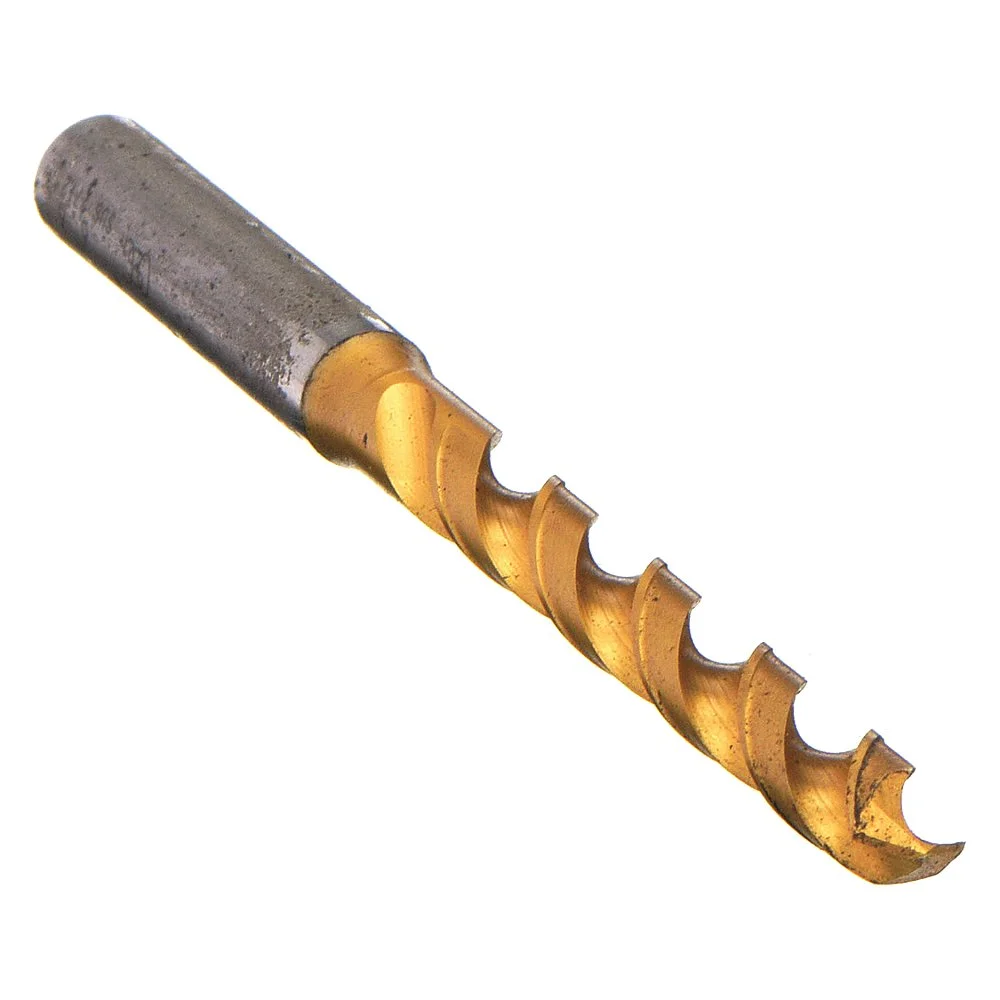

OSG 62603 Jobber Drill Bit, 10.30 mm Drill Bit Size, 87 mm Flute Length, 107 mm Overall Length
Item: CT6CAAModel: 62603Cross Ref: 2PPD8
7 In Stock
0.405"
0.47"
Ships within 2 days via
10.00% off
€170.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Application | For Aluminum, Carbon Steel, High Nickel Alloy, Stainless Steel And Titanium |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4055 |
| Depth X Dia. Ratio | 5xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 120° |
| Drill Bit Point Type | S Thinning Point |
| Drill Bit Size | 10.3 mm |
| Flute Length | 87 mm |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 40° |
| List Number | 1600 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Max. Drilling Depth | 87 mm |
| No. Of Pieces | 1 |
| Overall Length | 107 mm |
| Point Angle | 120° |
| Point Type | S Thinning Point |
| Series | EX-SUS-GOLD Series |
| Shank Length | 20 mm |
| Size | 10.3 mm |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Decimal Equivalent | Max. Drilling Depth | Overall Length | Coolant Fed | Flute Length | Drill Bit Size | Drill Bit Point Angle | Drill Bit Point Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8598005 | 0.3957 | 87 mm | 144 mm | Non-Coolant Through | 87 mm | - | - | - | €177.27 | |
| 8594103 | 0.4055 | 87 mm | 133 mm | Non-Coolant Through | 87 mm | 10.3 mm | 120° | X Thinning Point | €108.59 | |
| 8594107 | 0.4213 | 94 mm | 142 mm | Non-Coolant Through | 94 mm | 10.7 mm | 120° | X Thinning Point | €124.81 | |
| 8594126 | 0.4961 | 101 mm | 151 mm | Non-Coolant Through | 101 mm | - | - | - | €209.97 | |
| 8597234 | 0.0921 | 27 mm | 59 mm | - | 27 mm | 2.34 mm | 130° | S Thinning Point | €38.06 | |
| 8597243 | 0.0957 | 30 mm | 62 mm | Non-Coolant Through | 30 mm | 2.43 mm | 130° | S Thinning Point | €38.06 | |
| 8597247 | 0.0972 | 30 mm | 62 mm | Non-Coolant Through | 30 mm | 2.47 mm | 130° | S Thinning Point | €38.06 |
