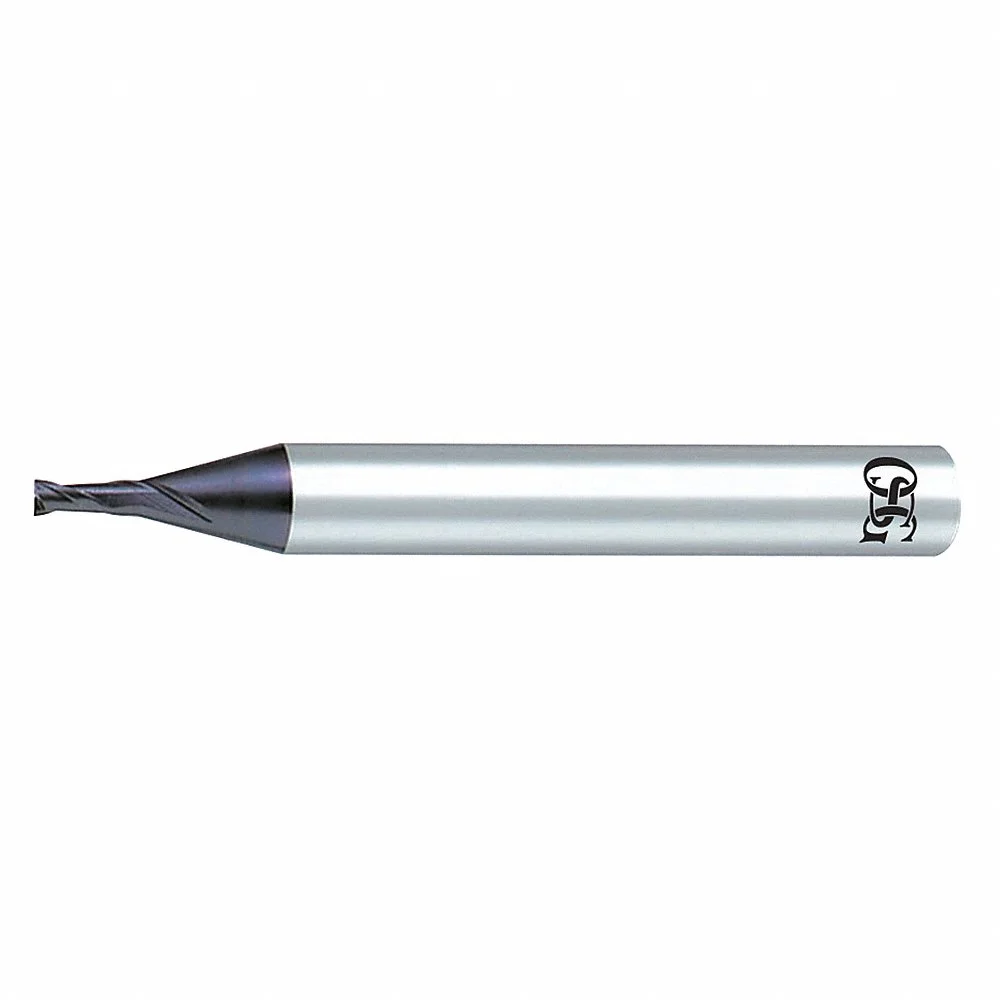

OSG 37700015 Corner Radius End Mill, Wxl Finish, 2 Flutes, 5 mm Milling Dia, Straight
Item: CT4YALModel: 37700015Cross Ref: 35AW97
7 In Stock
0.196"
0.236"
Ships within 2 days via
10.00% off
€89.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Corner Radius End Mill |
| Cast Iron (k) Compatibility | Yes |
| Corner Radius | 0.2 mm |
| Cutting Direction | Right Hand |
| Cutting Length | 13 mm |
| Cutting Type | Center Cutting |
| Dimension Type | Metric |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Radius |
| End Type | Single End |
| Finish | WXL |
| Finish - Machining | WXL |
| Grade | General Purpose |
| Hardened Compatibility | No |
| Helix Angle | 30° |
| List Number | 3770 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 5 mm |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 2 |
| Overall Length | 80 mm |
| Primary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, K, M, P |
| Shank Dia. | 6 mm |
| Shank Type | End Mill , Straight |
| Shank Type - Machining | Straight |
| Single End/double End | Single End |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Milling Dia. | Helix Angle | Overall Length | Corner Radius | Shank Dia. | List Number | Number Of Flutes | Length Of Cut | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HP432-5006 | 1/2" | 35° | 3" | 0.06" | 1/2" | HP432 | 2 | - | €191.51 | |
| HP432-2502 | 1/4" | 35° | 2 1/2" | 0.02" | 1/4" | HP432 | 2 | - | €70.08 | |
| HP432-1251 | 1/8" | 35° | 1 1/2" | 0.015" | 1/8" | - | 2 | - | €35.45 | |
| HP432-1872 | 3/16" | 35° | 2" | 0.02" | 3/16" | HP432 | 2 | - | €53.09 | |
| HP432-7512 | 3/4" | 35° | 4" | 1/8" | 3/4" | HP432 | 2 | - | €509.30 | |
| HP432-7509 | 3/4" | 35° | 4" | 0.09" | 3/4" | HP432 | 2 | - | €509.30 | |
| HP432-7506 | 3/4" | 35° | 4" | 0.06" | 3/4" | HP432 | 2 | - | €509.30 |
